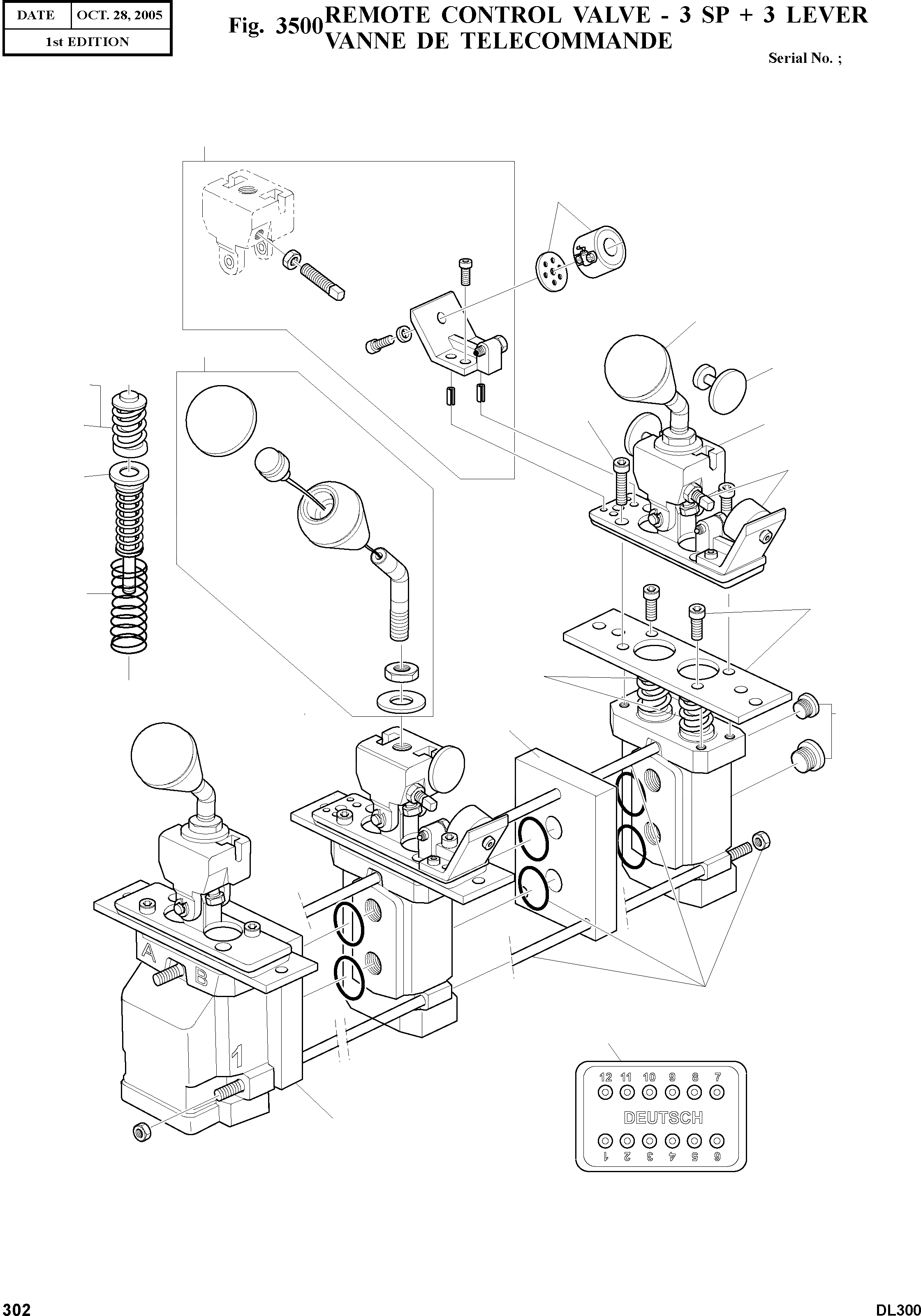

Запчасти Doosan Daewoo REMOTE CONTROL VALVE - 3 SP + 3 LEVER HYDRAULIC PARTS

-

K1003380

VALVE;JOYSTICK

desc: VANNE PILOTE

1шт.

1

K9002716

PLATE;MOUNTING

desc: PLAQUE

3шт.

2

K9002717

BRACKET KIT;MAGENT

desc: SUPPORT

6шт.

3

S2203161

BOLT;SOCKET

desc: BOULON A 6 PANS CREUX

6шт.

5

K9002719

BEARING PLATE/LEVER LINK ASS'Y

desc: PLAQUE

3шт.

6

K9002720

PLATE;ANCHOR

desc: PLAQUE

3шт.

7

K9002731

HANDEL KIT

desc: POIGNEE

1шт.

8

K9002718

MAGENT

desc: AIMANT

4шт.

9

K9002721

SWITCH;HANDLE

desc: RONDELLE ELASTIQUE

2шт.

10

K9002722

PIN;PUSH

desc: GOUPILLE

6шт.

10-1

K9002723

SEAL KIT;PUSH PIN

desc: . KIT DE REPARATION

1шт.

12

K9002724

SPRING

desc: RESSORT

4шт.

13

K9002732

SPRING

desc: RESSORT

2шт.

14

K9002726

SPRING;RETURN

desc: RESSORT

6шт.

15

K9002727

BLOCK;SPACE

desc: BLOC

2шт.

16

K9002733

ROD KIT;TIE

desc: KIT DE ROD

1шт.

17

K9002729

PLUG KIT

desc: BOUCHON

1шт.

18

K9002730

CONNECTOR KIT;DEUTSCH

desc: BIELLE

1шт.
