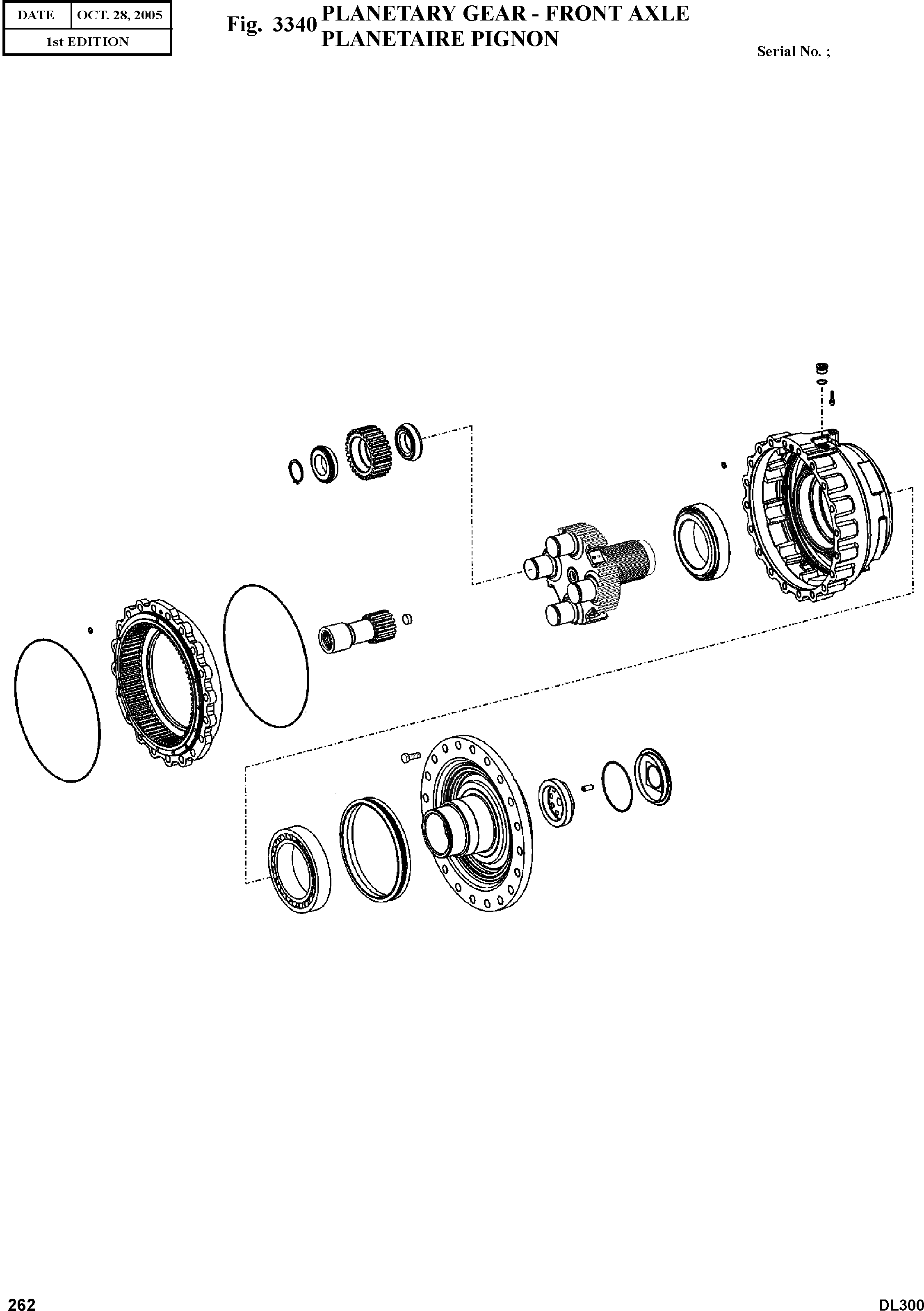

/ / / / / PLANETARY GEAR - FRONT AXLE
Запчасти Doosan Daewoo PLANETARY GEAR - FRONT AXLE HYDRAULIC PARTS
281
282
20
252
160
10
250
270
30
80
180
50
40
210
150
30
50
90
120
400
130
100
110
60
70
10
K9000340
HOUSING
desc: CARTER
2шт.
20
K9000032
PLUG
desc: BOUCHON
2шт.
30
K9000179
O-RING
desc: JOINT TORIQUE
4шт.
40
K9000334
GEAR;RING
desc: PIGNON
2шт.
50
K9000176
O-RING
desc: JOINT TORIQUE
4шт.
60
K9000240
SEAL;SLIDE RING
desc: JOINT
2шт.
70
K9000324
BEARING;TAPPER ROLLER
desc: ROULEMENT
2шт.
80
K9000323
BEARING;TAPPER ROLLER
desc: ROULEMENT
2шт.
90
K9002863
SHAFT;OUTPUT
desc: ARBRE
2шт.
100
K9000292
NUT;ADJUSTING
desc: ECROU
2шт.
110
K9000173
PIN;SLOT
desc: GOUPILLE
2шт.
120
K9000286
COVER
desc: COUVERCLE
2шт.
130
2.180-00284
O-RING
desc: JOINT TORIQUE
2шт.
150
K9000337
SHAFT;SUN GEAR
desc: ARBRE
2шт.
160
K9000336
GEAR;PLANET
desc: PIGNON
8шт.
180
K9000341
CARRIER;PLANET
desc: PORTEUR DE PLANETE
2шт.
210
K9000277
BOLT;STOP
desc: BOULON
2шт.
250
K9000321
RING;BEARING INNER
desc: ANNEAU
8шт.
252
K9000322
RING;BEARING INNER
desc: ANNEAU
8шт.
270
K9000171
RING;RETAINING
desc: ANNEAU DE SOUTIEN
8шт.
281
K9000164
SCREW;PLUG
desc: VIS
2шт.
282
1.180-00137
O-RING
desc: JOINT TORIQUE
2шт.
400
K9002864
BOLT;WHEEL
desc: BOULON A 6 PANS
32шт.
