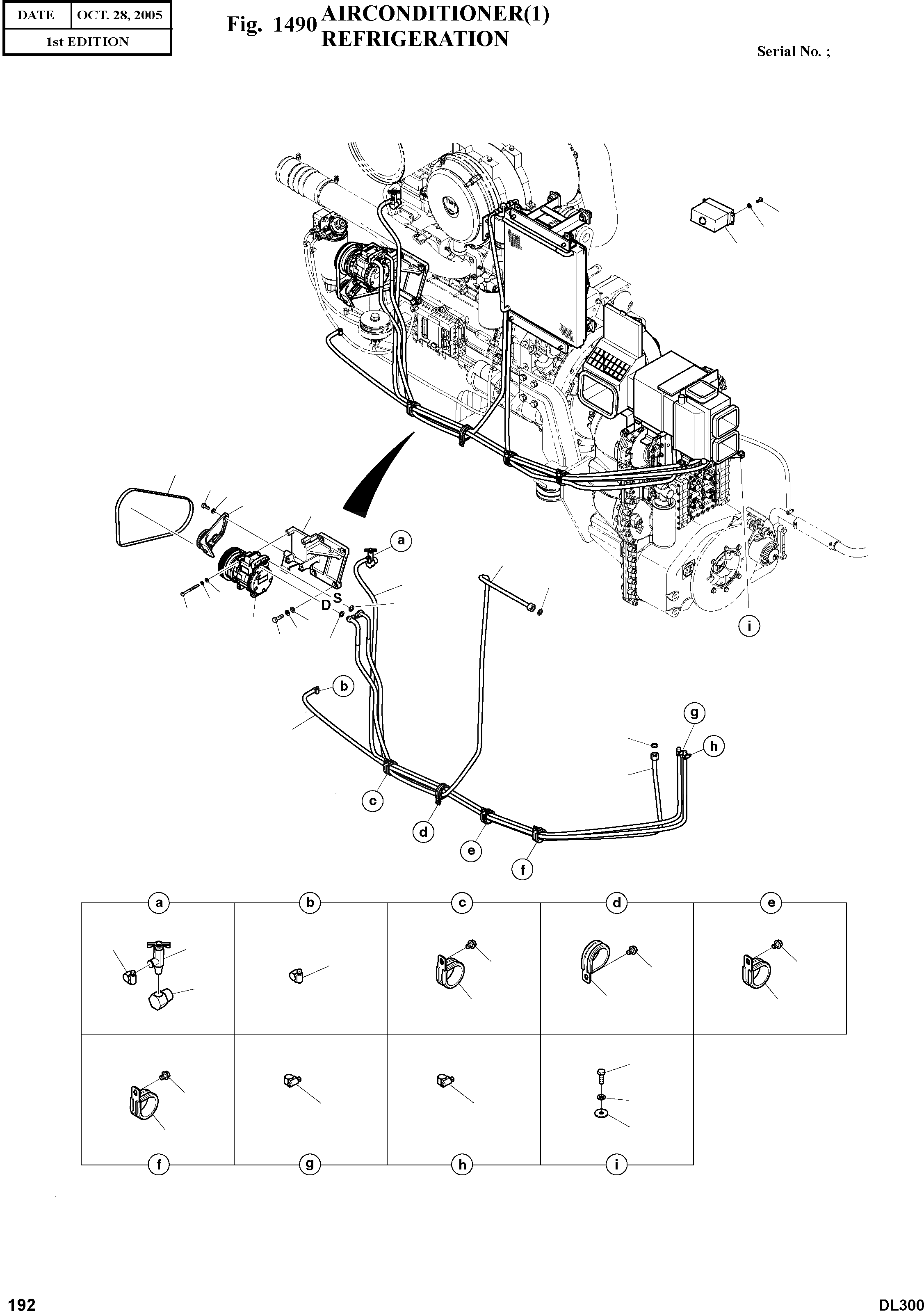

Запчасти Doosan Daewoo AIRCONDITIONER(1) BODY PARTS

-

K1010958A

AIRCONDITIONER(1)

SC: D

-2шт.

1

K1010519

CONTROLLER;AIR CON

desc: CONTROLEUR

1шт.

2

S3450583

SCREW

desc: VIS

4шт.

3

S5000113

WASHER;PLAIN

desc: RONDELLE PLATE

4шт.

4

195-02803A

BRACKET;COMPRESSOR

desc: SUPPORT

1шт.

5

S5010713

WASHER;PLAIN

desc: RONDELLE

4шт.

6

S5102703

WASHER;SPRING

desc: RONDELLE ELASTIQUE M12

4шт.

7

S0786453

BOLT

desc: BOULON A 6 PANS

4шт.

8

2208-6013B

COMPRESSOR

desc: COMPRESSEUR

1шт.

9

S0557153

BOLT

desc: BOULON A 6 PANS

4шт.

10

S5010513

WASHER;PLAIN

desc: RONDELLE M8

4шт.

11

S5102503

WASHER;SPRING

desc: RONDELLE ELASTIQUE M8

4шт.

12

2107-6006

PULLEY ASS'Y

desc: ENSEMBLE POULIE FOU

1шт.

13

S0512053

BOLT

desc: BOULON A 6 PANS

2шт.

14

S5102603

WASHER;SPRING

desc: RONDELLE ELASTIQUE M10

2шт.

15

2106-1019D25

BELT;AIRCON

desc: COURROIE

1шт.

16

K1008360

HOSE;DISCHARGE

desc: TUYAU FLEXIBLE

1шт.

16-1

2180-6089

O-RING(CONDENSER)

desc: . JOINT TORIQUE

1шт.

16-2

2180-6088

O-RING(COMPRESSOR)

desc: . JOINT TORIQUE

1шт.

17

K1008361A

HOSE;SUCTION

desc: TUYAU D'ASPIRATION

1шт.

17-1

2180-6086

O-RING(COMPRESSOR)

desc: . JOINT TORIQUE

1шт.

17-2

2180-6087

O-RING(EVAPORATOR)

desc: . JOINT TORIQUE

1шт.

33

S0509053

BOLT

desc: BOULON A 6 PANS

6шт.

34

S5102503

WASHER;SPRING

desc: RONDELLE ELASTIQUE M8

6шт.

35

2114-1058D29

WASHER

desc: RONDELLE

6шт.

36

2185-1308D5

HOSE;RUBBER

desc: TUYAU FLEXIBLE

1шт.

37

2185-1308D10

HOSE;RUBBER

desc: FLEXIBLE CAOUTCHOUC

1шт.

38

2186-9003

VALVE

desc: VANNE

1шт.

39

2181-1159

ADAPTER

desc: RACCORD ADAPTATEUR

1шт.

40

S8450016

CLAMP

desc: COLLIER

4шт.

41

124-00208D7

CLIP

desc: ATTACHE

4шт.

42

K1001029

BOLT

desc: BOULON A 6 PANS

4шт.
