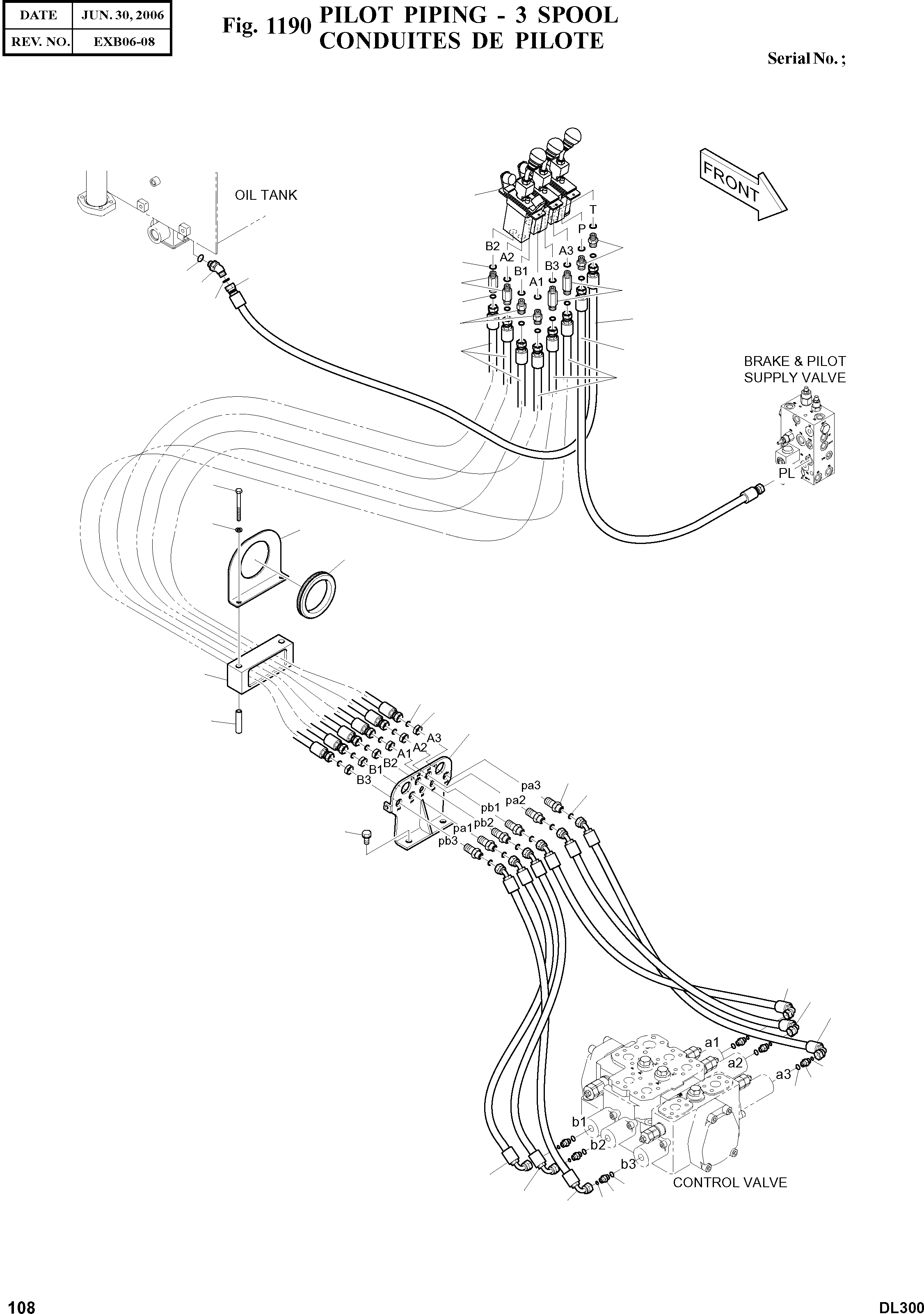

Запчасти Doosan Daewoo PILOT PIPING - 3 SPOOL BODY PARTS

-

K1007286A

PILOT PIPING - 3 SPOOL

SC: D

-2шт.

1

K1003380

VALVE;JOYSTICK

desc: VANNE

1шт.

2

K1007173A

BRACKET

desc: SUPPORT

1шт.

3

K1010139

RUBBER

desc: CAOUTCHOUC

1шт.

4

K1013313

BRACKET

desc: SUPPORT

1шт.

5

K1010903

SPACER

desc: DOUILLE D'ECARTEMENT

2шт.

6

2160-1004D57

GROMMET

desc: MANCHON CAOUTCHOUC

1шт.

7

DS2415002

ADAPTER

desc: ADAPTEUR

6шт.

8

DS0301032

NUT

desc: ECROU

6шт.

9

DS2232066

ADAPTER

desc: RACCORD ADAPTATEUR

4шт.

10

DS2232067

ADAPTER

desc: RACCORD ADAPTATEUR

4шт.

11

DS2232038

ADAPTER

desc: RACCORD ADAPTATEUR

6шт.

12

2181-2816D5

ELBOW

desc: COUDE

1шт.

13

S8030061

O-RING

desc: JOINT TORIQUE

28шт.

14

S8000141

O-RING

desc: JOINT TORIQUE

7шт.

15

S8040061

O-RING

desc: JOINT TORIQUE

8шт.

16

S5102503

WASHER;SPRING

desc: RONDELLE ELASTIQUE M8

2шт.

17

DS0025021

BOLT

desc: BOULON A 6 PANS

2шт.

18

S0557266

BOLT

desc: BOULON A 6 PANS

2шт.

19

DS2021112

HOSE

desc: TUYAU FLEXIBLE

1шт.

20

DS2021116

HOSE

desc: TUYAU FLEXIBLE

1шт.

21

DS2021117

HOSE

desc: TUYAU FLEXIBLE

1шт.

22

DS2021118

HOSE

desc: TUYAU FLEXIBLE

1шт.

23

DS2021119

HOSE

desc: TUYAU FLEXIBLE

1шт.

24

DS2021110

HOSE

desc: TUYAU FLEXIBLE

1шт.

25

DS2011429

HOSE

desc: TUYAU FLEXIBLE

6шт.

26

DS2011059

HOSE

desc: TUYAU FLEXIBLE

1шт.

27

DS2011022

HOSE

desc: TUYAU FLEXIBLE

1шт.
