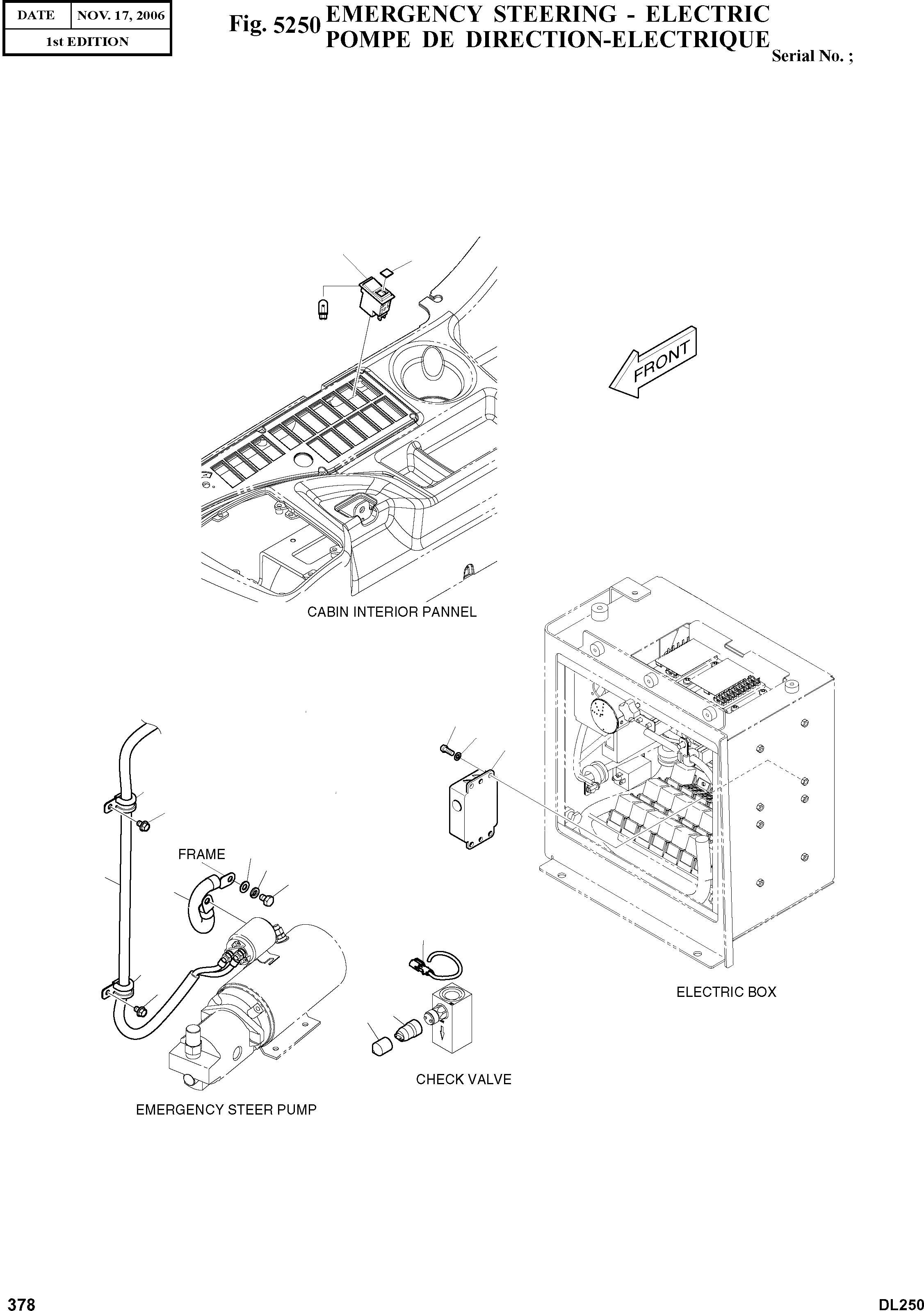

Запчасти Doosan Daewoo EMERGENCY STEERING - ELECTRIC OPTION PARTS

-

K1015705

EMERGENCY STEERING - ELECTRIC

SC: D

-2шт.

1

2549-9110

SWITCH;SEESAW

desc: INTERRUPTEUR

1шт.

1-1

K9000353

LAMP;PILOT

desc: . LAMPE

1шт.

2

2190-2036D21

INSERT;EMERGENCY STEERING

desc: INSERTION

1шт.

3

537-00039B

TIMER;EMG STEERING

desc: TIMER

1шт.

4

S3450943

SCREW

desc: VIS

2шт.

5

S5102303

WASHER;SPRING

desc: RONDELLE ELASTIQUE

2шт.

6

2553-1275D91

CABLE;EMER STEERING

desc: DIRECTION DE CABLE;EMER

1шт.

7

2553-1275D82

CABLE;BATT RY-STARTER

desc: CABLE RELAIS DE BATTERIE-DEMARREUR

1шт.

8

S0511653

BOLT

desc: BOULON A 6 PANS

1шт.

9

S5102603

WASHER;SPRING

desc: RONDELLE ELASTIQUE

1шт.

10

S5010613

WASHER;PLAIN

desc: RONDELLE PLATE

1шт.

11

2530-1400

HARNESS;PRESS SWITCH

desc: FAISCEAU

1шт.

12

S987031H

CAP

desc: BOUCHON

1шт.

13

530-00067

HARNESS;STOP LAMP SWITCH

desc: FAISCEAU

1шт.

14

124-00208D3

CLIP

desc: ATTACHE

2шт.

15

K1001029

BOLT

desc: BOULON A 6 PANS

2шт.
