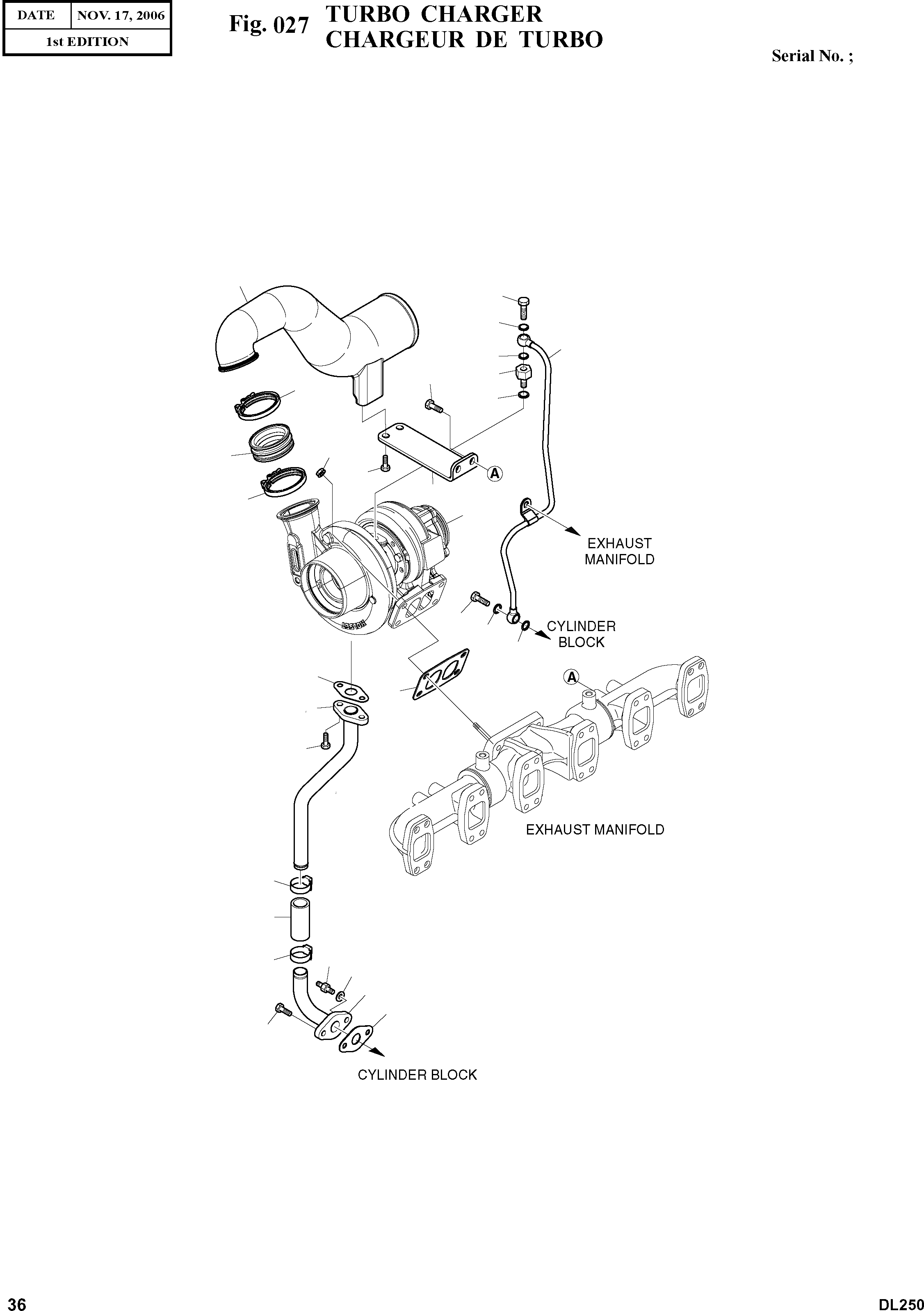

Запчасти Doosan Daewoo TURBO CHARGER ENGINE PARTS

1

65.09100-7114

TURBOCHARGER ASS'Y

desc: TURBOCOMPRESSEUR

1шт.

2

65.09901-0018A

GASKET

desc: JOINT

1шт.

3

65.90535-0001

NUT

desc: ECROU 6 PANS M8

4шт.

4

65.98130-0200A

ADAPTER

desc: ADAPTEUR

1шт.

5

65.05701-5689

PIPE;OIL

desc: CONDUITES DE HUILE

1шт.

6

06.56190-0709

SEAL;RING

desc: BAGUE D'ETANCHEITE

1шт.

7

06.78144-2403

HOLLOW SCREW M12X1.5

desc: VIS CREUSE

1шт.

8

06.56190-0704

SEAL RING A12X18

desc: BAGUE D'ETANCHEITE A16X20

2шт.

9

06.78144-2403

HOLLOW SCREW M12X1.5

desc: VIS CREUSE

1шт.

10

06.56190-0704

SEAL RING A12X18

desc: BAGUE D'ETANCHEITE A16X20

2шт.

11

65.05701-5690

PIPE;OIL

desc: CONDUITES DE HUILE

1шт.

12

65.05701-5569

PIPE;OIL

desc: CONDUITES DE HUILE

1шт.

13

65.96301-0327A

HOSE;RUBBER

desc: TUYAU FLEXIBLE

1шт.

14

06.67020-0104

CLAMP;HOSE

desc: COLLIER

2шт.

15

65.96601-0067

GASKET;T/C OIL RETURN

desc: JOINT

1шт.

16

65.96601-0052

GASKET;PIPE-BLOCK

desc: JOINT

1шт.

17

06.01913-3114

BOLT;STUD

desc: GOUJON

3шт.

18

65.90201-0075

BOLT;SPACER

desc: BOUCHON

1шт.

19

06.16731-2107

WASHER

desc: CALE

1шт.

30

65.09411-5114

PIPE;INLET

desc: TUYAU

1шт.

31

65.96301-6003

HOSE;RUBBER

desc: TUYAU FLEXIBLE

1шт.

32

65.97450-5003

CLAMP

desc: COLLIER

2шт.

33

65.09440-0065

BRACKET

desc: SUPPORT

1шт.

34

06.01923-3215

BOLT

desc: BOULON A 6 PANS

4шт.
