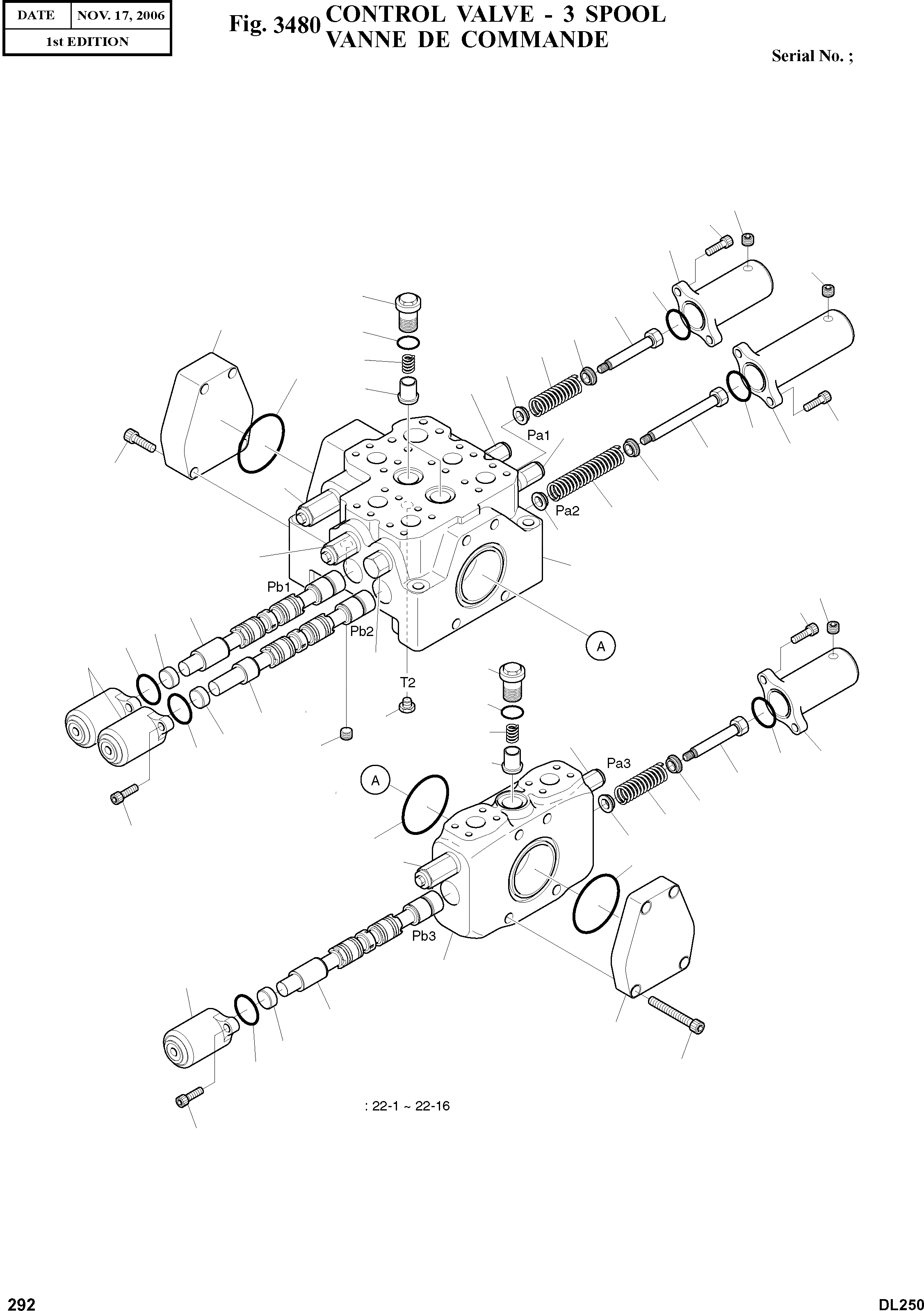

Запчасти Doosan Daewoo CONTROL VALVE - 3 SPOOL CONTROL VALVE PIPING - 3 SPOOL

-

K1003041A

CONTROL VALVE-3 SPOOL

desc: TIROIR DE COMMANDE

1шт.

1

K9001088

HOUSING

SC: D

1шт.

2

K9001089

SPOOL

SC: D

1шт.

3

K9001090

SPOOL

SC: D

1шт.

4

K9001091

SEAT;SPRING

desc: SIEGE

4шт.

5

K9001092

SPRING

desc: RESSORT

1шт.

6

K9001093

SPRING

desc: RESSORT

1шт.

7

K9001094

SPOOL END

desc: SPOOL

1шт.

8

K9001095

SPOOL END

desc: SPOOL

1шт.

9

K9001096

CAP

desc: BOUCHON

1шт.

10

K9001097

CAP

desc: BOUCHON

1шт.

11

K9001098

CAP

desc: BOUCHON

2шт.

12

S8010400

O-RING

desc: JOINT TORIQUE G30

4шт.

13

S2212161

BOLT;SOCKET

desc: BOULON

8шт.

14

K9001099

SPACER

desc: BAGUE D'ECARTEMENT

2шт.

15

K9001100

COVER

desc: COUVERCLE

1шт.

16

2180-1216D134

O-RING

desc: JOINT TORIQUE G30

3шт.

17

S2218861

BOLT;SOCKET

desc: BOULON

4шт.

18

K9001101

PLUG

desc: BOUCHON

2шт.

19

K9001102

SPRING

desc: RESSORT

2шт.

20

K9001103

POPPET

desc: SOUPAPE SOULEVANTE

2шт.

21

180-00400

O-RING

desc: JOINT TORIQUE G30

2шт.

22

K9001104

OPTION BLOCK ASS'Y

desc: BLOC DE OPTION

1шт.

22-1

K9001105

HOUSING

SC: D

1шт.

22-2

K9001106

SPOOL

SC: D

1шт.

22-4

K9001101

PLUG

desc: . BOUCHON

1шт.

22-5

K9001103

POPPET

desc: . SOUPAPE SOULEVANTE

1шт.

22-6

K9001102

SPRING

desc: . RESSORT

1шт.

22-7

180-00400

O-RING

desc: . JOINT TORIQUE

1шт.

22-8

K9001098

CAP

desc: . CHAPEAU

1шт.

22-9

K9001096

CAP

desc: . CHAPEAU

1шт.

22-10

K9001091

SEAT;SPRING

desc: . SIEGE

2шт.

22-11

K9001092

SPRING

desc: . RESSORT

1шт.

22-12

K9001094

SPOOL END

desc: . SPOOL

1шт.

22-13

S8010400

O-RING

desc: . JOINT TORIQUE

2шт.

22-14

S2212161

BOLT;SOCKET

desc: . BOULON

4шт.

22-15

2181-1116D1

PLUG

desc: . BOUCHON

1шт.

22-16

K9001099

SPACER

desc: . ENTRETOISE

1шт.

23

2181-1116D4

PLUG

desc: BOUCHON

1шт.

24

2181-1116D1

PLUG

desc: BOUCHON

2шт.

27

K9001107

RELIEF VALVE ASS'Y

desc: SOULAGEMENT VANNE

3шт.

28

K9001108

RELIEF VALVE ASS'Y

desc: SOULAGEMENT VANNE

1шт.

29

K9001109

RELIEF VALVE ASS'Y

desc: SOULAGEMENT VANNE

1шт.

30

K9001110

RELIEF VALVE ASS'Y

desc: SOULAGEMENT VANNE

1шт.

31

K9001111

ANTI-CAVITATION VALVE

desc: SOUPAPE DE SECURITE

1шт.

32

K9001112

COVER

desc: COUVERCLE

1шт.

33

K9001113

PLUG ASS'Y

desc: BOUCHON

1шт.

34

S2220361

BOLT;SOCKET

desc: BOULON

4шт.
