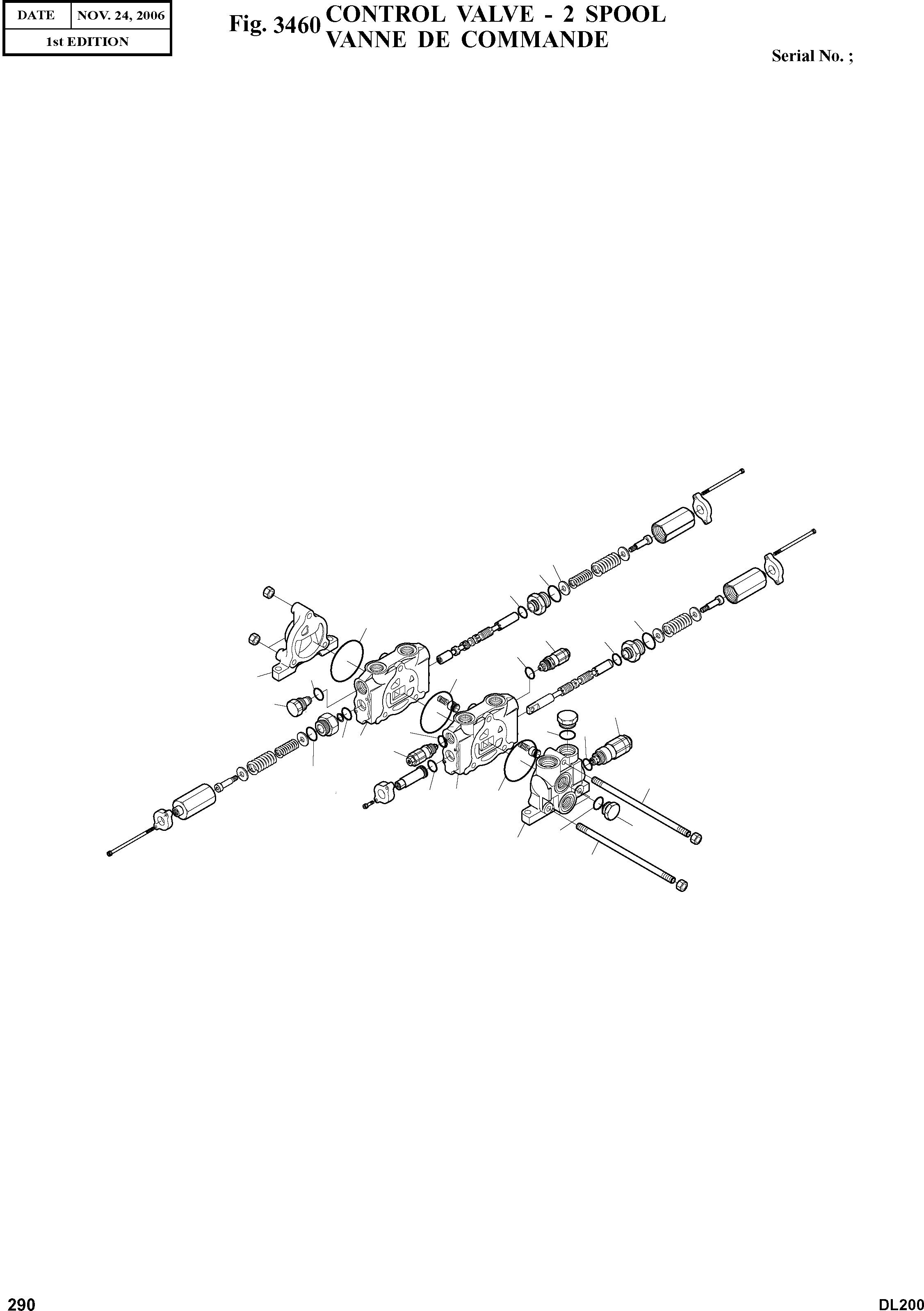

Запчасти Doosan Daewoo CONTROL VALVE - 2 SPOOL HYDRAULIC PARTS

-

420-00144

CONTROL VALVE(2-SPOOL)

desc: TIROIR DE COMMANDE

1шт.

1

2.410-00069

INLET SECTION

desc: BLOC

1шт.

2

2.410-00124

WORK SECTION-OPTION

desc: BLOC

1шт.

4

2.410-00123

WORK SECTION-BOOM

desc: BLOC

1шт.

5

2.410-00074

OUTLET SECTION

desc: BLOC

1шт.

6

2.428-00058

TIE ROD

desc: TIGE

3шт.

7

2.421-00175

MAIN RELIEF VALVE

desc: ENSEMBLE CLAPET DE RECHARGE

1шт.

8

2.180-00195

O-RING

desc: JOINT TORIQUE

1шт.

9

2.421-00199

OVER LOAD RELIEF VALVE

desc: ENSEMBLE CLAPET DE DECHARGE

2шт.

10

2.180-00196

O-RING

desc: JOINT TORIQUE

4шт.

11

2.421-00062

ANTI CAVITATION VALVE

desc: ENSEMBLE CLAPET DE DECHARGE

1шт.

12

2.180-00197

O-RING

desc: JOINT TORIQUE

1шт.

13

2.181-00104

PLUG

desc: BOUCHONE

1шт.

14

-

O-RING

SC: D

4шт.

15

-

O-RING

SC: D

3шт.

16

-

O-RING

SC: D

3шт.

17

-

RING;BACK UP

SC: D

1шт.

*

2.180-00737

SEAL KIT;CONTROL VALVE

desc: KIT DE REPARATION

1шт.
