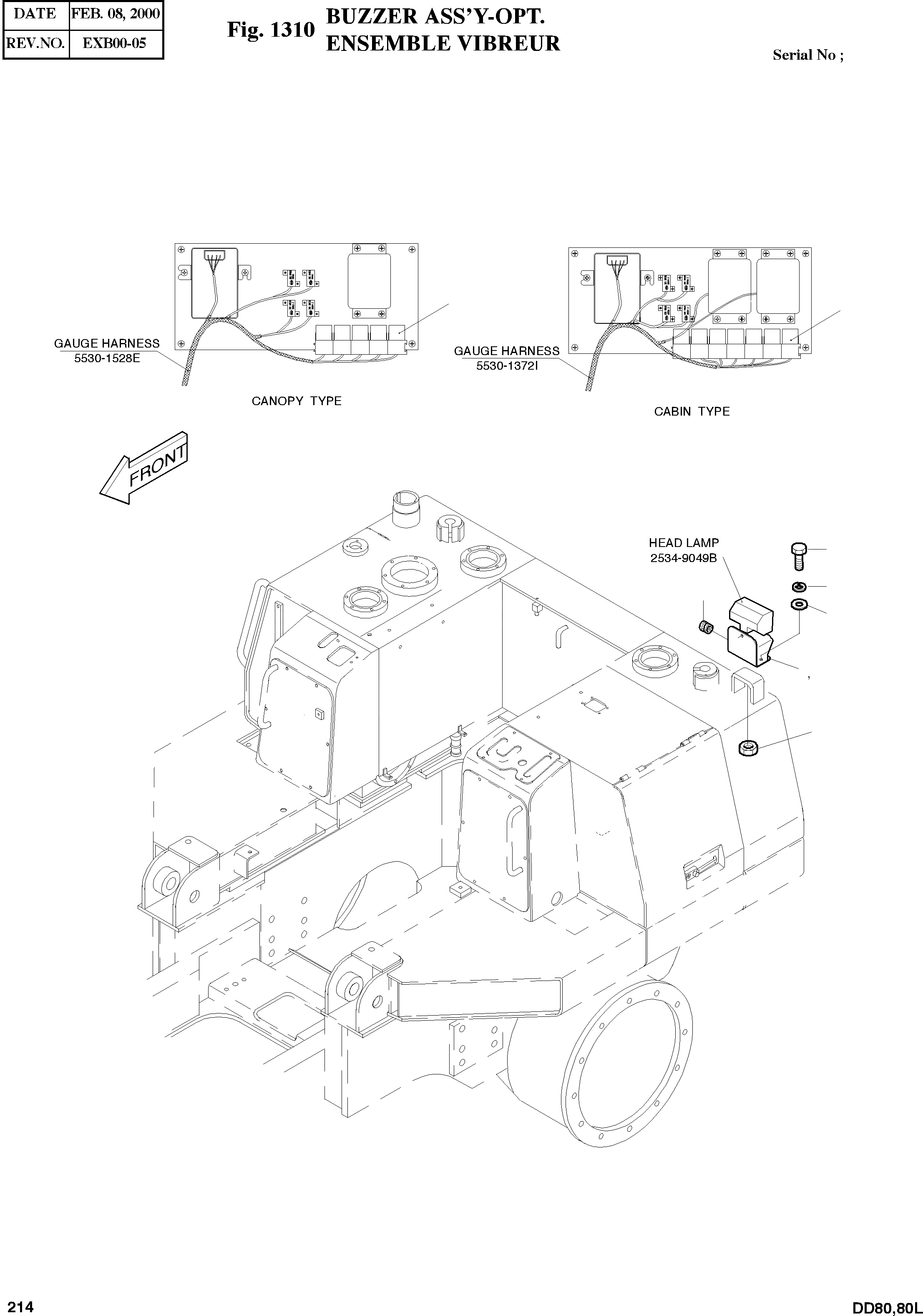

Запчасти Doosan Daewoo BUZZER ASSY-OPT UPPER STRUCTURE

-

5516-1122

BUZZER ASS'Y-OPT

SC: D

-2шт.

1

5197-2316B

BRACKET;BUZZER

desc: SUPPORT

1шт.

2

S0509053

BOLT M8X1.25X25

desc: BOULON A 6 PANS

2шт.

3

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE M8

2шт.

4

S5010503

WASHER M8

desc: RONDELLE PLATE

2шт.

5

2516-1115

BUZZER;BACK UP

SERIAL: 1-360

1шт.

5

2516-1124

BUZZER;BACK UP

SERIAL: 361

1шт.

6

2160-1004D2

BUSHING;RUBBER

desc: MANCHON CAOUTCHOUC

1шт.

7

2544-9033

RELAY;BACK BUZZER

desc: RELAIS AVERTISSEUR

1шт.

11

S4012533

NUT M8X1.25

desc: ECROU

2шт.
