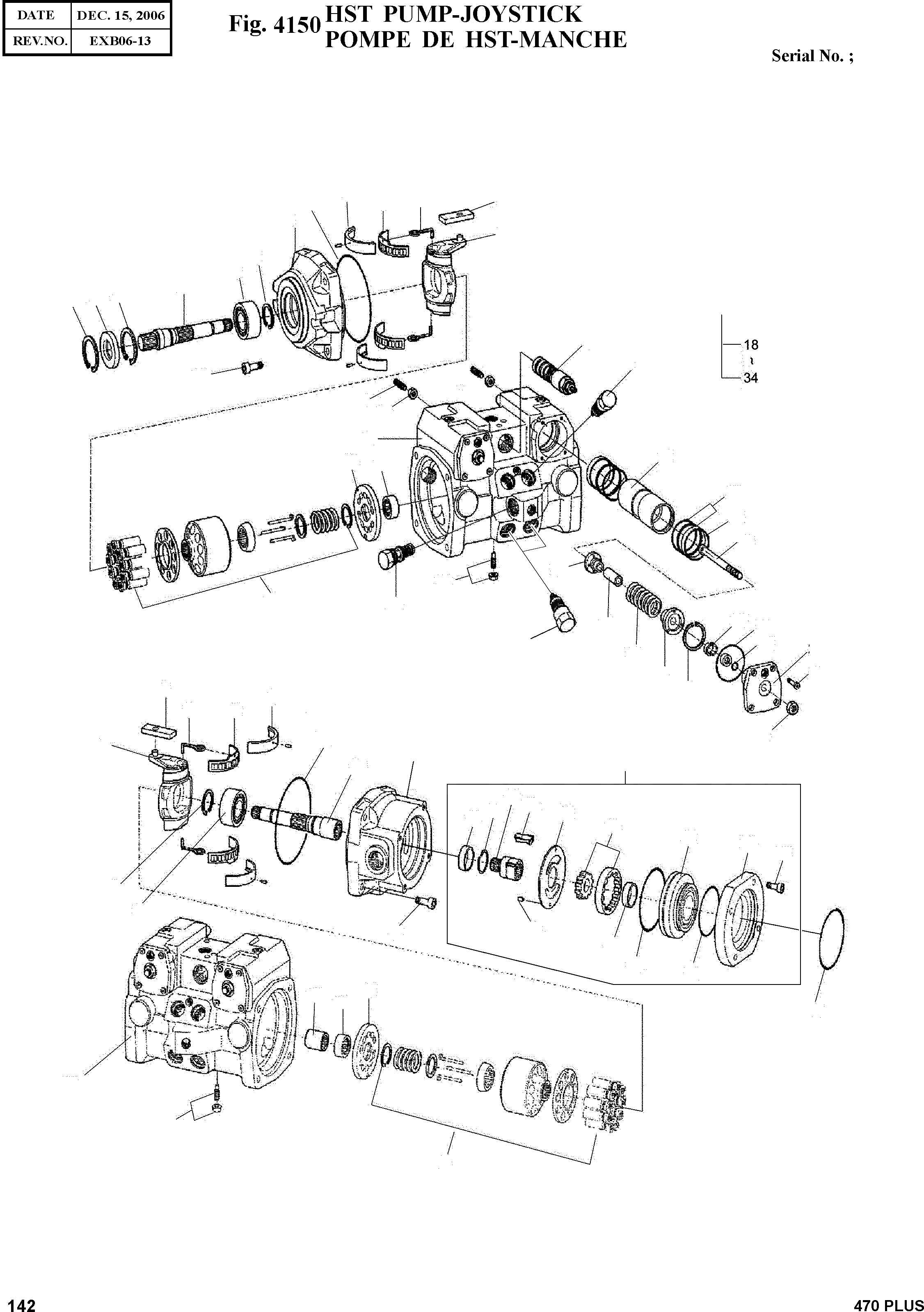

Запчасти Doosan Daewoo HST PUMP-JOYSTICK HYDRAULIC COMPONENTS

-

K1022715

PUMP;HST(JOYSTICK)

SERIAL: 5001-5151

1шт.

-

K1022715B

PUMP;HST(JOYSTICK)

SERIAL: 5152

1шт.

1

K1022809

FLANGE;BEARING

desc: BRIDE

1шт.

2

K1022810

SHAFT;DRIVE

desc: ARBRE MOTEUR

1шт.

3

K1022811

BEARING;ROLLER

desc: ROULEMENT A BILLES

2шт.

4

K1022812

RING;SEEGER

desc: BAGUE

3шт.

5

K1022813

RING;SHAFT SEAL

desc: BAGUE

1шт.

6

K1022814

RING;RETAINING

desc: RONDELLE DE RETENUE

2шт.

7

K1022815

CRADLE

desc: BERCEAU

2шт.

8

K1022816

RING;SLIDE

desc: BAGUE COULISSANTE

2шт.

9

K1022817

LINER;BEARING

desc: RECOUVREMENT

2шт.

10

K1022818

BEARING;CRADLE

desc: PALIER

2шт.

11

K1022819

COIL;WIRE WITH

desc: ENROULEMENT

4шт.

12

K1022820

O-RING

desc: JOINT TORIQUE

2шт.

13

K1022821

SCREW

desc: VIS

8шт.

14

K1022822

GROUP;ROTARY

desc: GROUPE ROTATOIRE

2шт.

15

K1022823

CONTROL PLATE-R

desc: PLAQUE DE CONTROLE

1шт.

16

K1022824

BEARING;ROLLER

desc: ROULEMENT A BILLES

2шт.

17

-

HOUSING;PUMP

SC: D

1шт.

18

K1022826

PISTON;POSITIONING

desc: PISTON

2шт.

19

K1022827

ROD

desc: TIGE

2шт.

20

K1022828

COVER

desc: COUVERCLE

2шт.

21

K1022829

COLLAR;SPRING

desc: COLLIER

2шт.

22

K1022830

BUSH;SPACER

desc: COUSSINET

2шт.

23

K1022831

SPRING;PRESSURE

desc: RESSORT DE COMPRESSION

2шт.

24

K1022832

COLLAR;SPRING

desc: COLLIER

2шт.

25

K1022833

RING;RETAINING

desc: RONDELLE DE RETENUE

2шт.

26

K1022834

RING

desc: BAGUE

2шт.

27

K1022835

O-RING

desc: JOINT TORIQUE

2шт.

28

K1022836

O-RING

desc: JOINT TORIQUE

2шт.

29

K1022837

NUT;HEXAGON

desc: ECROU

2шт.

30

K1022838

SCREW

desc: VIS

8шт.

31

K1022839

RING;GUIDE

desc: ANNEAU DE GUIDE

4шт.

32

K1022840

KIT;ROD SEAL

desc: JOINT DE ROD

4шт.

33

K1022841

PIN;THREADED

desc: GOUPILLE FILETEE

4шт.

34

K1022842

NUT;SEAL LOCK

desc: ECROU

4шт.

35

K1022843

CONTROL;HYD KIT

desc: COMMANDEZ HYDRAULIQUE

2шт.

36

K1022844

CARTRIDGE;CONTROL

desc: CARTRIDGE;CONTROL

1шт.

37

K1022845

VALVE;MAIN RELIEF

desc: CLEPET DE CHARGE

4шт.

38

K1022846

VALVE;CHARGE RELIEF

desc: SOUPAPE DE SECURITE DE CHARGE

1шт.

39

K1022847

SCREW;ECCENTRIC

desc: VIS

2шт.

40

K1022848

DRIVE SHAFT-R

desc: ARBRE D'ENTRAINEMENT

1шт.

41

K1022849

CONTROL PLATE-L

desc: PLAQUE DE CONTROLE

1шт.

42

K1022850

COUPLING

desc: FIXATION DE POMPE

1шт.

43

-

FLANGE;BEARING-R

SC: D

1шт.

44

K1022852

BUSHING

desc: DOUILLE

1шт.

45

K1022853

COUPLING

desc: FIXATION DE POMPE

1шт.

46

K1022855

KEY;SHAFT

desc: CLAVETTE

1шт.

47

K1022856

RING;SNAP

desc: BAGUE ELASTIQUE

1шт.

48

K1022857

PLATE;WEAR

desc: PLAQUE

1шт.

49

K1022858

SET;WHEEL

desc: ROUE

1шт.

50

K1022859

PIN;CYLINDER

desc: GOUPILLE CYLINDRIQUE

1шт.

51

K1022860

HOUSING

desc: BOITIER

1шт.

52

K1022861

PLATE;INTER

desc: PLAQUE

1шт.

53

K1022862

O-RING

desc: JOINT TORIQUE

1шт.

54

K1022863

O-RING

desc: JOINT TORIQUE

1шт.

55

K1022864

SCREW

desc: VIS

4шт.

56

K1022865

KIT;GEAR PUMP

desc: POMPE A ENGRENAGES

1шт.

57

K1022867

O-RING

desc: JOINT TORIQUE

1шт.
