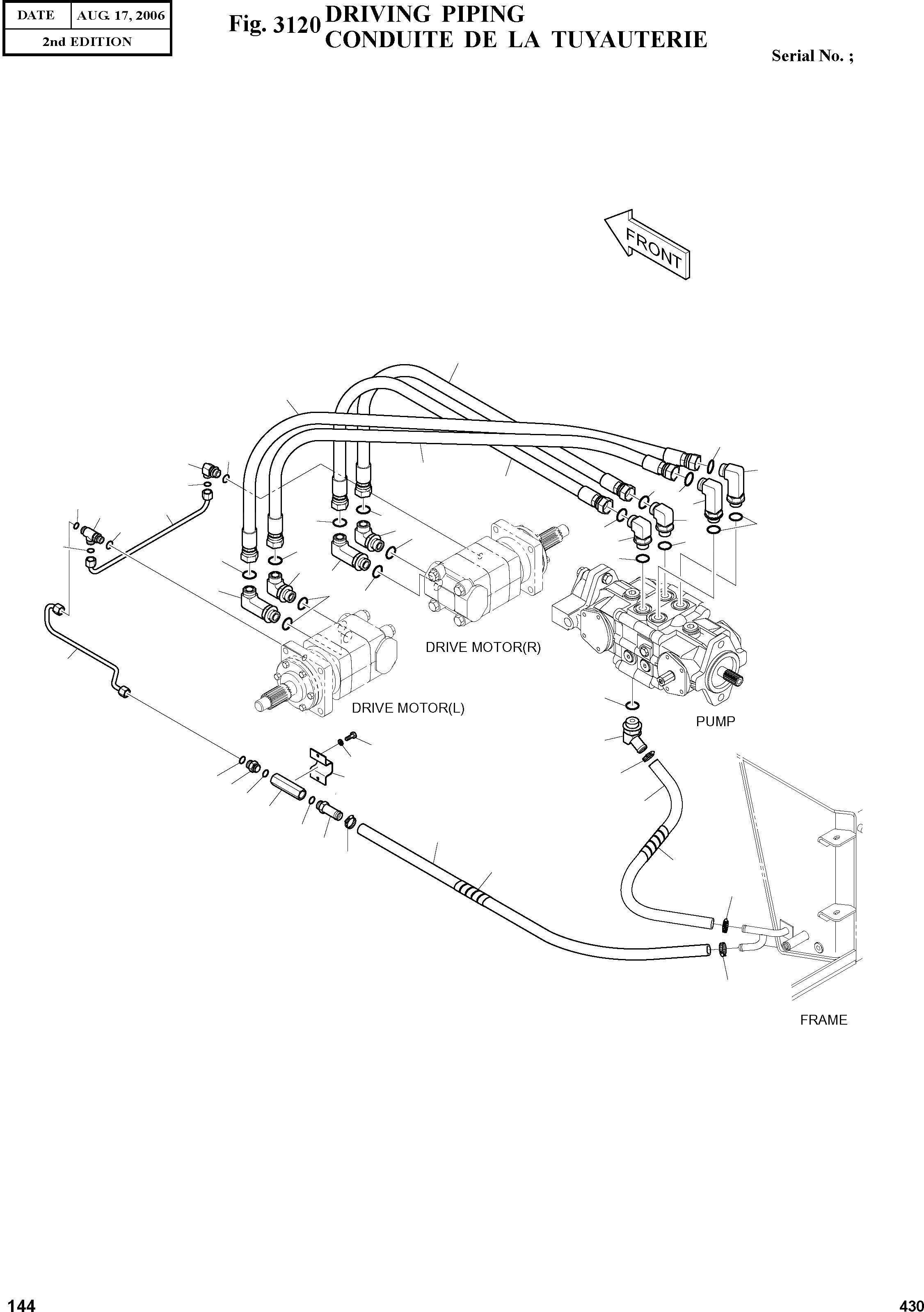

Запчасти Doosan Daewoo DRIVING PIPING FRONT ATTACHMENTS

-

K1021369

DRIVING PIPING

SC: D

-2шт.

1

K1021013

SLEEVE;VALVE

desc: MANCHON

1шт.

2

K1019912

BRACKET

desc: SUPPORT

1шт.

3

DS2011547

HOSE

desc: TUYAU FLEXIBLE

1шт.

4

DS2011548

HOSE

desc: TUYAU FLEXIBLE

1шт.

5

DS2011549

HOSE

desc: TUYAU FLEXIBLE

2шт.

6

DS0401171

WASHER;HARDENED

desc: RONDELLE

2шт.

7

K1020550

TUBE

desc: TUBE

1шт.

8

K1020511

TUBE

desc: TUBE

1шт.

9

K1022469

ELBOW

desc: COUDE

4шт.

10

K1022470

ELBOW

desc: COUDE

4шт.

11

K1022482

ELBOW

desc: COUDE

1шт.

12

K1023089

TEE

desc: TE

1шт.

13

K1019875

ADAPTER

desc: RACCORD ADAPTATEUR

1шт.

14

K1020087

ELBOW

desc: COUDE

1шт.

15

K1022543

HOSE

desc: TUYAU FLEXIBLE

218шт.

16

S8450023

CLAMP;HOSE

desc: COLLIER

4шт.

17

S8030101

O-RING

desc: JOINT TORIQUE

8шт.

18

S8040121

O-RING

desc: JOINT TORIQUE

9шт.

19

S8040081

O-RING

desc: JOINT TORIQUE

2шт.

20

S8040061

O-RING

desc: JOINT TORIQUE

2шт.

21

S8030061

O-RING

desc: JOINT TORIQUE

4шт.

22

S0504463

BOLT

desc: BOULON A 6 PANS

2шт.

23

K1022550

PROTECTOR;HOSE

desc: PROTECTEUR

159шт.

24

K1022556

ADAPTER;FILTER

desc: RACCORD ADAPTATEUR

1шт.
