Запчасти Doosan Daewoo ELECTRIC PARTS - WORKING LAMP BODY PARTS

-

500-00289A

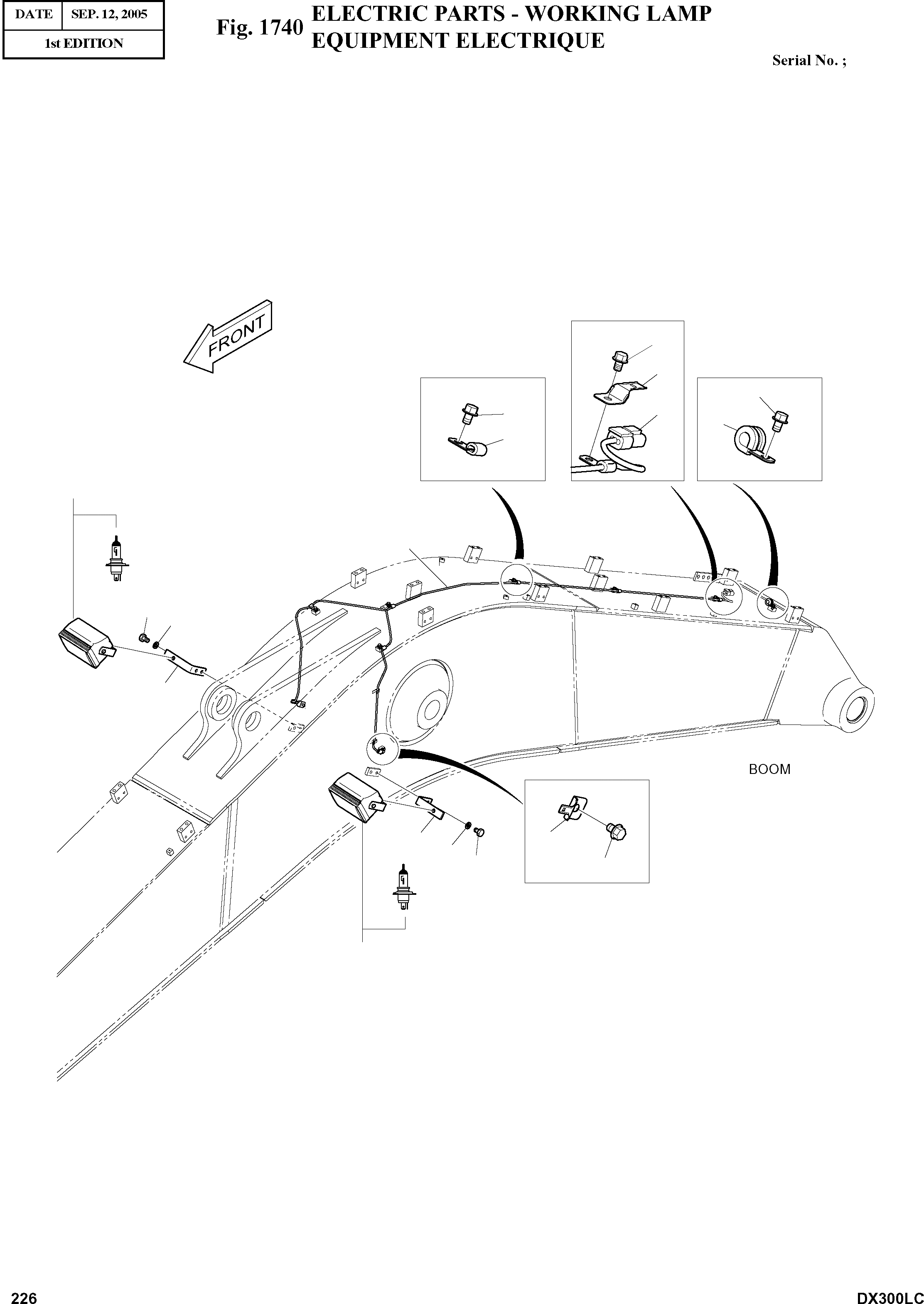

ELECTRIC PARTS-WORKING LAMP

SC: D

-2шт.

1

534-00064

LAMP ASS'Y;WORKING

desc: LAMPE

2шт.

1A

2515-1022D1

BULB;HALOGEN(24V 75/70W)

desc: . AMPOULE

1шт.

2

2195-2394B

BRACKET

desc: SUPPORT

2шт.

3

S0515066

BOLT

desc: BOULON A 6 PANS

4шт.

4

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

4шт.

5

2197-1661

BRACKET;HOUSING

desc: SUPPORT

2шт.

6

530-00418D1

HARNESS;WORKING LAMP

desc: FAISCEAU

1шт.

7

124-00208D2

CLIP

desc: ATTACHE

1шт.

8

2124-1509D1

CLIP

desc: ATTACHE

6шт.

9

K1001029

BOLT

desc: BOULON A 6 PANS

9шт.

10

2197-1660

BRACKET;HOUSING

desc: SUPPORT

1шт.
