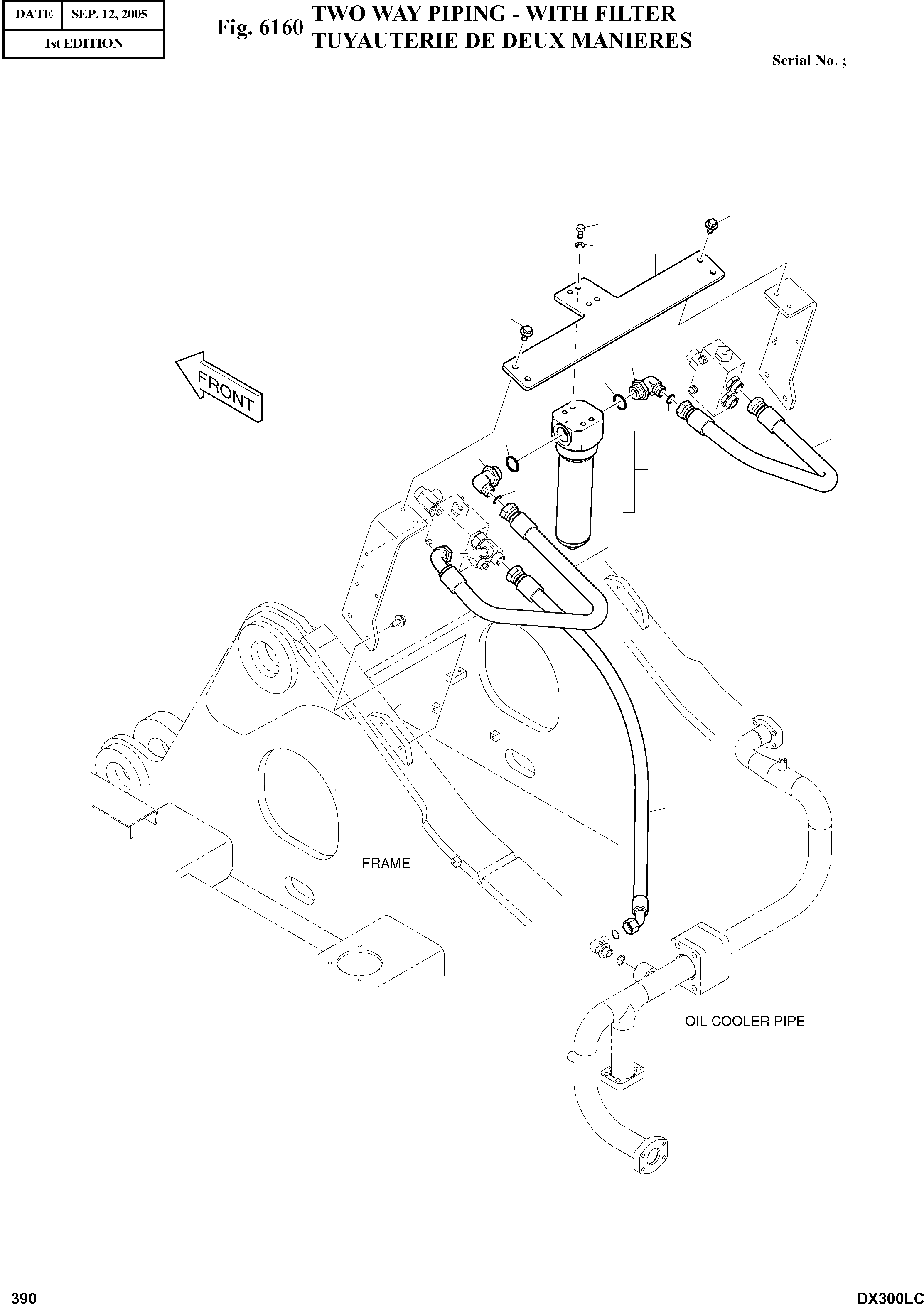

Запчасти Doosan Daewoo TWO WAY PIPING - WITH FILTER OPTIONAL PARTS

-

K1003477

TWO WAY PIPING-WITHFILTER

SC: D

-2шт.

1

DS2011330

HOSE

desc: TUYAU FLEXIBLE

1шт.

2

DS2013550

HOSE

desc: TUYAU FLEXIBLE

1шт.

3

471-00109

FILTER;BREAKER

desc: FILTRE

1шт.

3A

474-00041

ELEMENT;BREAKER FILTER

desc: . ELEMENT

1шт.

4

195-02691B

BRACKET

desc: SUPPORT

1шт.

7

DS2304080

ELBOW

desc: COUDE

2шт.

8

S8030161

O-RING

desc: JOINT TORIQUE

2шт.

9

DS0025020

BOLT;SET

desc: BOULON A 6 PANS

4шт.

10

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

4шт.

11

S0515166

BOLT M12X1.75X28

desc: BOULON A 6 PANS

4шт.

12

S8000381

O-RING

desc: JOINT TORIQUE

2шт.

13

DS2012227

HOSE

desc: TUYAU FLEXIBLE

1шт.
