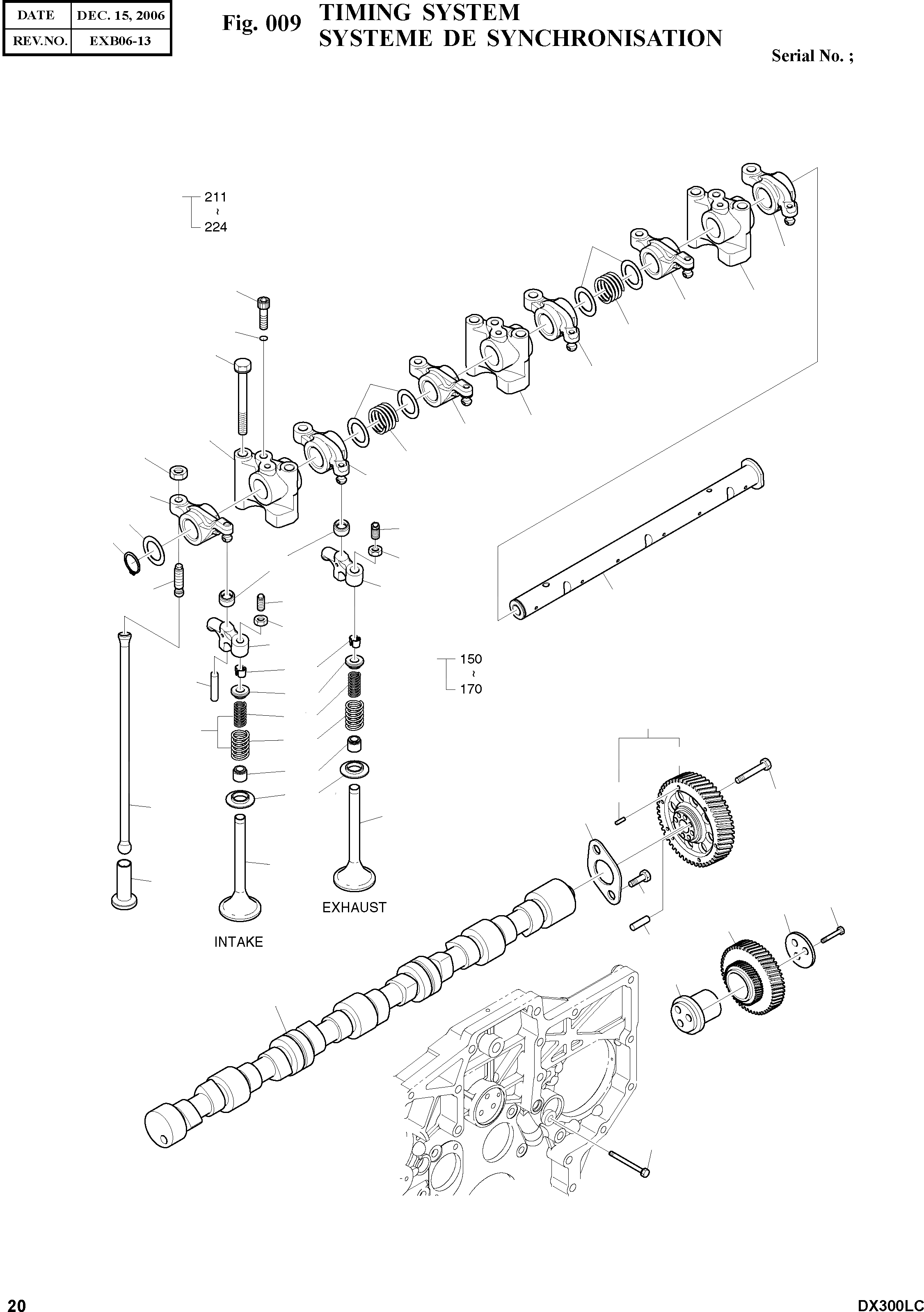

Запчасти Doosan Daewoo TIMING SYSTEM ENGINE PARTS

10

65.04101-0059B

VALVE

SERIAL: 050822

12шт.

10

65.04101-0059C

VALVE

SERIAL: 050823

12шт.

20

65.04101-0060B

VALVE

desc: VANNE

12шт.

30

65.04102-6011B

SPRING;VALVE

desc: RESSORT

24шт.

40

65.04102-0020B

SPRING;VALVE

SC: D

1шт.

50

65.04102-0021A

SPRING;VALVE

SC: D

1шт.

100

65.04103-0016

PLATE;VALVE SPRING

desc: PLAQUE

24шт.

110

65.90701-0097B

WASHER

desc: RONDELLE

24шт.

120

65.04104-0008

COTTER;VALVE

desc: COTTER;VALVE

48шт.

130

65.04902-0014

SEAL;VALVE STEAM

desc: JOINT

24шт.

140

65.04130-6001A

CALIPER

SERIAL: 050822

12шт.

140

65.04130-6001B

CALIPER

SERIAL: 050823

12шт.

150

65.04130-0001B

CALIPER

SERIAL: 050822

1шт.

150

65.04130-0001C

CALIPER

SERIAL: 050823

1шт.

160

65.04205-0007A

SCREW;ADJUST

desc: . VIS

1шт.

170

65.90501-0031

NUT;HEX

desc: . ECROU

1шт.

180

65.04135-0003

PIN;CALIPER GUIDE

desc: GOUPILLE

12шт.

210

65.04200-6030D

ROCKER ARM SHAFT ASS'Y

SERIAL: 060310

2шт.

210

65.04200-6030E

ROCKER ARM SHAFT ASS'Y

SERIAL: 060311

2шт.

211

65.04201-5025

ARM;ROCKER

desc: . RAMPE DE CULBUTEURS

3шт.

212

65.04201-5026

ARM;ROCKER

desc: . RAMPE DE CULBUTEURS

3шт.

213

65.04205-0012

SCREW;ADJUST

desc: . VIS

6шт.

214

65.90501-0031

NUT;HEX

desc: . ECROU

6шт.

215

65.04203-5017

SHAFT;ROCKER ARM

SERIAL: 060310

1шт.

215

65.04203-5017A

SHAFT;ROCKER ARM

SERIAL: 060311

1шт.

216

65.04202-0026

BRACKET;ROCKER ARM

desc: . SUPPORT

2шт.

217

65.04202-0027

BRACKET;ROCKER ARM

desc: . SUPPORT

1шт.

218

65.97601-0118

SPRING;COMPRESSION

desc: . RESSORT DE COMPRESSION

2шт.

219

65.90701-0136B

WASHER

desc: . RONDELLE

5шт.

220

06.29010-0120

RING;SNAP 24X1.2

desc: . BAGUE

1шт.

221

65.90020-0093

BOLT;COLLARED HEX

desc: . BOULON A 6 PANS

6шт.

222

65.90030-0020

BOLT;SOCKET HEAD

desc: . BOULON A 6 PANS CREUX

1шт.

223

06.16110-0106

WASHER;SPRING A8

desc: . RONDELLE ELASTIQUE

1шт.

224

65.04209-0002

CAP;ADJUST SCREW

SERIAL: 060310

6шт.

224

65.04209-0002A

CAP;ADJUST SCREW

SERIAL: 060311

6шт.

310

65.04301-5002B

TAPPET;VALVE

desc: TRINGLERIE

12шт.

320

65.04302-0001

ROD;PUSH

SERIAL: 060215

12шт.

320

65.04302-0001A

ROD;PUSH

SERIAL: 060216

12шт.

420

65.04401-0029B

SHAFT;CAM

SERIAL: 061127

1шт.

420

65.04401-0029C

SHAFT;CAM

SERIAL: 061128

1шт.

430

65.90720-0027A

WASHER;THRUST

desc: RONDELLE DE BUTEE

1шт.

440

65.90020-0092

BOLT;COLLARED HEX

desc: BOULON A 6 PANS

2шт.

450

06.22022-1016

PIN;DOWEL 8M6X36

desc: GOUJON

1шт.

510

65.04501-6002A

GEAR;CAM SHAFT

desc: PIGNON

1шт.

520

65.04501-0014A

GEAR;CAM SHAFT

desc: . JOINT

1шт.

530

65.91010-0005A

PIN;STRAIGHT

SC: D

7шт.

540

65.90020-0086

BOLT;COLLARED HEX

desc: BOULON A 6 PANS

4шт.

550

65.04505-5003B

GEAR;IDLE

desc: PIGNON

1шт.

560

65.04506-0012A

PIN;IDEL GEAR

desc: GOUJON

1шт.

570

65.90720-0028B

WASHER;THRUST

desc: RONDELLE DE BUTEE

1шт.

580

65.90020-0085

BOLT;COLLARED HEX

desc: BOULON A 6 PANS

3шт.

590

06.01914-3221

BOLT ASS'Y M10X50

desc: BOULON A 6 PANS

1шт.
