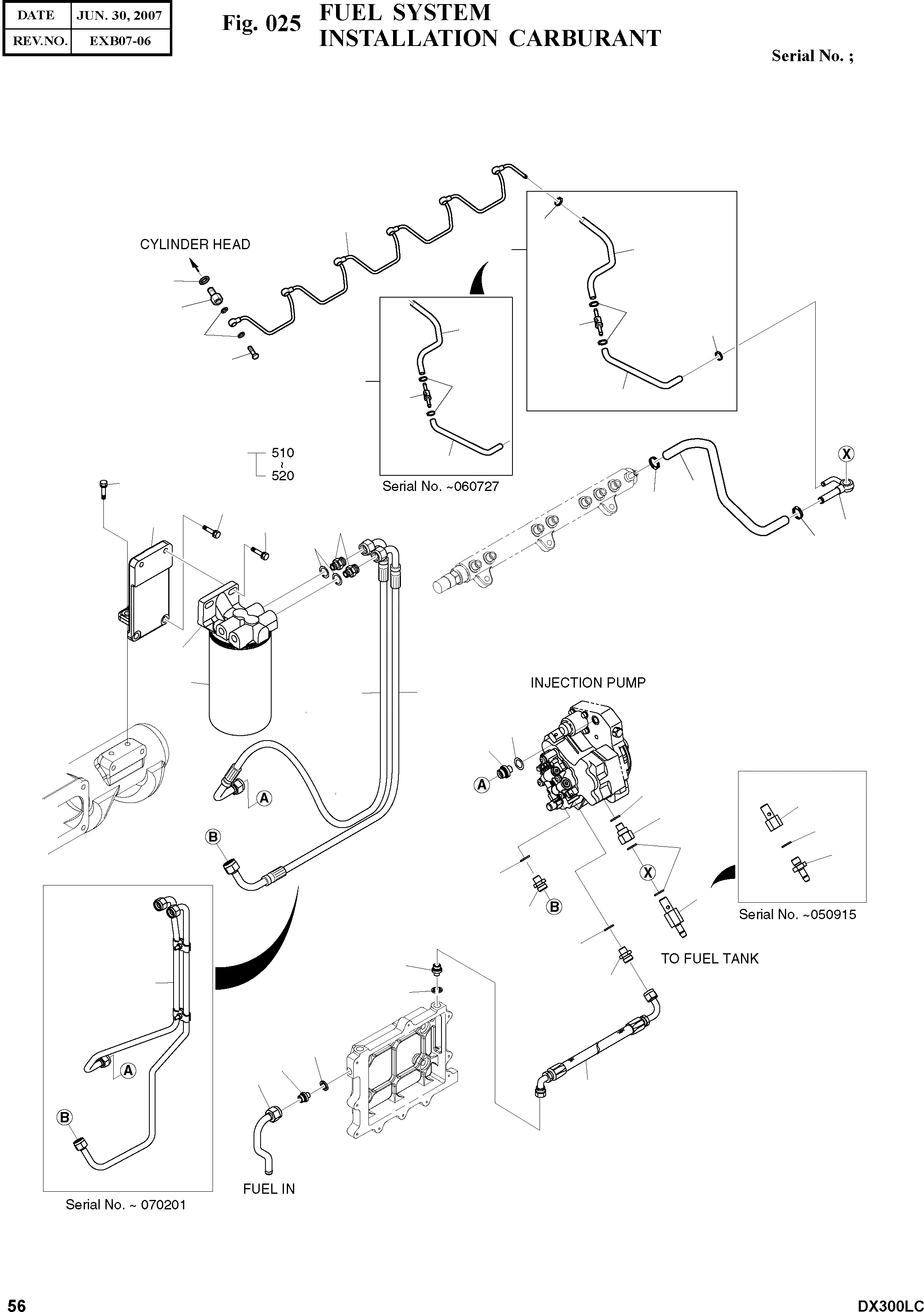

Запчасти Doosan Daewoo FUEL SYSTEM ENGINE PARTS

10

65.12301-6011

PIPE;FUEL

SERIAL: 070201

1шт.

10

REP_PNO: 65.96340-5083

-3шт.

10

65.96340-5082

HOSE;FUEL

SERIAL: 070202

1шт.

11

65.96340-5083

HOSE;FUEL

SERIAL: 070202

1шт.

30

06.78190-0206

SCREW;CONNECTION

SERIAL: 060127

2шт.

30

65.98130-0229

ADAPTER

SERIAL: 060128

2шт.

40

06.56190-0706

RING;SEAL A14X20

desc: BAGUE

2шт.

60

65.98130-0211

ADAPTER

SERIAL: 050915

3шт.

60

65.98130-0235

ADAPTER

SERIAL: 050916

3шт.

70

65.98130-0159A

ADAPTER

desc: ADAPTEUR

1шт.

80

06.56190-0704

RING;SEAL A12X18

desc: BAGUE

4шт.

90

65.12301-5244A

PIPE;FUEL

SERIAL: 050623

1шт.

90

65.12301-5244B

PIPE;FUEL

SERIAL: 050624

1шт.

100

65.98130-0218

ADAPTER

SERIAL: 050915

1шт.

100

65.98130-0236

ADAPTER

SERIAL: 050916

1шт.

110

06.56190-0706

RING;SEAL A14X20

desc: BAGUE

2шт.

120

65.98131-0018

NIPPLE;UNION

SERIAL: 050915

1шт.

130

06.56190-0706

RING;SEAL A14X20

SERIAL: 050915

1шт.

140

65.12301-5261

PIPE;FUEL

SERIAL: 050310

1шт.

140

65.12301-5261A

PIPE;FUEL

SERIAL: 050311

1шт.

150

65.98130-0154

ADAPTER

desc: ADAPTEUR

6шт.

160

06.56180-0712

RING;SEAL A8X14

desc: BAGUE

6шт.

170

65.98150-0042A

SCREW;HOLLOW M8X1

desc: VIS

6шт.

180

65.96507-0055

RING;SEAL

desc: BAGUE

6шт.

200

65.96301-7001A

HOSE;RUBBER

SERIAL: 060727

1шт.

200

65.96301-7002

HOSE;RUBBER

SERIAL: 060728

1шт.

201

65.52101-0004

REGULATOR;PRESSURE

desc: . REGULATEUR

1шт.

202

65.96301-0410A

HOSE;RUBBER

SERIAL: 060727

2шт.

202

65.96301-0484

HOSE;RUBBER

SERIAL: 060728

2шт.

203

65.97440-0045

CLAMP;HOSE

SERIAL: 060727

2шт.

203

65.97402-0002

CLAMP;HOSE

SERIAL: 060728

2шт.

210

65.97440-0045

CLAMP;HOSE

SERIAL: 060727

2шт.

210

65.97402-0002

CLAMP;HOSE

SERIAL: 060728

2шт.

220

65.96301-0243

HOSE;RUBBER

desc: TUYAU FLEXIBLE

1шт.

230

65.97440-0045

CLAMP;HOSE

desc: COLLIER

2шт.

300

06.78190-0206

SCREW;CONNECTION

SERIAL: 060127

2шт.

300

65.98130-0229

SCREW;CONNECTION

SERIAL: 060128

2шт.

310

06.56190-0706

RING;SEAL A14X20

desc: BAGUE

2шт.

320

65.12301-5268

PIPE;FUEL

desc: CONDUITE

1шт.

330

65.96340-5069

HOSE;RUBBER

SERIAL: 050603

1шт.

330

65.12301-5287

HOSE;RUBBER

SERIAL: 050604

1шт.

500

65.12501-7085A

FUEL FILTER ASS'Y

SERIAL: 060513

1шт.

500

65.12501-7093

FUEL FILTER ASS'Y

SERIAL: 050614

1шт.

510

65.12504-5019

HEAD;FUEL FILTER

SERIAL: 060513

1шт.

510

65.12504-5023

HEAD;FUEL FILTER

SERIAL: 060514

1шт.

520

65.12503-5020A

ELEMENT;FUEL FILTER

SERIAL: 060513

1шт.

520

65.12503-5027

ELEMENT;FUEL FILTER

SERIAL: 060514

1шт.

530

06.01923-3218

BOLT ASS'Y M10X35

desc: BOULON A 6 PANS

2шт.

540

65.12540-0050

BRACKET;FUEL FILTER

desc: SUPPORT

1шт.

550

06.01913-3216

BOLT;HEX. M10X28

desc: BOULON A 6 PANS

4шт.
