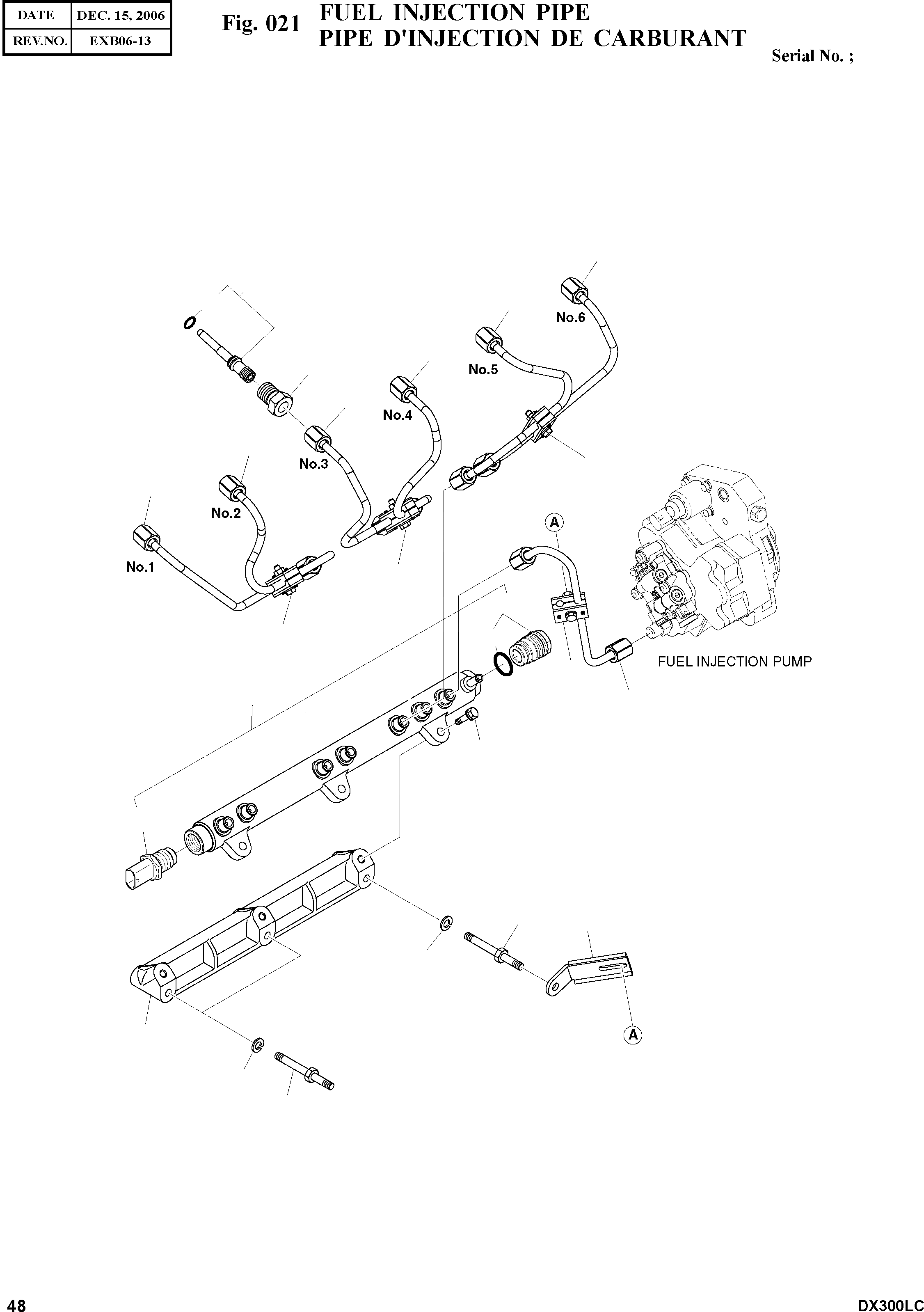

Запчасти Doosan Daewoo FUEL INJECTION PIPE ENGINE PARTS

10

65.10301-6094

PIPE;INJECTION

SERIAL: 051102

1шт.

10

65.10301-6094A

PIPE;INJECTION

SERIAL: 051103

1шт.

20

65.10301-6095

PIPE;INJECTION

SERIAL: 051102

1шт.

20

65.10301-6095A

PIPE;INJECTION

SERIAL: 060911

1шт.

20

65.10301-6095B

PIPE;INJECTION

SERIAL: 060912

1шт.

30

65.10301-6096A

PIPE;INJECTION

SERIAL: 051102

1шт.

30

65.10301-6096B

PIPE;INJECTION

SERIAL: 051103

1шт.

40

65.10301-6097

PIPE;INJECTION

SERIAL: 051102

1шт.

40

65.10301-6097A

PIPE;INJECTION

SERIAL: 051103

1шт.

50

65.10301-6098

PIPE;INJECTION

SERIAL: 051102

1шт.

50

65.10301-6098A

PIPE;INJECTION

SERIAL: 051103

1шт.

60

65.10301-6099

PIPE;INJECTION

SERIAL: 051102

1шт.

60

65.10301-6099A

PIPE;INJECTION

SERIAL: 051103

1шт.

70

65.10301-6104

PIPE;INJECTION

SERIAL: 051102

1шт.

70

65.10301-6104A

PIPE;INJECTION

SERIAL: 051103

1шт.

80

65.10410-6001

CONNECTOR

SERIAL: 050917

6шт.

80

65.10410-6004

CONNECTOR

SERIAL: 050918

6шт.

81

65.96501-0429

O-RING

SERIAL: 050917

1шт.

81

65.96501-0433

O-RING

SERIAL: 050918

1шт.

90

65.10415-0001

NUT

desc: ECROU

6шт.

100

65.10601-6001

RAIL

SERIAL: 051102

1шт.

100

65.10601-6001A

RAIL

SERIAL: 051103

1шт.

101

65.27114-5001

SENSER;RAIL PRESS

desc: . SENSER;RAIL

1шт.

102

65.52122-6001

VALVE;LIMIT PRESS

desc: . VANNE

1шт.

103

65.96501-0431

O-RING

desc: . JOINT TORIQUE

1шт.

110

65.10610-0002

BRACKET;RAIL MOUNTING

desc: SUPPORT

1шт.

120

06.01913-3117

BOLT ASS'Y M8X30

desc: BOULON A 6 PANS

3шт.

130

65.90201-0093

BOLT;STUD

desc: BOULON A 6 PANS

3шт.

140

06.16731-2107

WASHER;SPRING A8

desc: RONDELLE ELASTIQUE

3шт.

160

65.97401-6036

CLIP;PIPE

desc: ATTACHE

4шт.

170

65.97401-5022

CLIP;PIPE

desc: . ATTACHE

1шт.

180

65.97401-5023

CLIP;PIPE

desc: . ATTACHE

1шт.

190

06.01913-2917

BOLT ASS'Y M6X30

desc: . BOULON A 6 PANS

1шт.

200

65.97480-0206A

HOLDER

desc: POSSESSEUR

1шт.
