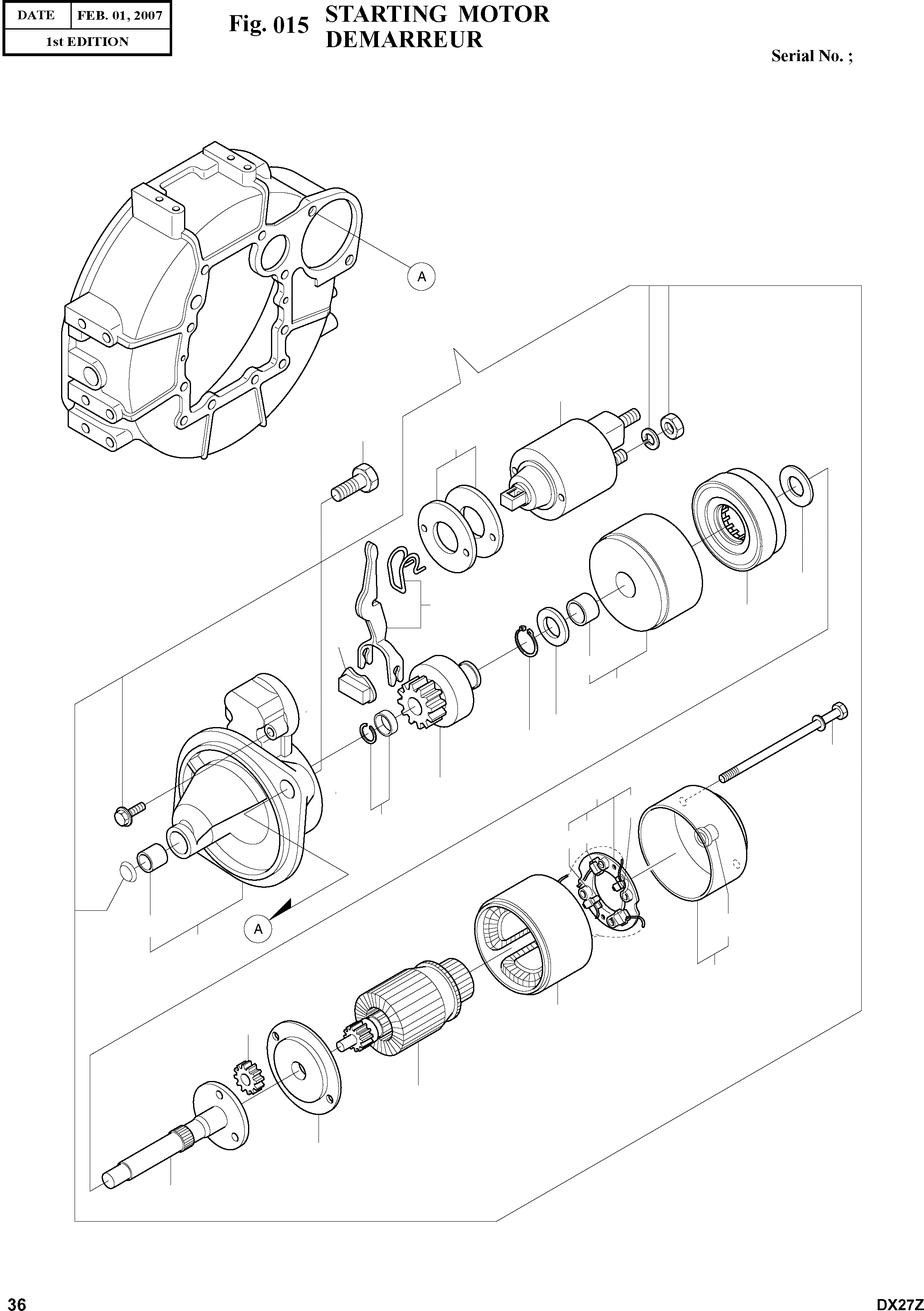

Запчасти Doosan Daewoo STARTING MOTOR ENGINE PARTS

1

2.120-00052

BOLT M12X25

desc: BOULON

2шт.

2

K9004758

STARTER

desc: DEMARREUR

1шт.

3

K9004788

MAGNETIC SWITCH ASS'Y

desc: . COMMUTATEUR MAGNETIQUE

1шт.

4

K9004884

ARMATURE ASS'Y

desc: . ARMATURE

1шт.

5

K9004759

YOKE ASS'Y

desc: . JOUG

1шт.

6

K9004760

BRUSH HOLDER ASS'Y

desc: . SUPPORT DE BROSSE

1шт.

7

K9004761

BRUSH

desc: .. BROSSE

2шт.

8

K9004762

BRUSH;SET

desc: .. BROSSE

1шт.

9

K9004763

BRUSH;SPRING

desc: .. BROSSE

4шт.

10

K9004764

REAR COVER ASS'Y

desc: . COUVERCLE

1шт.

11

K9004765

REAR COVER METAL

desc: .. METAL DE COUVERTURE ARRIERE

1шт.

12

K9004602

PLANET;GEAR

desc: . PIGNON DE PLANETE

3шт.

13

K9004766

BRACKET;CENTER(P)

desc: . SUPPORT

1шт.

14

K9004789

BRACKET

desc: .. SUPPORT

1шт.

15

K9004790

INTERNAL;GEAR

desc: . VITESSE INTERNE

1шт.

16

K9004767

BRACKET;CENTER(A)

desc: . SUPPORT

1шт.

17

K9004791

PINION ASS'Y

desc: . PIGNON

1шт.

18

K9004792

SHAFT

desc: . ARBRE

1шт.

19

K9004793

WASHER

desc: . RONDELLE

1шт.

20

K9004768

GEAR CASE ASS'Y

desc: . CAISSE DE PIGNON

1шт.

21

K9004870

METAL;STARTER

desc: .. METAL

1шт.

22

K9004769

SHIFT LEVER SET

desc: . DECALEZ L'ENSEMBLE DE LEVIER

1шт.

23

K9004770

DUST;COVER KIT

desc: . KIT DE COUVERTURE

1шт.

24

2.120-00331

BOLT;THROUGH

desc: . BOULON

2шт.
