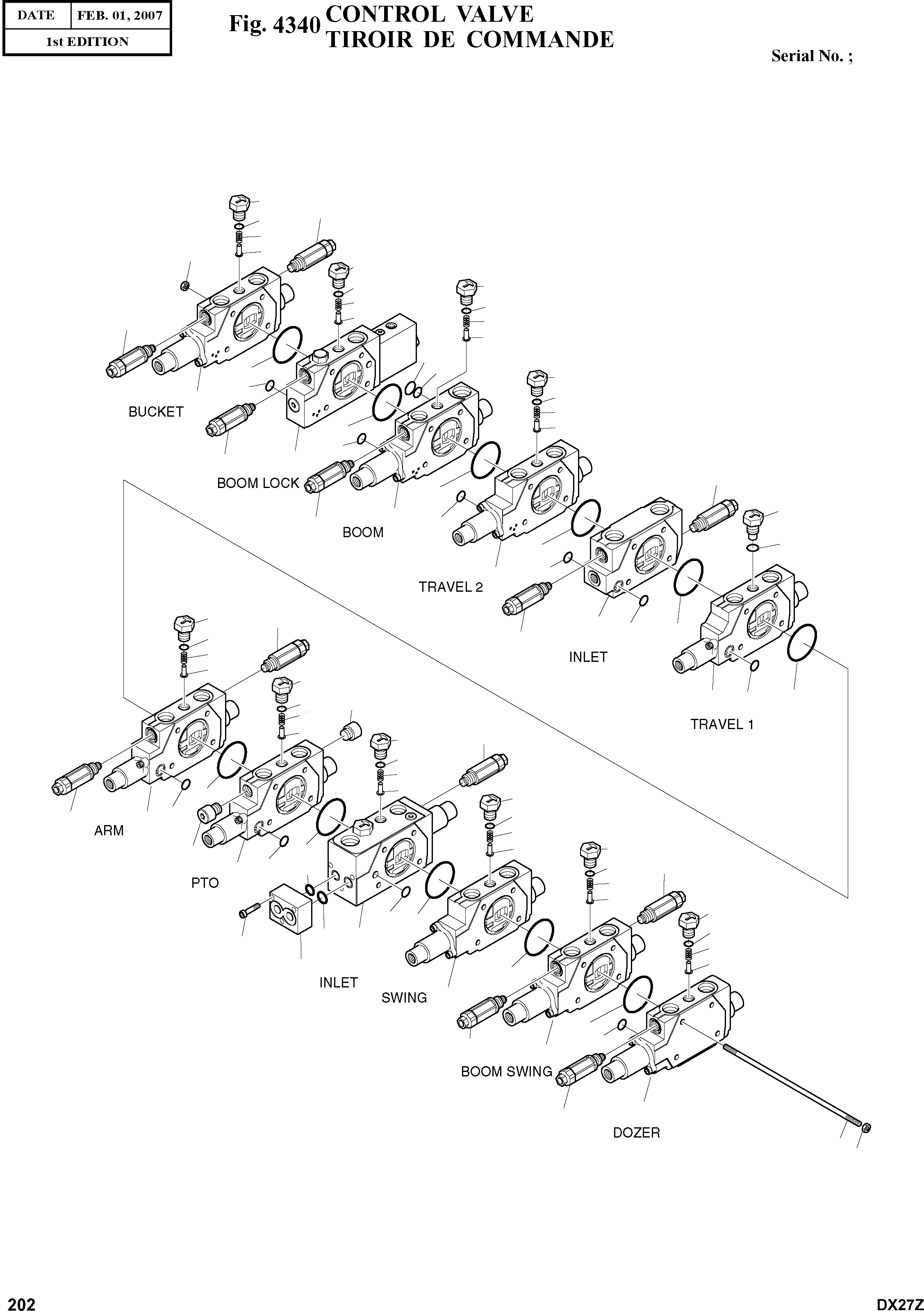

Запчасти Doosan Daewoo CONTROL VALVE MAIN PIPING (1)

-

K1017285B

CONTROL VALVE

desc: TIROIR DE COMMANDE

1шт.

1

K9005331

BLOCK ASS'Y-DOZER

desc: ENSEMBLE DE BLOC

1шт.

1-3

K9004977

POPPET;CHECK

desc: . POUPEE

1шт.

1-4

K9004988

SPRING;CHECK

desc: . RESSORT

1шт.

1-5

S8000111

O-RING

desc: . JOINT TORIQUE

1шт.

1-6

K9004981

PLUG;CHECK

desc: . BOUCHON

1шт.

2

K9005332

BLOCK ASS'Y-BOOM SWING

desc: ENSEMBLE DE BLOC

1шт.

2-3

K9004977

POPPET;CHECK

desc: . POUPEE

1шт.

2-4

K9004988

SPRING;CHECK

desc: . RESSORT

1шт.

2-5

S8000111

O-RING

desc: . JOINT TORIQUE

1шт.

2-6

K9004981

PLUG;CHECK

desc: . BOUCHON

1шт.

3

K9005333

BLOCK ASS'Y-SWING

desc: ENSEMBLE DE BLOC

1шт.

3-3

K9004977

POPPET;CHECK

desc: . POUPEE

1шт.

3-4

K9004988

SPRING;CHECK

desc: . RESSORT

1шт.

3-5

S8000111

O-RING

desc: . JOINT TORIQUE

1шт.

3-6

K9004981

PLUG;CHECK

desc: . BOUCHON

1шт.

4

K9005334

BLOCK P

desc: BLOC

1шт.

4-3

K9004976

POPPET;CHECK

desc: . POUPEE

2шт.

4-4

K9004989

SPRING;CHECK

desc: . RESSORT

2шт.

4-5

S8000111

O-RING

desc: . JOINT TORIQUE

2шт.

4-6

K9004982

PLUG;CHECK

desc: . BOUCHON

2шт.

4-7

K9004987

O-RING

desc: . JOINT TORIQUE

2шт.

4-14

S8000101

O-RING

desc: . JOINT TORIQUE

1шт.

4-15

K9004965

BODY;PILOT

desc: . CORPS PILOTE

1шт.

4-16

S2203763

BOLT;SOCKET

desc: . BOULON A 6 PANS CREUX

3шт.

5

K9004969

BLOCK ASS'Y-PTO

desc: ENSEMBLE DE BLOC

1шт.

5-3

K9004983

POPPET;CHECK

desc: . POUPEE

1шт.

5-4

K9004990

SPRING;CHECK

desc: . RESSORT

1шт.

5-5

S8000111

O-RING

desc: . JOINT TORIQUE

1шт.

5-6

K9004984

PLUG;CHECK

desc: . BOUCHON

1шт.

6

K9005335

BLOCK ASS'Y-ARM

desc: ENSEMBLE DE BLOC

1шт.

6-3

K9004977

POPPET;CHECK

desc: . POUPEE

1шт.

6-4

K9004988

SPRING;CHECK

desc: . RESSORT

1шт.

6-5

S8000111

O-RING

desc: . JOINT TORIQUE

1шт.

6-6

K9004981

PLUG;CHECK

desc: . BOUCHON

1шт.

7

K9005336

BLOCK ASS'Y-TRAVEL

desc: ENSEMBLE DE BLOC

1шт.

7-3

S8000111

O-RING

desc: . JOINT TORIQUE

1шт.

7-4

K9004982

PLUG;CHECK

desc: . BOUCHON

1шт.

8

K9004964

BLOCK ASS'Y-INLET

desc: ENSEMBLE DE BLOC

1шт.

9

K9005337

BLOCK ASS'Y-TRAVEL

desc: ENSEMBLE DE BLOC

1шт.

9-3

K9004976

POPPET;CHECK

desc: . POUPEE

1шт.

9-4

K9004989

SPRING;CHECK

desc: . RESSORT

1шт.

9-5

S8000111

O-RING

desc: . JOINT TORIQUE

1шт.

9-6

K9004982

PLUG;CHECK

desc: . BOUCHON

1шт.

10

K9005338

BLOCK ASS'Y-BOOM

desc: ENSEMBLE DE BLOC

1шт.

10-3

K9004977

POPPET;CHECK

desc: . POUPEE

1шт.

10-4

K9004988

SPRING;CHECK

desc: . RESSORT

1шт.

10-5

S8000111

O-RING

desc: . JOINT TORIQUE

1шт.

10-6

K9004981

PLUG;CHECK

desc: . BOUCHON

1шт.

11

K9004974

BLOCK ASS'Y-BOOM LOCK VALVE

desc: ENSEMBLE DE BLOC

1шт.

11-2

S8000111

O-RING

desc: . JOINT TORIQUE

2шт.

11-4

K9004976

POPPET;CHECK

desc: . POUPEE

1шт.

11-5

K9004989

SPRING;CHECK

desc: . RESSORT

1шт.

11-6

K9004982

PLUG;CHECK

desc: . BOUCHON

1шт.

12

K9005339

BLOCK ASS'Y-BUCKET

desc: ENSEMBLE DE BLOC

1шт.

12-3

K9004977

POPPET;CHECK

desc: . POUPEE

1шт.

12-4

K9004988

SPRING;CHECK

desc: . RESSORT

1шт.

12-5

S8000111

O-RING

desc: . JOINT TORIQUE

1шт.

12-6

K9004981

PLUG;CHECK

desc: . BOUCHON

1шт.

13

K9005342

VALVE;MAIN RELIEF

desc: VANNE

2шт.

14

K9005340

VALVE;MAIN RELIEF

desc: VANNE

1шт.

15

K9005341

VALVE;OVERLOAD RELIEF

desc: CLAPET DE DECHARGE

9шт.

16

K9004980

PLUG;RELIEF

desc: BOUCHON

2шт.

17

2180-1217D116

O-RING

desc: JOINT TORIQUE

11шт.

18

S8000180

O-RING

desc: JOINT TORIQUE

7шт.

19

S8000201

O-RING

desc: JOINT TORIQUE

2шт.

20

S8000101

O-RING

desc: JOINT TORIQUE

1шт.

21

S8000091

O-RING

desc: JOINT TORIQUE

1шт.

22

S8000060

O-RING

desc: JOINT TORIQUE

1шт.

23

K9004986

BOLT;TIE

desc: BOULON

4шт.

24

S4010503

NUT;HEX

desc: ECROU

4шт.
