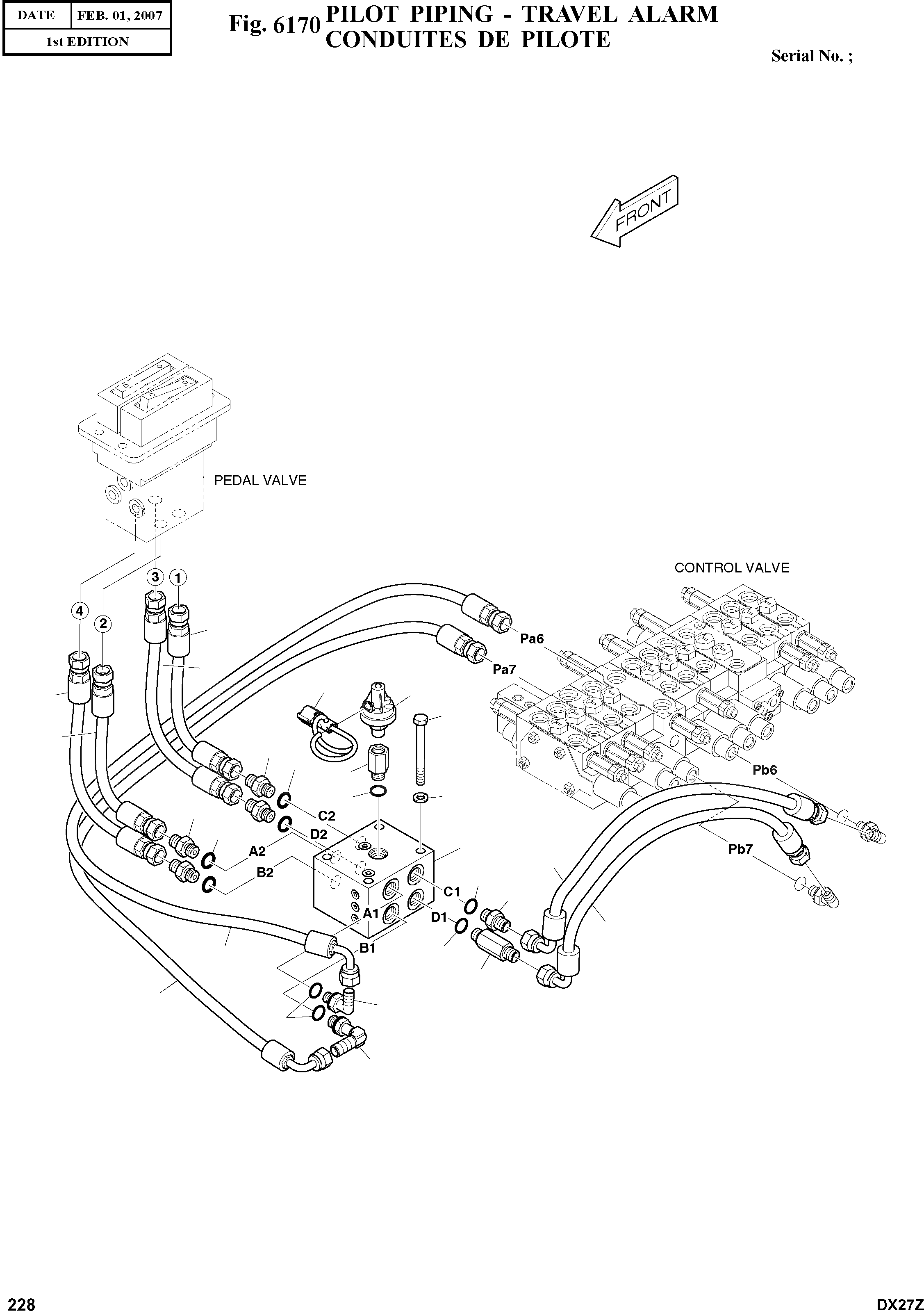

Запчасти Doosan Daewoo PILOT PIPING - TRAVEL ALARM OPTIONAL PARTS

-

K1026002A

PILOT PIPING-TRAVEL ALARM

SC: D

-2шт.

1

2420-9351B

VALVE;SHUTTLE

desc: VANNE

1шт.

2

549-00010

SWITCH;PRESSURE

desc: COMMUTATEUR

1шт.

3

S5102503

WASHER;SPRING

desc: RONDELLE ELASTIQUE

4шт.

4

S0556953

BOLT

desc: BOULON

4шт.

5

S8000111

O-RING

desc: JOINT TORIQUE

9шт.

6

2181-1702D4

ELBOW

desc: COUDE

1шт.

7

2181-1702D82

ELBOW

desc: COUDE

1шт.

8

2181-1126D14

ADAPTER

desc: ADAPTEUR

5шт.

9

2181-1126D34

ADAPTER

desc: ADAPTEUR

1шт.

10

DS2094138

HOSE

desc: TUYAU FLEXIBLE

1шт.

11

DS2094138

HOSE

desc: TUYAU FLEXIBLE

1шт.

12

DS2094139

HOSE

desc: TUYAU FLEXIBLE

1шт.

13

DS2094139

HOSE

desc: TUYAU FLEXIBLE

1шт.

14

DS2093233

HOSE

desc: TUYAU FLEXIBLE

1шт.

15

DS2093157

HOSE

desc: TUYAU FLEXIBLE

1шт.

16

DS2093127

HOSE

desc: TUYAU FLEXIBLE

1шт.

17

DS2093024

HOSE

desc: TUYAU FLEXIBLE

1шт.

18

DS2242017

REDUCER

desc: REDUCEUR

1шт.

20

530-00067

HARNESS;PRESS SWITCH

desc: HARNAIS

1шт.
