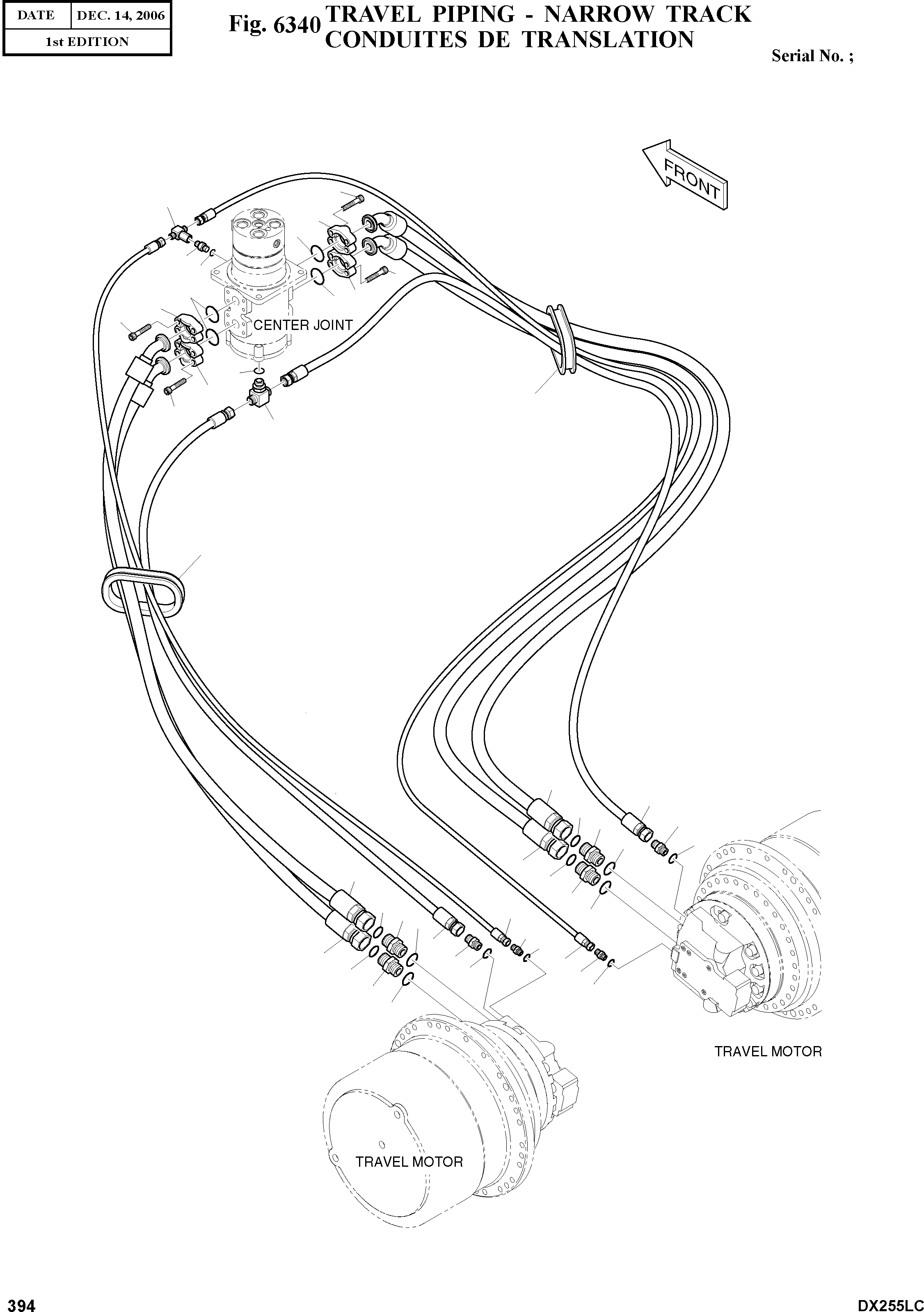

Запчасти Doosan Daewoo TRAVEL PIPING - NARROW TRACK OPTIONAL PARTS

-

K1010176

UNDER CARRIAGE PIPING

SC: D

-2шт.

1

DS2017046

HOSE

desc: TUYAU FLEXIBLE

2шт.

2

DS2017047

HOSE

desc: TUYAU FLEXIBLE

2шт.

3

DS2053393

HOSE

desc: TUYAU FLEXIBLE

2шт.

4

DS2094007

HOSE

desc: TUYAU FLEXIBLE

2шт.

5

2181-9081

FLANGE;SPLIT

desc: BRIDE

8шт.

6

S2215466

BOLT;SOCKET M12X1.75X40

desc: BOULON A 6 PANS CREUX

16шт.

7

2180-1026D19

O-RING

desc: JOINT TORIQUE

4шт.

8

DS2232003

ADAPTER

desc: ADAPTEUR

4шт.

9

S8030121

O-RING

desc: JOINT TORIQUE

4шт.

10

S8000291

O-RING

desc: JOINT TORIQUE

4шт.

11

2181-2281D10

TEE

desc: TE

1шт.

12

2181-1126D6

ADAPTER

desc: ADAPTEUR

2шт.

13

S8000181

O-RING

desc: JOINT TORIQUE

3шт.

14

2181-4125

TEE

desc: TE

1шт.

15

2181-1126D14

ADAPTER

desc: ADAPTEUR

3шт.

16

S8000111

O-RING

desc: JOINT TORIQUE

3шт.

17

2160-1172

BUSHING;RUBBER

desc: DOUILLE EN CAOUTCHOUC

2шт.
