Запчасти Doosan Daewoo SUPPORT BODY PARTS

-

K1014067B

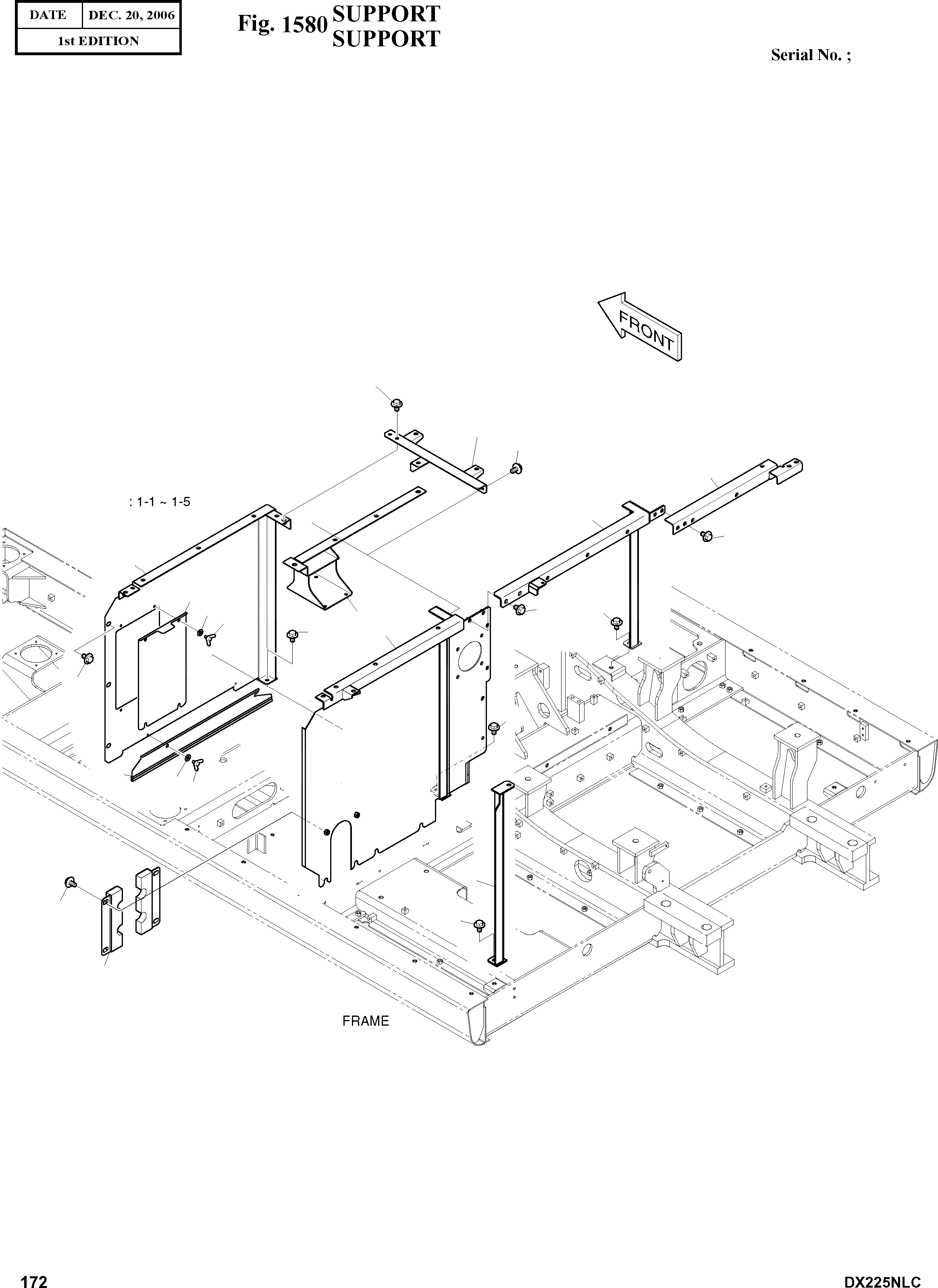

SUPPORT & BAFFLE ASS'Y

SC: D

-2шт.

1

195-02742H

SUPPORT ASS'Y

desc: ENSEMBLE DE SUPPORTS

1шт.

1-1

195-02534C

SUPPORT

desc: . SUPPORT

1шт.

1-2

K1000806A

COVER

desc: . COUVERCLE

1шт.

1-3

621-02891

COVER

desc: . COUVERCLE

1шт.

1-4

S3050843

BOLT;WING

desc: . BOULON A AILES

6шт.

1-5

S5010513

WASHER

desc: . RONDELLE

6шт.

2

K1014499B

SUPPORT

desc: SUPPORT

1шт.

3

K1014500A

SUPPORT

desc: SUPPORT

1шт.

4

K1014669

SUPPORT

desc: SUPPORT

1шт.

6

K1014503A

SUPPORT

desc: SUPPORT

1шт.

7

K1014502

SUPPORT

desc: SUPPORT

1шт.

8

195-03434B

SUPPORT

desc: SUPPORT

1шт.

18

DS0025015

BOLT;SET

desc: BOULON

16шт.

22

DS0025022

BOLT;SET

desc: BOULON

6шт.

23

K1015044A

COVER;BAFFLE

desc: COUVERCLE

2шт.
