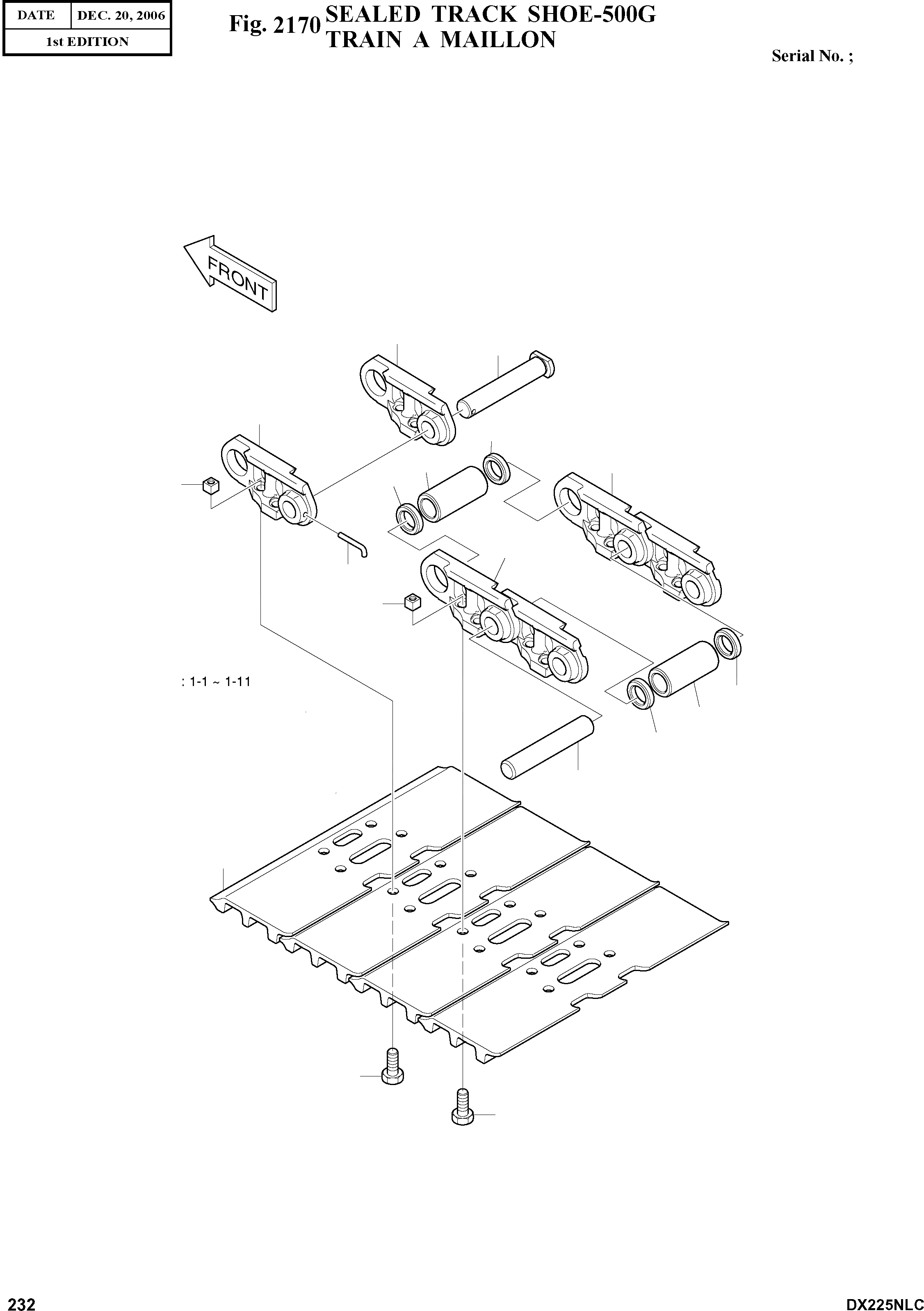

Запчасти Doosan Daewoo SEALED TRACK SHOE-500G TRACK PARTS

-

273-00120

SEALED TRACK SHOE ASS'Y

desc: TRAIN A MAILLON

2шт.

1

272-00054

TRACK LINK ASS'Y

desc: ARTICULATION

1шт.

1-1

2272-6104R

LINK(R.H)

desc: . ARTICULATION

48шт.

1-2

2272-6104L

LINK(L.H)

desc: . ARTICULATION

48шт.

1-3

2272-6105R

LINK;MASTER(R.H)

desc: . ARTICULATION

1шт.

1-4

2272-6105L

LINK;MASTER(L.H)

desc: . ARTICULATION

1шт.

1-5

2123-6060

PIN

desc: . GOUPILLE

48шт.

1-6

110-00226

BUSHING

desc: . DOUILLE

48шт.

1-7

2123-6061

PIN;MASTER

desc: . GOUPILLE

1шт.

1-8

2110-6052

BUSHING;MASTER

desc: . DOUILLE

1шт.

1-9

180-00441

SEAL;DUST

desc: . BAGUE D'ETANCHEITE

96шт.

1-10

2114-6035

SPACER

desc: . ENTERTOISE

2шт.

1-11

2123-6062

PIN

desc: . GOUPILLE

1шт.

2

2120-6017

BOLT

desc: BOULON

196шт.

3

2121-6017

NUT

desc: ECROU

196шт.

4

273-00118

SHOE;500G

desc: SABOT

49шт.
