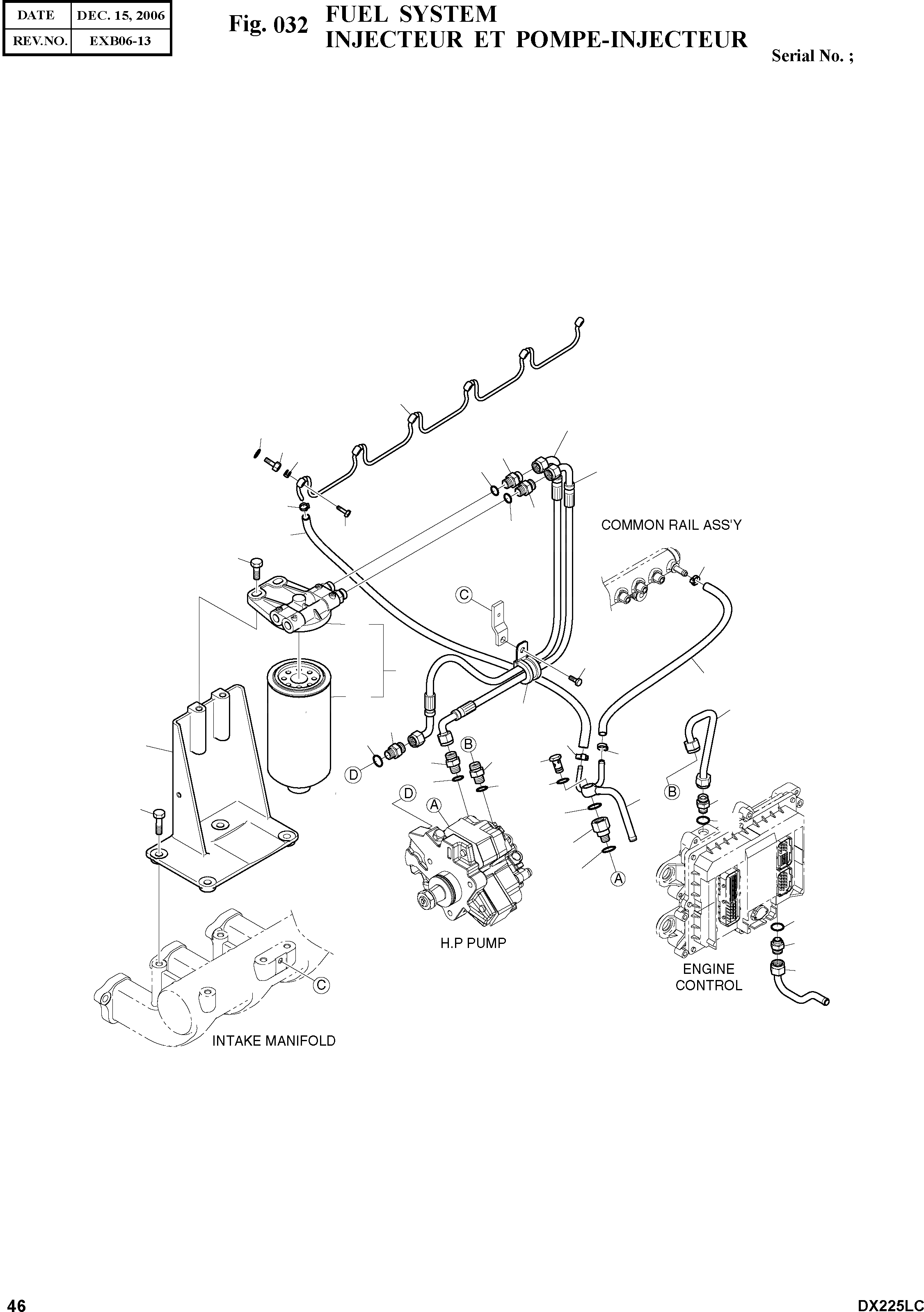

Запчасти Doosan Daewoo FUEL SYSTEM ENGINE PARTS
31
2
33
32
56
30
57
1
36
56
57
34
35
53
9
51
38
50
8
52
14
37
3
4
36
54
15
9
10
5
6
16
13
7
14
55
13
15
11
12
19
18
17
1
65.96340-5079
HOSE
desc: TUYAU FLEXIBLE
1шт.
2
65.96340-5080
HOSE
desc: TUYAU FLEXIBLE
1шт.
3
65.98130-0211
ADAPTER
desc: ADAPTEUR
1шт.
4
06.56190-0704
SEAL RING A12X18
desc: BAGUE D'ETANCHEITE
1шт.
5
65.98130-0229
ADAPTER
desc: RACCORD ADAPTATEUR
1шт.
6
06.56190-0706
SEAL RING A14X20
desc: BAGUE D'ETANCHEITE
1шт.
7
65.12301-5291
PIPE;FUEL
desc: CONDUITE
1шт.
8
65.96330-0018
HOSE;RUBBER;RING JOINT
desc: TUYAU CAOUTCHOUC
1шт.
9
65.97440-0045
CLAMP;HOSE
desc: COLLIER
2шт.
10
06.78144-2204
HOLLOW SCREW NW10
desc: VIS CREUSE
1шт.
11
65.98130-0159A
ADAPTER
desc: ADAPTEUR
1шт.
12
06.56190-0704
SEAL RING A12X18
desc: BAGUE D'ETANCHEITE
1шт.
13
06.56190-0706
SEAL RING A14X20
desc: BAGUE D'ETANCHEITE
2шт.
14
65.12301-5289
PIPE;FUEL
desc: CONDUITE
1шт.
15
65.98130-0229
ADAPTER
desc: RACCORD ADAPTATEUR
2шт.
16
06.56190-0706
SEAL RING A14X20
desc: BAGUE D'ETANCHEITE
2шт.
17
65.12301-5268
PIPE;FUEL
desc: CONDUITE
1шт.
18
65.98130-0229
ADAPTER
desc: RACCORD ADAPTATEUR
1шт.
19
06.56190-0706
SEAL RING A14X20
desc: BAGUE D'ETANCHEITE
1шт.
30
65.96507-0055
RING;SEAL
desc: BAGUE
6шт.
31
65.12301-5288A
PIPE;FUEL
desc: CONDUITE
1шт.
32
65.98130-0154
ADAPTER
desc: ADAPTEUR
6шт.
33
06.56180-0712
RING;SEAL
desc: BAGUE D'ETANCHEITE
6шт.
34
65.98150-0042A
HOLLOW SCREW
desc: VIS CREUSE
6шт.
35
65.96301-0462
HOSE;RUBBER
desc: TUYAU FLEXIBLE
1шт.
36
65.97440-0045
CLAMP;HOSE
desc: COLLIER
2шт.
37
65.97401-5019
CLIP;PIPE
desc: ATTACHE
1шт.
38
06.01923-3111
BOLT M8X16
desc: BOULON A 6 PANS
1шт.
50
65.12501-7042
FUEL FILTER ASS'Y
SERIAL: 061108
1шт.
50
65.12501-7042A
FUEL FILTER ASS'Y
SERIAL: 061109
1шт.
51
65.12504-5022
COVER;FUEL FILTER
SERIAL: 061108
1шт.
51
65.12504-5027
COVER;FUEL FILTER
SERIAL: 061109
1шт.
52
65.12503-5026
FILTER;FUEL
desc: . FILTRE A GAZOLE
1шт.
53
06.01923-3217
BOLT ASS'Y M10X30
desc: BOULON A 6 PANS
2шт.
54
65.12540-0057B
BRACKET;FUEL FILTER
SERIAL: 061120
1шт.
54
65.12540-0057C
BRACKET;FUEL FILTER
SERIAL: 061121
1шт.
55
06.01913-3216
BOLT M10X28
desc: BOULON A 6 PANS
4шт.
56
65.98130-0229
ADAPTER
desc: RACCORD ADAPTATEUR
2шт.
57
06.56190-0706
SEAL RING A14X20
desc: BAGUE D'ETANCHEITE
2шт.
