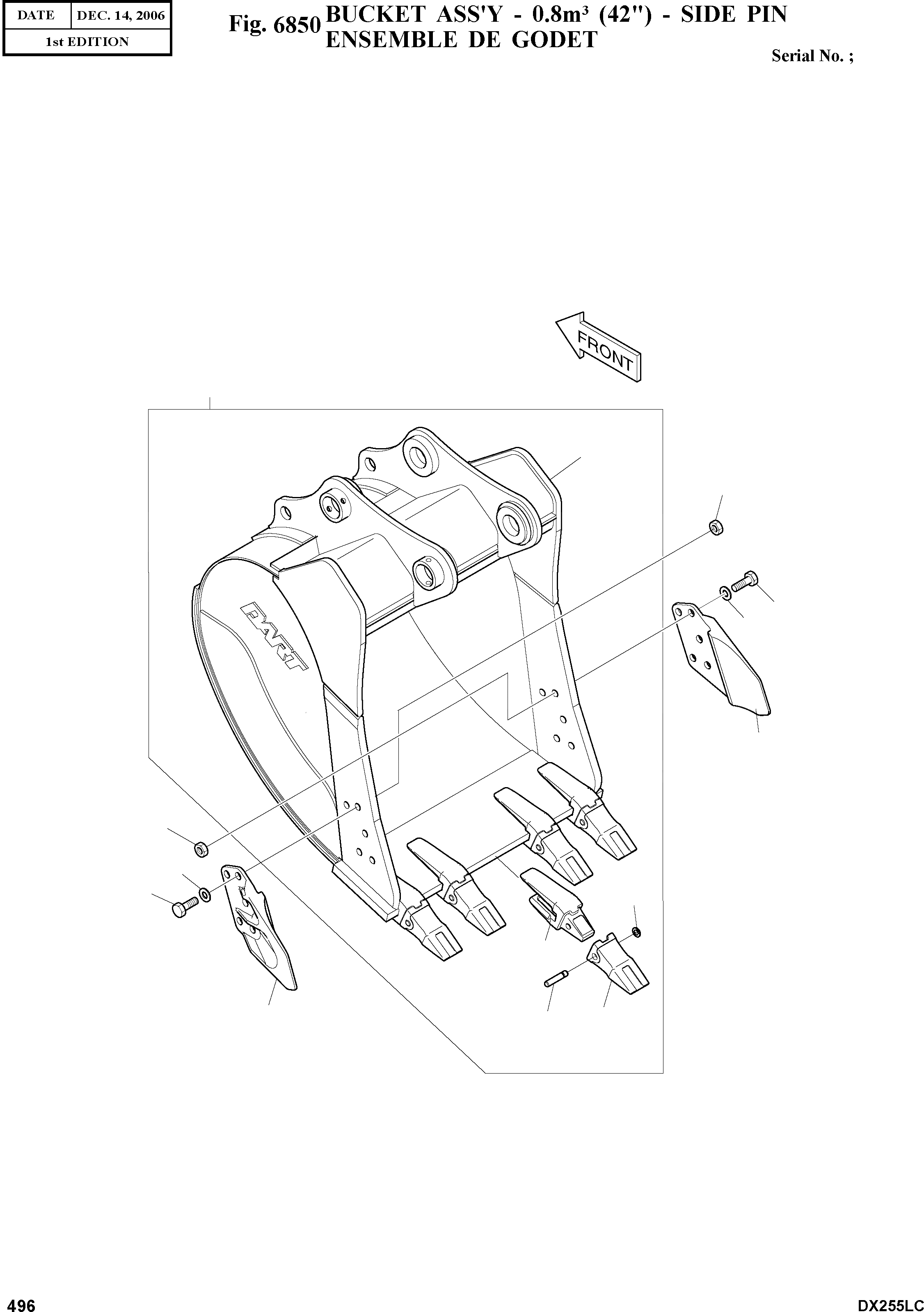

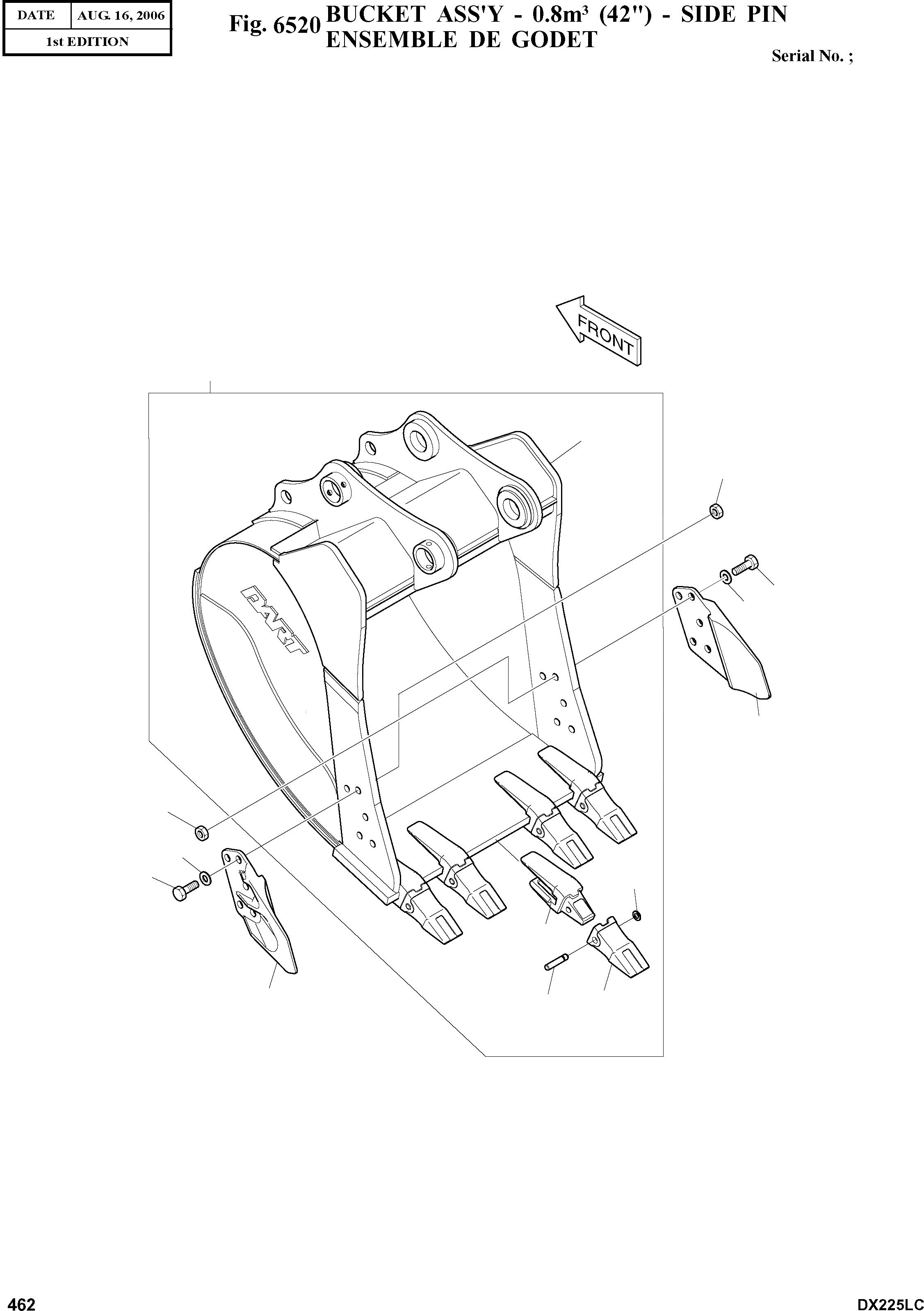

Запчасти Doosan Daewoo BUCKET ASSY - 0.8M©ш(42") - SIDE PIN OPTIONAL PARTS

-

K1013103

BUCKET ASS'Y-0.8§©

desc: ENSEMBLE GODET

1шт.

1

K1013104

BUCKET;WITH TOOTH-0.8§©

SC: D

1шт.

1A

K1013105

BUCKET;WELD-0.8§©

desc: . GODET

1шт.

1AA

2713-1218

ADAPTER;TOOTH

desc: .. DENT DE ADAPTEUR

5шт.

1B

713-00024

TOOTH;POINT

desc: . DENT

5шт.

1C

2705-1020

PIN;LOCKING

desc: . GOUPILLE

5шт.

1D

2114-1848A

WASHER;LOCKING

desc: . RONDELLE

5шт.

2

2713-1059A

CUTTER;SIDE(R.H)

desc: COIN DE GODET DROIT

1шт.

3

2713-1060A

CUTTER;SIDE(L.H)

desc: COIN DE GODET DROIT

1шт.

4

S0574861

BOLT

desc: BOULON A 6 PANS

10шт.

5

S4013333

NUT

desc: ECROU

10шт.

6

2114-1831A

WASHER;HARD

desc: RONDELLE ELASTIQUE

10шт.
