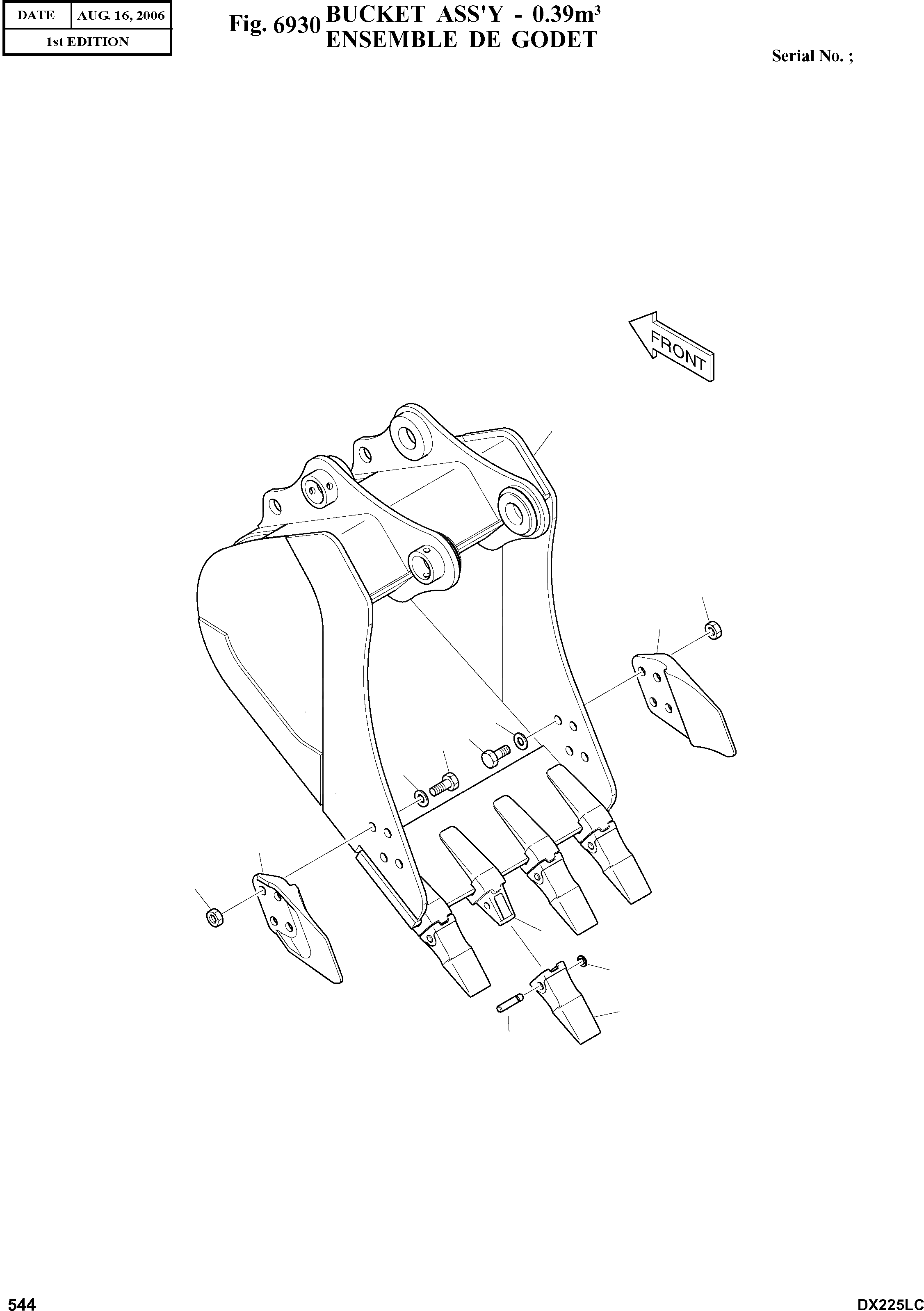

Запчасти Doosan Daewoo BUCKET ASSY - 0.39M©ш OPTIONAL PARTS

-

K1007635A

BUCKET ASS'Y- 0.39§©

desc: GODET

1шт.

1

K1007636A

BUCKET - 0.39§©

desc: GODET

1шт.

1A

2713-1222A

ADAPTER;TOOTH

desc: . DENT DE ADAPTEUR

4шт.

2

713-00057A

POINT;TOOTH

desc: DENT

4шт.

3

2705-1022

PIN;LOCKING

desc: GOUJON

4шт.

4

2114-1859

WASHER;LOCKING

desc: RONDELLE

4шт.

5

2713-1229A

CUTTER;SIDE(L.H)

desc: COIN DE GODET DROIT

1шт.

6

2713-1228A

CUTTER;SIDE(R.H)

desc: COIN DE GODET DROIT

1шт.

7

S0574561

BOLT

desc: BOULON A 6 PANS

8шт.

8

S4013333

NUT

desc: ECROU

8шт.

9

2114-1831A

WASHER;HARDEN

desc: RONDELLE

8шт.
