Запчасти Case TL200 (20) - HYDROSTATIC TRANSMISSION AND TRANSAXLE

1

H658724

TRANSMISSION

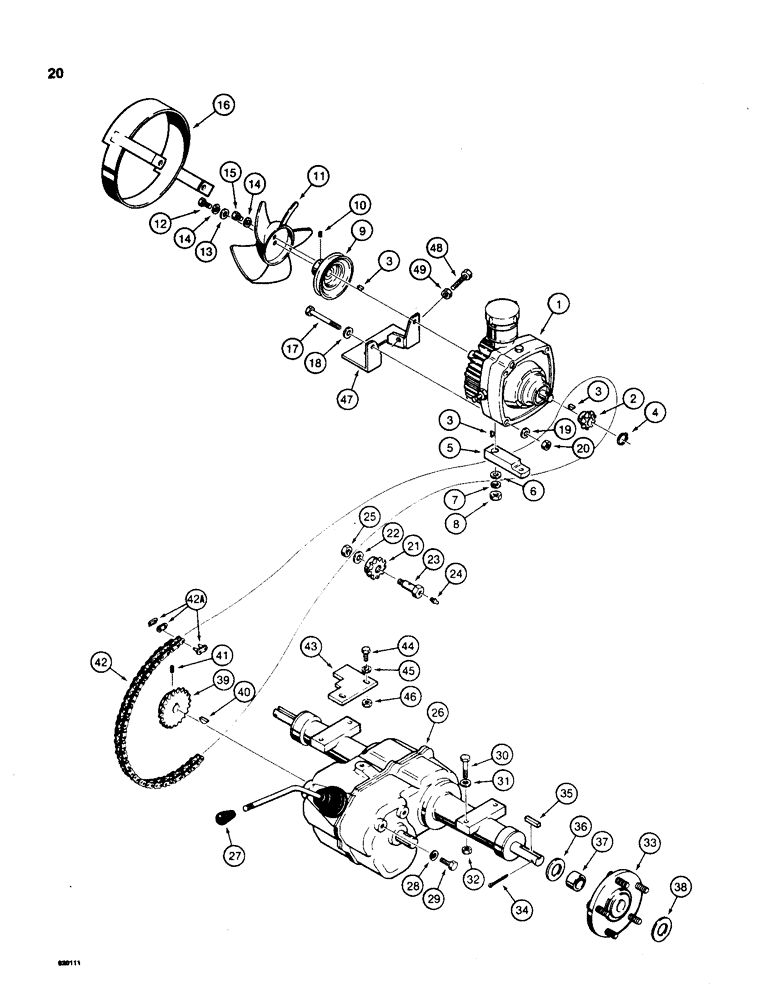

HYDROSTATIC TRANSMISSION - parts list Figure 24

1шт.

2

H408682

DRIVE SPROCKET

SPROCKET - hydrostatic transmission

1шт.

3

126-109

WOODRUFF KEY,#3, 1/8" x 1/2", HT

3шт.

4

C15585

RING, SNAP

SNAP RING - sprocket retaining

1шт.

5

H407668

ARM - hydrostatic transmission control

1шт.

6

195-525

WASHER,3/8", SAE

- flat, 3/8"

1шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

8

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

9

H406801

SHEAVE

- hydrostatic transmission

1шт.

10

84-46

SCREW,Hex Socket, 1/4" - 28 x 3/8"

SET SCREW - 1/4" - 28 NF x 3/8", cup point

2шт.

11

H406793

FAN

- hydrostatic transmission cooling

1шт.

12

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

13

195-518

WASHER,1/4", SAE

- flat, 1/4"

1шт.

14

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

15

114-2

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

- hex head, 1/4" - 28 NF x 1/2"

1шт.

16

H655696

SHROUD - fan

1шт.

17

113-247

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

Hydrostatic transmission mounting Hex, 3/8"-16 x 3 1/4", G5

4шт.

18

196-1

WASHER,13/32" x 13/16" x .089", HDN

- flat, 3/8"

4шт.

19

D41740

WASHER

- flat, 3/8", hardened

4шт.

20

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC

4шт.

21

H634808

WHEEL (STEERING)

SPROCKET - idler

1шт.

22

H274894

WASHER

- flat, 1/2", hardened

1шт.

23

H340216

BOLT (SPREADER)

BOLT - special idler

1шт.

24

219-11

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Straight, Taper 1/4"-28 NPT x .94" lg

1шт.

25

131-1308

JAM NUT,Jam, 1/2"-13

JAM NUT - 1/2" - 13 NC

1шт.

26

H601906

TRANSAXLE - parts list Figure 28

1шт.

27

A14051

GRIP

KNOB - transaxle shift lever

1шт.

28

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

29

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

30

1132220

FITTING

BOLT - hex head, 3/8" - 16 NC x 1-3/8", grade 8

4шт.

31

D41740

WASHER

- flat, 3/8"

4шт.

32

131-1216

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

4шт.

33

H602268

HUB CAP

HUB ASSEMBLY - axle

2шт.

34

132--307

COTTER PIN - 1/4" x 1-3/4"

2шт.

35

H380030

KEY

- square, 1/4" x 1-3/8"

2шт.

36

195-454

WASHER,1.140" x 1 7/8" x .032"

- special, inner

2шт.

37

H288001

SPACER

- axle

2шт.

38

195-553

WASHER,1", SAE

- flat, 1", outer

2шт.

39

H298448

DRIVE SPROCKET

SPROCKET - transaxle drive

1шт.

40

126-116

WOODRUFF KEY,#9, 3/16" x 3/4", HT

1шт.

41

83-46

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

- 1/4" - 20 NC x 3/8"

2шт.

42

H758847

CHAIN (AG)

CHAIN - roller, No. 40, transaxle drive, Includes: Ref. 42A

1шт.

42a

B12501

LINK

- connecting, H758847 chain

1шт.

43

H417253

PLATE - stop

1шт.

44

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

45

195-521

WASHER,5/16", SAE

- flat, 5/16"

2шт.

46

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, 5/16" - 18 NC

2шт.

47

H658039

BRACKET

- hydrostatic transmission

1шт.

48

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

49

425-145

JAM NUT,Jam, 5/16"-18, G5

2шт.
