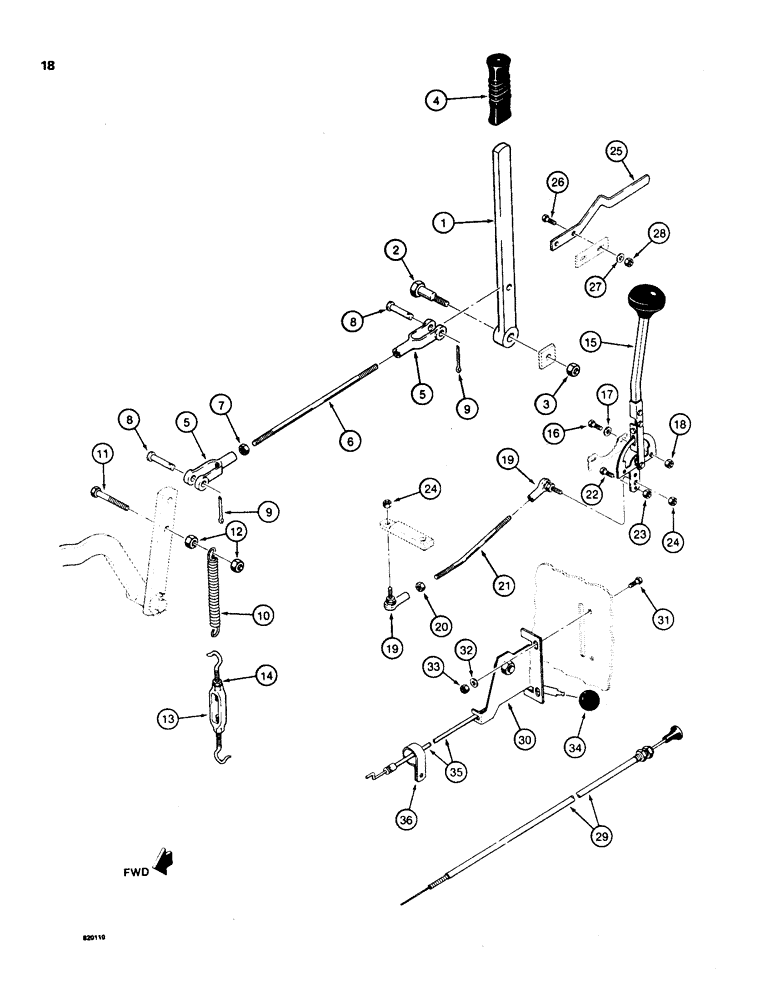

Запчасти Case TL200 (18) - CONTROLS

1

H665760

CONTROL LEVER - digging chain clutch

1шт.

2

H423251

SHAFT - control lever pivot

1шт.

3

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC

1шт.

4

H31773

HANDLE

GRIP - control lever

1шт.

5

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS - 3/8"

2шт.

6

H407437

ROD

- control

1шт.

7

86585245

SPECIAL NUT,JAM, 5/8" - 18

- hex, jam, 3/8" - 24 NF

1шт.

8

H25957

CLEVIS COUPLING

CLEVIS PIN - 213-4 clevis

2шт.

9

132-334

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

10

H43216

VALVE SPRING

SPRING - clutch lever tension

1шт.

11

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

12

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

13

H413559

TURNBUCKLE

- clutch lever tension

1шт.

14

425-145

JAM NUT,Jam, 5/16"-18, G5

1шт.

15

H663625

LEVER

CONTROL LEVER ASSEMBLY - propulsion

1шт.

16

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

17

195-518

WASHER,1/4", SAE

- flat, 1/4"

2шт.

18

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

19

H289652

BALL JOINT,5/16" - 24 x 1-3/8" L

JOINT - control rod

2шт.

20

86637933

JAM NUT,5/16" - 24, Gr 5

Jam, 5/16"- 24, G5

1шт.

21

H407445

ROD

- control

1шт.

22

26-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

- hex head, 1/4" - 20 NC x 3/4", grade 8

1шт.

23

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

1шт.

24

131-1169

LOCK NUT,5/16"-24, GA

NUT - hex, self-locking, 5/16" - 18 NC

2шт.

25

H363911

STOP

LATCH - safety

1шт.

26

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

27

195-518

WASHER,1/4", SAE

- flat, 1/4"

2шт.

28

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

29

H501916

CABLE

ASSEMBLY - choke control

1шт.

30

H581736

CONTROL BLOCK

LEVER ASSEMBLY - throttle control

1шт.

31

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

32

195-518

WASHER,1/4", SAE

- flat, 1/4"

2шт.

33

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

34

H244434

KNOB

- throttle control lever

1шт.

35

H323667

CABLE PULLING GRIP

CABLE ASSEMBLY - throttle control

1шт.

36

L73714

CLAMP

- throttle cable

1шт.
