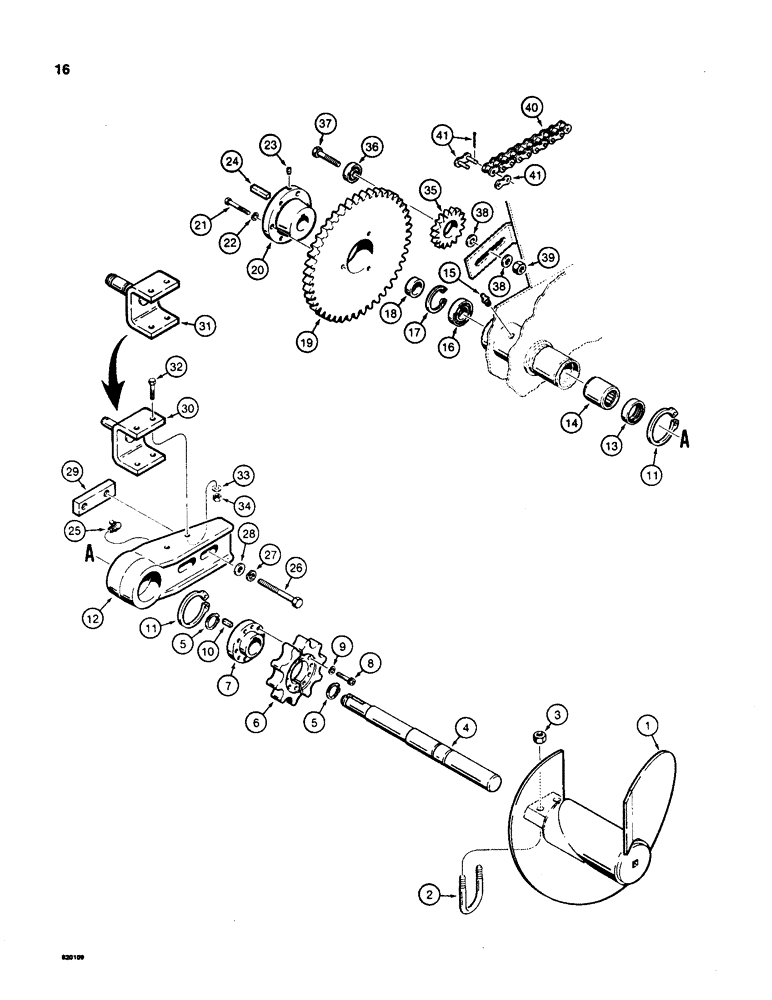

Запчасти Case TL200 (16) - AUGER, SHAFT, AND SPROCKETS

1

H604009

AUGER

- dirt

1шт.

2

H34439

U-BOLT

-, Serial Range: auger-shaft

1шт.

3

131-1153

LOCK NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

2шт.

4

H407528

SHAFT

- head, digging chain drive

1шт.

5

R13338

SNAP RING,#150, Ext

RING, Snap, , sprocket #150, Ext

2шт.

6

H417386

DRIVE SPROCKET

SPROCKET - digging chain drive

1шт.

7

H417378

HUB CAP

HUB - sprocket

1шт.

8

61-524

HEX SOC SCREW,5/16"-18 x 1 1/2"

BOLT - hex head, 5/16" - 18 NC x 1-1/2"

10шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

10шт.

10

H404012

KEY

- square, 5/16" x 7/8"

1шт.

11

H746651

SNAP RING,#262, Ext

RING, Snap, , boom pivot #262, Ext

2шт.

12

H309385

BOOM

PIVOT - boom

1шт.

13

H749127

SEAL

- bearing

1шт.

14

F7356

NEEDLE BEARING,Needle, 38.1mm ID x 47.63mm OD x 22.23mm W

- inner

1шт.

15

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

16

38742

BALL BEARING

BALL BEARING - outer

1шт.

17

A10506

SNAP RING,2.44", Int, #244

Ring, Snap, , brg 2.44", Int, #244

1шт.

18

H409177

SPACER

- bearing

1шт.

19

H407478

GEAR WHEEL

SPROCKET - driven, 45 teeth

1шт.

H407486

GEAR WHEEL

BUSHING ASSEMBLY - sprocket, Includes: Refs. 20-23

1шт.

20

NSS

NOT SOLD SEPARAT

BUSHING - sprocket

1шт.

21

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

22

192-161

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

23

83-68

SET SCREW,Hex Soc, 3/8"-16 x 1/2"

- 3/8" - 16 NC x 1/2", cup point

1шт.

24

H262394

KEY

- square, 5/16" x 1-7/8"

1шт.

25

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

26

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

2шт.

27

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

28

195-541

WASHER,5/8", SAE

- flat, 5/8"

2шт.

29

H306191

PLATE ASSY.

PLATE - lock

1шт.

30

H662403

ARM

ASSEMBLY - manual lift, if used

1шт.

31

H662858

ARM ASSEMBLY - electrical lift, if used

1шт.

32

113-2260

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8, Full Thd

- hex head, 3/8" - 16 NC x 1-1/4", grade 8

4шт.

33

196-1

WASHER,13/32" x 13/16" x .089", HDN

- flat, 5/8", hardened

4шт.

34

131-1216

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

4шт.

35

H747386

DRIVE SPROCKET

SPROCKET - idler

1шт.

36

T20623

BEARING ASSY,0.64" ID x 1.5748" OD x 0.72"

BALL BEARING - idler sprocket

1шт.

37

113-620

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex head, 5/8" - 11 NC x 2-1/4"

1шт.

38

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - flat, 5/8", hardened

2шт.

39

131-1130

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8" - 11 NC

1шт.

40

D65365

CHAIN (CE)

CHAIN - roller, No. 60, auger drive, Includes: Ref. 41

1шт.

41

D83132

LINK

- connecting, D65365 chain

1шт.
