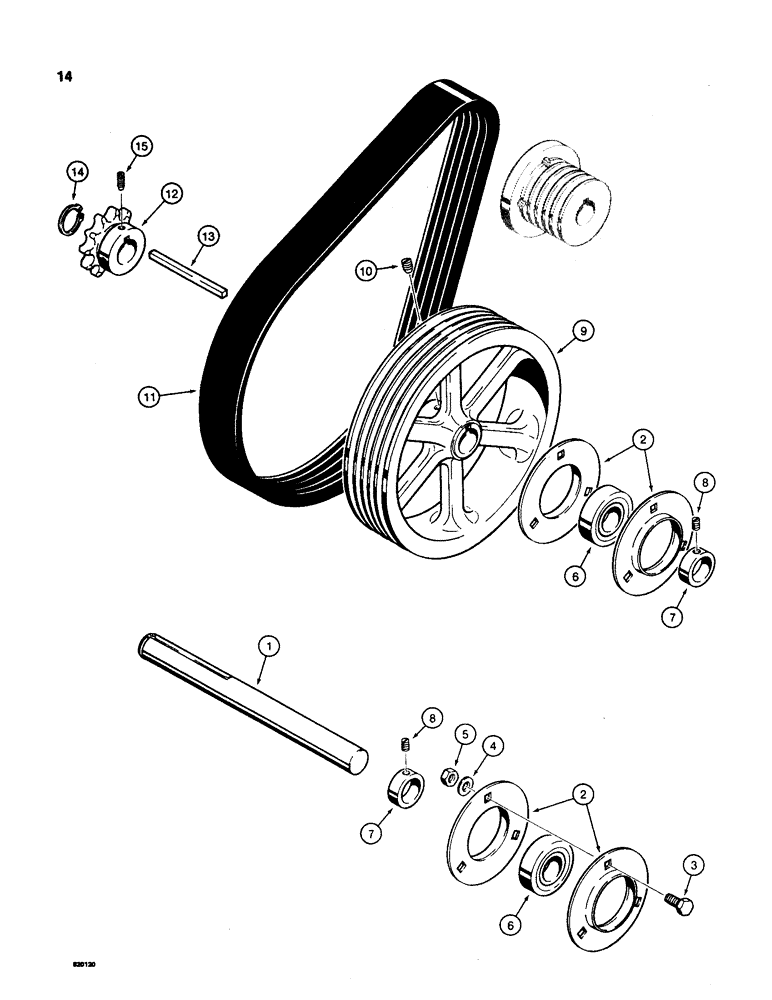

Запчасти Case TL200 (14) - JACKSHAFT AND SHEAVE

1

H407536

JACKSHAFT

- driven sheave

1шт.

2

H747188

FLANGED BEARING,112.73 mm OD x 8.74 mm

FLANGE - bearing

4шт.

3

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

4

196-1

WASHER,13/32" x 13/16" x .089", HDN

- flat, 3/8"

6шт.

5

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC

6шт.

T36576

BALL BEARING,1.12" ID x 2.4409" OD

AND COLLAR ASSEMBLY - jackshaft, Includes: Refs. 6-8

2шт.

6

NSS

NOT SOLD SEPARAT

BALL BEARING - jackshaft

1шт.

7

NSS

NOT SOLD SEPARAT

COLLAR - lock

1шт.

8

NSS

NOT SOLD SEPARAT

SET SCREW - collar

1шт.

9

H418137

PULLEY

SHEAVE - jackshaft

1шт.

10

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

- 3/8" - 16 NC x 3/8", cup point

2шт.

11

H409102

V-BELT,0.38" W x 450.00 mm L, 5 Ribs

Drive, Jackshaft 0.38" W x 450.00 mm L, 5 Ribs

1шт.

12

H407460

DRIVE ASSY.

SPROCKET - chain drive, 11 teeth

1шт.

13

H423301

KEY

- square, 1/4" x 4"

1шт.

14

F62235

SNAP RING,#112, Ext

RING, Snap, , sprocket #112, Ext

1шт.

15

83-46

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

- 1/4" - 20 NC x 3/4", cup point

2шт.
