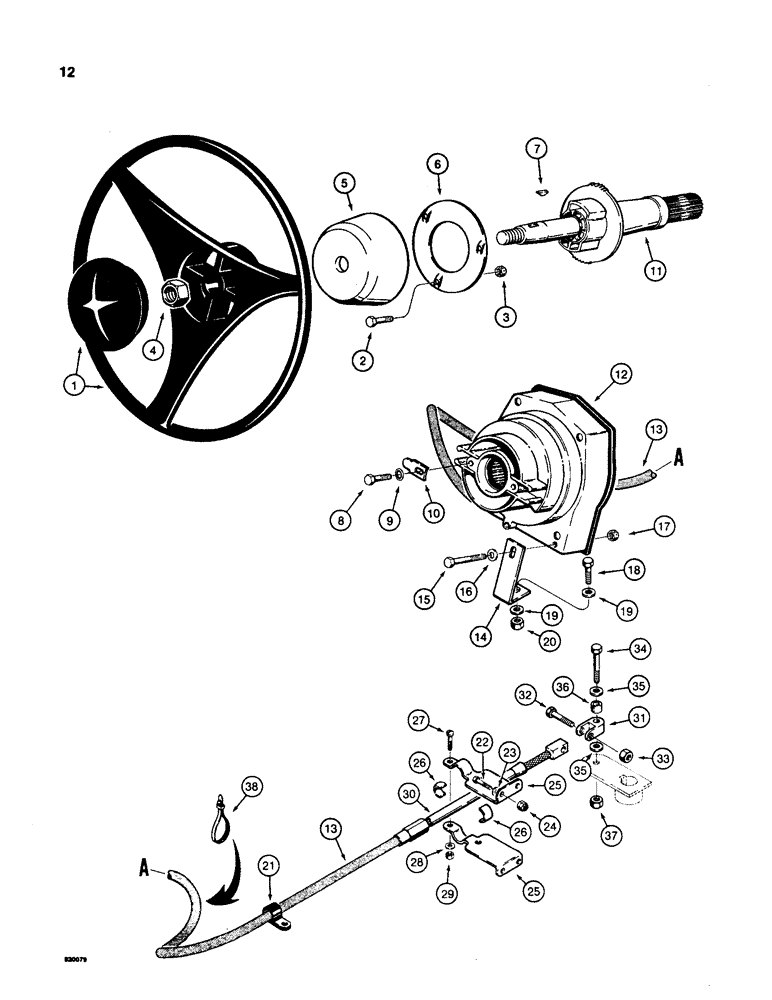

Запчасти Case TL200 (12) - STEERING WHEEL, COLUMN, AND LINKAGE

1

H663021

STEERING WHEEL - includes cap

1шт.

2

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

3шт.

3

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

3шт.

H663039

KIT - steering column mounting, Includes: Refs. 4-10

1шт.

Kit may contain extra parts not used on this machine.

1шт.

4

131-689

LOCK NUT,5/8"-11, GB

NUT - hex, self-locking, 5/8" - 18 NF

1шт.

5

H423624

COVER - steering column

1шт.

6

H423632

MOUNT - steering column

1шт.

7

126-13

WOODRUFF KEY,#61, 3/16" x 5/8"

(No. 605) #61, 3/16" x 5/8"

1шт.

8

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

9

193-28

LOCK WASHER,Int Tooth, 1/4"

WASHER - internal tooth lock, 1/4"

2шт.

10

H423640

RETAINER

- cable control

1шт.

11

H663013

STEERING COLUMN - trencher

1шт.

H663005

DRIVE ASSY.

CONTROL AND CABLE - steering, Includes: Refs. 12, 13

1шт.

12

H665950

X

CONTROL - for cable

1шт.

13

H665968

CABLE

- steering

1шт.

14

H417972

BRACKET - steering control mounting

2шт.

15

113-5

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"- 20 x 1 1/2", G5

2шт.

16

195-518

WASHER,1/4", SAE

- flat, 1/4"

2шт.

17

113-1180

NUT - hex, self-locking, 1/4" - 20 NC

2шт.

18

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

19

D41740

WASHER

- flat, special

4шт.

20

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC

2шт.

21

49836

CLAMP

- steering cable, at engine

1шт.

22

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

3шт.

23

195-521

WASHER,5/16", SAE

- flat, 5/16"

3шт.

24

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC

3шт.

H663054

KIT - cable connection, Includes: Refs. 25-37

1шт.

Kit may contain extra parts not used on this machine.

1шт.

25

H423657

BRACKET

CLAMP - cable, half

2шт.

26

H423665

HALF BEARING

SWIVEL - half

2шт.

27

71-512

SCREW,Slotted Fil Hd, 5/16"-18 x 3/4"

- round head slotted, 5/16" - 18 NC x 3/4"

2шт.

28

195-521

WASHER,5/16", SAE

- flat, 5/16"

2шт.

29

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC

2шт.

30

H423905

SLEEVE

- cable end

1шт.

31

H423673

PIVOT

SWIVEL - cable end

1шт.

32

114-201

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5, Full Thd

- hex head, 3/8" - 24 NF x 1-1/4"

1шт.

33

131-666

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8" - 24 NF

1шт.

34

114-216

BOLT,Hex, 3/8" - 24 x 2", Gr 5

- hex head, 3/8" - 24 NF x 2"

1шт.

35

195-2252

WASHER,.391" x 3/4" x .065"

- flat, 3/8"

2шт.

36

H423681

BUSHING

- swivel

1шт.

37

131-666

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8" - 24 NF

1шт.

38

R40745

STRAP

TIE STRAP - cable

2шт.
