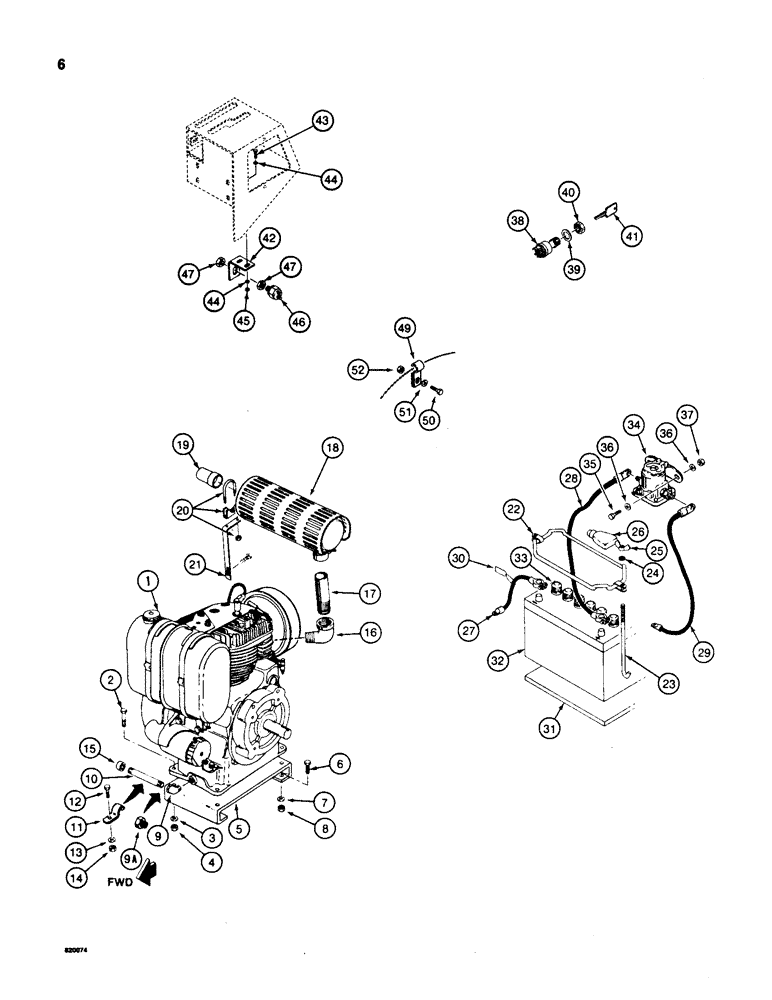

Запчасти Case TL200 (06) - ENGINE, EXHAUST SYSTEM, AND ELECTRICAL PARTS

1

H658781

ENGINE ASSEMBLY

ENGINE - Kohler, 12 hp, K301S Spec. 47743D

1шт.

See special Kohler Engine Owner's Manual for engine parts and service. Check Availability Manual for correct parts catalog number.

1шт.

2

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

3

195-525

WASHER,3/8", SAE

- flat, 3/8"

4шт.

4

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC

4шт.

5

H407809

BRACKET

- engine support

1шт.

6

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

7

D41740

WASHER

- flat, 3/8", special

4шт.

8

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC

4шт.

9

221-415

ELBOW,90 Degree, 3/4"-14, NPT

Street, engine drain 90º, 3/4"-14, NPT

1шт.

9a

221-92

REDUCER,Hex, 3/4" x 3/8" NPT

- 3/4" NPT to 3/8" NPT, if used

1шт.

10

221-229

NIPPLE, LUBE

NIPPLE - 3/4" NPT x 9", if used

1шт.

10

221-178

NIPPLE - 3/8" NPT x 9", if used

1шт.

11

H224444

CLAMP - pipe, used with 3/8" nipple only

1шт.

12

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, If used

1шт.

13

196-1

WASHER,13/32" x 13/16" x .089", HDN

- flat, 5/16", if used

1шт.

14

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, if used

1шт.

15

221-526

CAP

- pipe, 3/4" NPT, if used

1шт.

15

221-524

CAP,3/8" NPT

- pipe, , if used 3/8" NPT

1шт.

16

221-567

ELBOW

STREET ELBOW - 90 degree, engine exhaust

1шт.

17

H66266

PIPE

EXHAUST PIPE - vertical

1шт.

18

H602581

MUFFLER

- includes heat shield and exhaust pipe clamp

1шт.

19

H300988

PIPE CLAMP

EXTENSION - muffler exhaust

1шт.

20

G45410

CLAMP

- muffler extension

1шт.

21

H316521

BRACKET

SUPPORT - muffler, uses engine bolt

1шт.

22

H663732

BRACKET

- battery hold down

1шт.

23

H415059

ROD - J, battery hold down

2шт.

24

195-521

WASHER,5/16", SAE

- flat, 5/16"

2шт.

25

129-419

WING NUT,5/16"-18

NUT - wing, 5/16" - 18 NC

2шт.

26

H102681

COVER ASSY

COVER - battery terminal, positive

1шт.

27

H116996

CABLE PULLING GRIP

CABLE - battery, negative, ground

1шт.

28

H172304

NEG BATTERY CABLE

CABLE - battery, positive

1шт.

29

H185280

CABLE PULLING GRIP

CABLE -, Serial Range: solenoid-starter

1шт.

30

H198457

TAG

- ground cable, tie to ground cable

1шт.

31

H413179

PAD

- battery

1шт.

32

T40362

BATTERY

- 12 volt, service replacement, must be used with A60553

1шт.

When replacing battery, use the (6) nonspill caps from old battery or order (6) A60553 nonspill caps.

1шт.

33

A60553

CAP

- battery, nonspill

6шт.

nonspill caps, AABM group size 24

1шт.

33

A60553

CAP

- battery, nonspill

6шт.

34

D61168

SOLENOID

- starter

1шт.

35

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

36

195-518

WASHER,1/4", SAE

- flat, 1/4"

4шт.

37

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

38

A77312

SWITCH

- ignition

1шт.

39

F67231

WASHER

- special

1шт.

40

A77314

NUT

- ignition switch

1шт.

41

A77313

SET OF 2 KEYS

KEY - ignition switch, set of two

1шт.

42

H421305

ANGLE

BRACKET - neutral start switch

1шт.

43

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

44

195-521

WASHER,5/16", SAE

- flat, 5/16"

4шт.

45

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC

2шт.

46

H406363

NEUTRAL START SWITCH

SWITCH - neutral start

1шт.

47

H380386

NUT

- hex, special, 9/16" - 18 NF

2шт.

48

H658815

KIT

- wire, not shown

1шт.

49

H32698

CLIP

CLAMP - electric wire to cover plate

1шт.

50

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

51

195-518

WASHER,1/4", SAE

- flat, 1/4"

1шт.

52

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

1шт.
