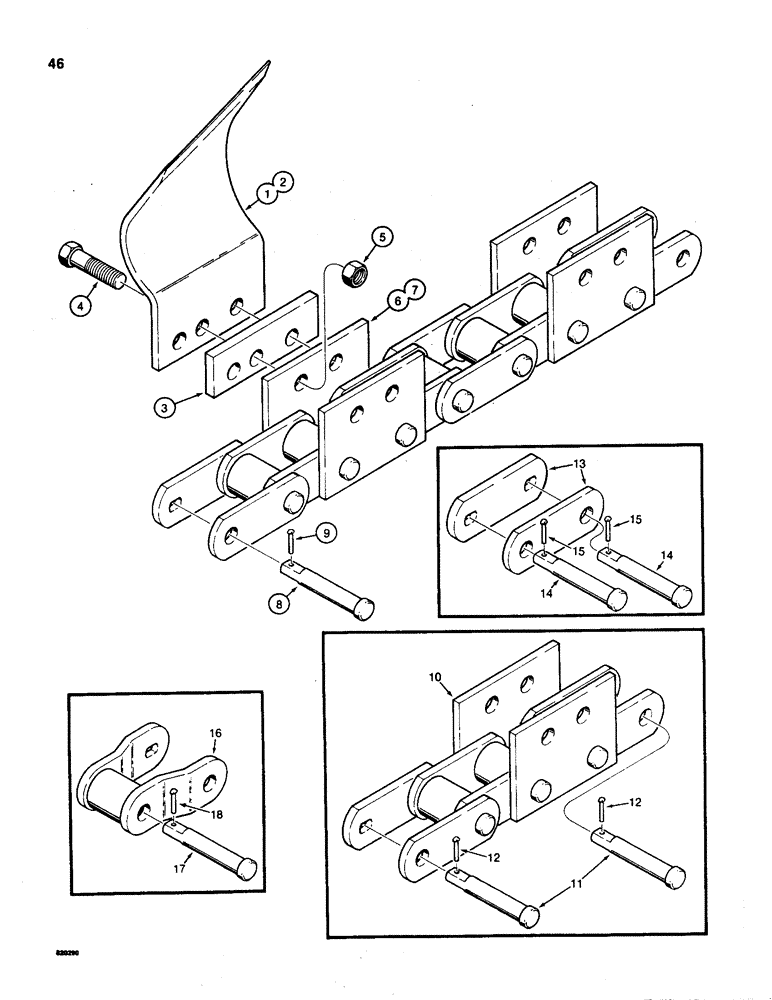

Запчасти Case TL200 (46) - DIGGING TEETH AND CHAIN

1

H208363

TOOTH

LH

7-9шт.

2

H208371

TOOTH

RH

7-9шт.

3

H208355

SPACER

Tooth

14-18шт.

4

114-252

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 8, Full Thd

28-36шт.

5

131-1133

NUT,3/8"-24, GC

28-36шт.

6

H501791

CHAIN (CE)

Digging, 56 pitches, used on 24" and 36" boom, for 36" boom also order ref. 7, includes refs. 8 and 9

1шт.

7

H519462

CHAIN (AG)

Digging, 8 pitches, used with ref. 6 on 36" boom, includes refs. 8 and 9

1шт.

8

H30072

CONNECTOR, ELEC

CONNECTOR

1шт.

H30072 - PIN IS A D-SHAPED PIN FOR A REX CHAIN. IF YOU ARE LOOKING FOR THE ROUND PIN FOR THE BALLANTINE CHAIN, YOU 0ORDER 253215A1 PIN.

1шт.

9

H85274

SPLIT PIN/SAFETY PIN

Retaining

1шт.

Interchangeable with COTTER PIN 132-334

1шт.

10

H502054

CHAIN (CE)

REPAIR SECTION - 4 pitches, Includes: Refs. 11, 12

1шт.

11

H30072

CONNECTOR, ELEC

CONNECTOR

2шт.

12

H85274

SPLIT PIN/SAFETY PIN

Retaining

2шт.

Interchangeable with COTTER PIN 132-334

1шт.

13

H504068

DRAG LINK

CONNECTOR - digging chain, Includes: Refs. 14, 15

1шт.

14

H30072

CONNECTOR, ELEC

CONNECTOR

2шт.

15

H85274

SPLIT PIN/SAFETY PIN

Retaining

2шт.

Interchangeable with COTTER PIN 132-334

1шт.

16

H59360

HALF-LINK

HALF LINK OFFSET - digging chain, Includes: Refs. 17, 18

1шт.

17

H30072

CONNECTOR, ELEC

CONNECTOR PIN

1шт.

18

H85274

SPLIT PIN/SAFETY PIN

Retaining

1шт.

Interchangeable with COTTER PIN 132-334

1шт.

132-334

COTTER PIN,1/8" x 3/4"

Interchangeable with H85274 retaining pin, if used

1шт.

H30072 - PIN IS A D-SHAPED PIN FOR A REX CHAIN. IF YOU ARE LOOKING FOR THE ROUND PIN FOR THE BALLANTINE CHAIN, YOU CAN ORDER 253215A1 PIN.

1шт.

PINS FOR BALLANTINE CHAIN 260 AND 325 ARE:

1шт.

(3) 257350A1 .565 x 2.718

1шт.

(4) 257351A1 .750 x 3.656

1шт.
