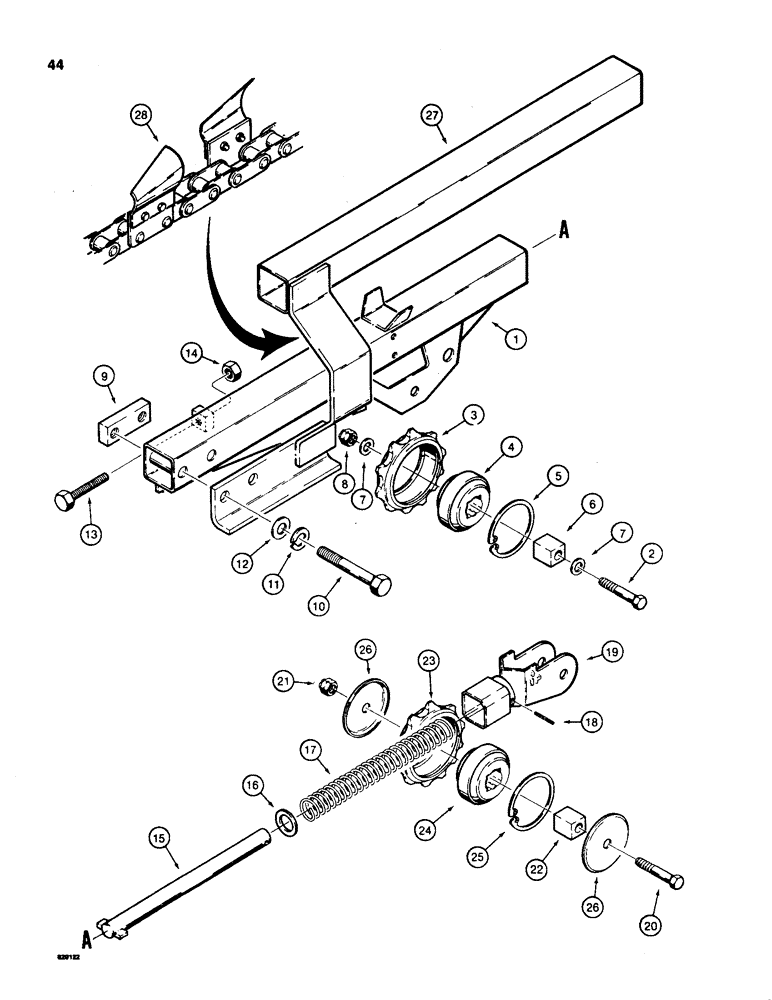

Запчасти Case TL200 (44) - SPROCKET BOOM AND SAFETY BAR

H564641

BOOM

ASSEMBLY - sprocket type, 24" (610 mm)

1шт.

H564658

BOOM

ASSEMBLY - sprocket type, 36" (914 mm), Includes: Refs. 1-8

1шт.

1

H564377

BOOM

- sprocket type, 24"

1шт.

1

H564849

BOOM

- sprocket type, 36"

1шт.

2

113-601

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

H503664

SPROCKET ASSY.

SPROCKET ASSEMBLY - boom, Includes: Refs. 3-5

1шт.

3

H33563

DRIVE SPROCKET

SPROCKET - boom

1шт.

4

H747139

BALL BEARING

- special

1шт.

5

H33837

RING

SNAP RING - ball bearing retaining

1шт.

6

H232645

BUSHING

- square

1шт.

7

195-108

WASHER,5/8"

- flat, 5/8"

2шт.

8

131-1130

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8" - 11 NC

1шт.

9

H306191

PLATE ASSY.

PLATE - lock

1шт.

10

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

2шт.

11

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

12

195-541

WASHER,5/8", SAE

- flat, 5/8"

2шт.

13

H42473

ADJUSTMENT SCREW,Spcl, 1/2" - 13 x 3 3/4", Gr 5

BOLT - special adjusting, 1/2" - 13 NC x 3-3/4"

1шт.

14

129-145

JAM NUT,Jam, 1/2"-13, G5

1шт.

H509828

BOOM

END ASSEMBLY - sprocket boom, Includes: Refs. 15-26

1шт.

H509836

BOOM

END ASSEMBLY - without sprocket, Includes: Refs. 15-19

1шт.

15

H509349

TUBE

GUIDE - spring

1шт.

16

H34199

WASHER

- spring stop

1шт.

17

H56713

VALVE SPRING

SPRING - end

1шт.

18

138-177

LOCK PIN,3/8" x 2", Slotted

PIN, 3/8" x 2", Slotted

1шт.

19

H33829

BRACKET

MOUNT - sprocket

1шт.

20

113-601

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

21

131-1130

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8" - 11 NC

1шт.

22

H232645

BUSHING

- square

1шт.

H503664

SPROCKET ASSY.

SPROCKET ASSEMBLY - end, Includes: Refs. 23-25

1шт.

23

H33563

DRIVE SPROCKET

SPROCKET - end

1шт.

24

H747139

BALL BEARING

- special

1шт.

25

H33837

RING

SNAP RING - ball bearing retaining

1шт.

26

H350785

WASHER

- special

2шт.

27

REF

INSTRUCTION

SAFETY BAR - used with 24" boom assembly, machinery item, see Figure 2 for ordering

1шт.

27

REF

INSTRUCTION

SAFETY BAR - used with 36" boom assembly, machinery item, see Figure 2 for ordering

1шт.

28

REF

INSTRUCTION

DIGGING TEETH AND CHAIN - see Figure 46

1шт.
