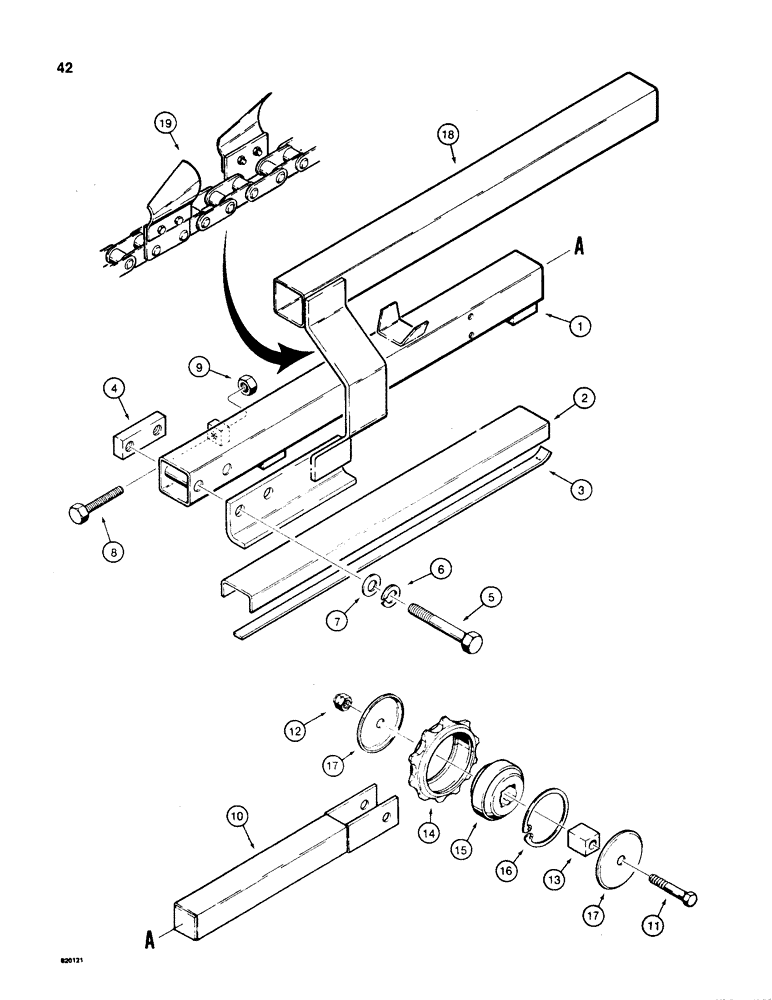

Запчасти Case TL200 (42) - CHANNEL BOOM AND SAFETY BAR

1

H616086

BOOM

ASSEMBLY - channel type, complete, 24" (610 mm), includes refs. 2 and 3 below

1шт.

2

H315523

GUIDE

CHANNEL - lower, welds to H616086 boom

1шт.

3

H315515

GUIDE

WEAR PLATE - welds to H315523 channel

1шт.

1

H613075

BOOM

ASSEMBLY - channel type, complete, 36" (914 mm), includes refs. 2 and 3 belo

1шт.

2

H308585

GUIDE

CHANNEL - lower, welds to H613075 boom

1шт.

3

H309401

GUIDE

WEAR PLATE - welds to H308585 channel

1шт.

4

H306191

PLATE ASSY.

PLATE - lock

1шт.

5

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

2шт.

6

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

7

195-541

WASHER,5/8", SAE

- flat, 5/8"

2шт.

8

H42473

ADJUSTMENT SCREW,Spcl, 1/2" - 13 x 3 3/4", Gr 5

BOLT - special adjusting, 1/2" - 13 NC x 3-3/4"

1шт.

9

129-145

JAM NUT,Jam, 1/2"-13, G5

1шт.

H614644

BOOM

END ASSEMBLY - channel boom, Includes: Refs. 10-17

1шт.

10

NSS

NOT SOLD SEPARAT

END - channel boom

1шт.

11

113-601

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

12

131-1130

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8" - 11 NC

1шт.

13

H232645

BUSHING

- square

1шт.

H503664

SPROCKET ASSY.

SPROCKET ASSEMBLY - end, Includes: Refs. 14-16

1шт.

14

H33563

DRIVE SPROCKET

SPROCKET - end

1шт.

15

H747139

BALL BEARING

- special

1шт.

16

H33837

RING

SNAP RING - ball bearing retaining

1шт.

17

H350785

WASHER

- special

2шт.

18

REF

INSTRUCTION

SAFETY BAR - used with 24" boom assembly, machinery item, see Figure 2 for ordering

1шт.

18

REF

INSTRUCTION

SAFETY BAR - used with 36" boom assembly, machinery item, see Figure 2 for ordering

1шт.

19

REF

INSTRUCTION

DIGGING TEETH AND CHAIN - see Figure 46

1шт.
