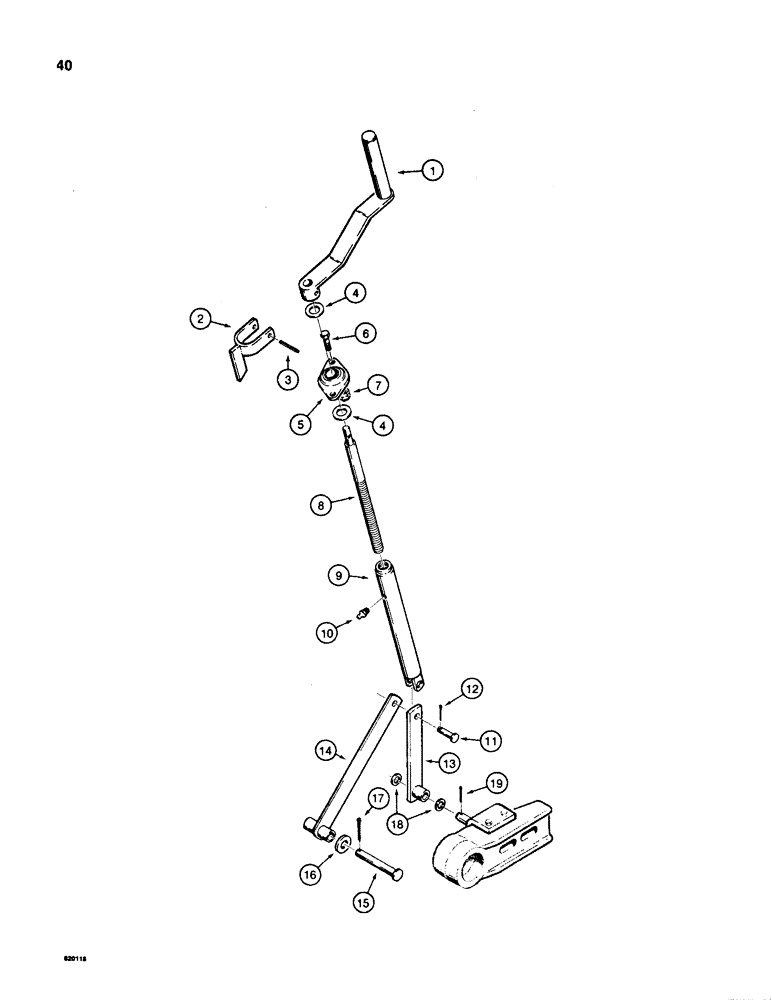

Запчасти Case TL200 (40) - BOOM LIFT PARTS - MANUAL

1

H603886

CRANK

- hand, boom lift and lower

1шт.

2

H604181

BRACKET

- stop

1шт.

3

138-143

LOCK PIN,1/4" x 2 1/4", Slotted

PIN, 1/4" x 2 1/4", Slotted

1шт.

4

C17256

BEARING

WASHER - special

2шт.

5

H623686

BALL

JOINT - hand crank

1шт.

6

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

7

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC

2шт.

8

H180745

DRIVE SCREW

SCREW - depth control

1шт.

9

H602888

TUBE,12.875" L

- threaded

1шт.

10

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

1шт.

11

H70151

CLEVIS PIN

- 5/8" x 1-3/4"

1шт.

12

132-318

COTTER PIN,5/32" x 1"

5/32" x 1"

1шт.

13

H625509

DRAG LINK

LINK - right-hand

1шт.

14

H607572

DRAG LINK

LINK - left-hand

1шт.

15

H177568

AXLE PIN

CLEVIS PIN - 3/4" x 4-3/8"

1шт.

16

195-545

WASHER,3/4", SAE

- flat, 3/4"

1шт.

17

132-348

COTTER PIN,1/4" x 1 1/4"

PIN, Split (Cotter), 1/4" x 1-1/4"

1шт.

18

195-545

WASHER,3/4", SAE

- flat, 3/4"

2шт.

19

132-311

COTTER PIN,5/32" x 1 1/4"

5/32" x 1-1/4"

1шт.
