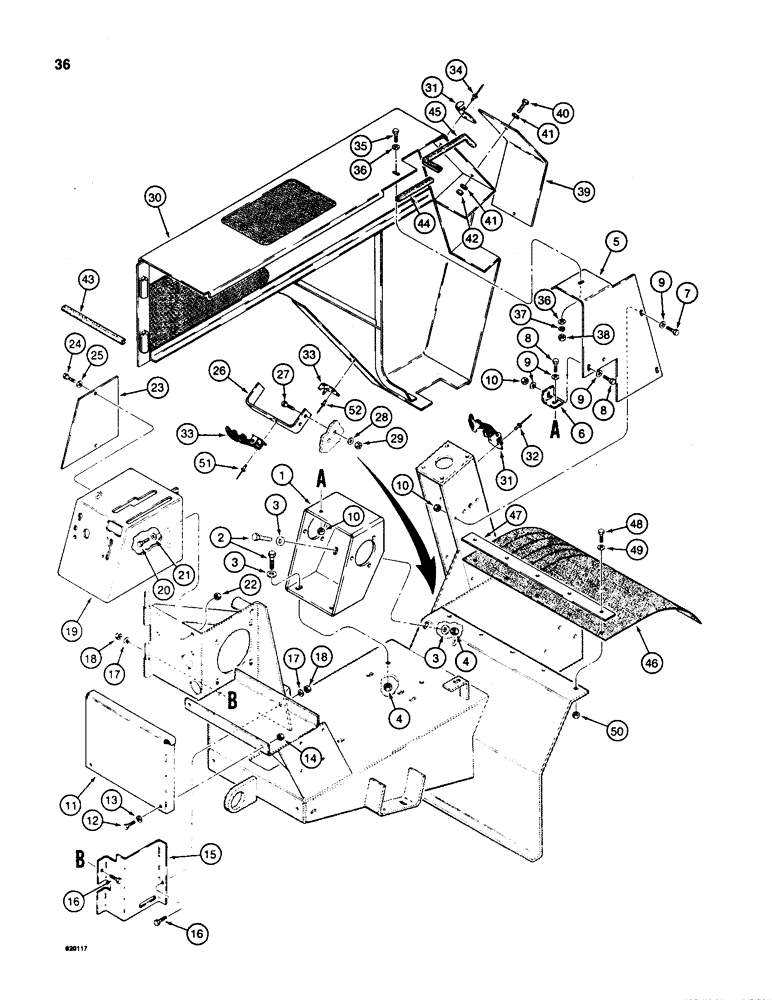

Запчасти Case TL200 (36) - COVERS AND PLATES

1

H657981

BRACKET

MOUNT ASSEMBLY - jackshaft

1шт.

2

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

3

H274894

WASHER

- flat, 1/2", hardened

6шт.

4

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2" - 13 NC

4шт.

5

H409888

PLATE

- sheave cover

1шт.

6

H419424

ANGLE

BRACKET - 90 degree, plate support

1шт.

7

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

8

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

9

195-521

WASHER,5/16", SAE

- flat, 5/16"

6шт.

10

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC

4шт.

11

H411488

PLATE

- instruction decal mounting, not used on models with steering wheel

1шт.

12

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

13

195-521

WASHER,5/16", SAE

- flat, 5/16"

2шт.

14

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC

2шт.

15

H407569

COVER

- chain

1шт.

16

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

17

195-521

WASHER,5/16", SAE

- flat, 5/16"

2шт.

18

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16"

2шт.

19

H657973

CONSOLE ASSEMBLY - controls

1шт.

20

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

21

195-521

WASHER,5/16", SAE

- flat, 5/16"

4шт.

22

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC

4шт.

23

H421297

PLATE - access cover

1шт.

24

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

25

195-521

WASHER,5/16", SAE

- flat, 5/16"

2шт.

26

H417055

BRACKET

- belt cover support

1шт.

27

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

28

195-521

WASHER,5/16", SAE

- flat, 5/16"

2шт.

29

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC

2шт.

30

H658542

COVER - belt

1шт.

31

H628263

LATCH ASSY.

LATCH ASSEMBLY - upper

1шт.

32

151-539

RIVET,Pop, 3/16" x .450"

POP RIVET - upper latch

2шт.

33

L55329

CATCH

LATCH ASSEMBLY - lower

1шт.

34

151-538

RIVET,Pop, 3/16" x .575"

POP RIVET - upper latch plate

2шт.

35

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

36

195-521

WASHER,5/16", SAE

- flat, 5/16"

2шт.

37

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

38

129-578

NUT,5/16"-18, G5

- hex, 5/16" - 18 NC

1шт.

39

H419440

PLATE

- cover, not used on models with steering wheel

1шт.

40

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

41

195-518

WASHER,1/4", SAE

- flat, 1/4"

4шт.

42

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

43

H413922

TRIM - edge, 220 mm long

1шт.

44

H413930

TRIM - edge, 105 mm long

1шт.

45

H421347

TRIM - edge, 260 mm long

1шт.

46

H297358

FLAP

- dirt

1шт.

47

H290536

STRIP

- back plate

1шт.

48

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

5шт.

49

195-521

WASHER,5/16", SAE

- flat, 5/16"

5шт.

50

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC

5шт.

51

151-540

RIVET

POP RIVET - lower latch

2шт.

52

151-543

RIVET,Pop, 3.17mm OD x 10.16mm L

POP RIVET - lower latch plate

2шт.
