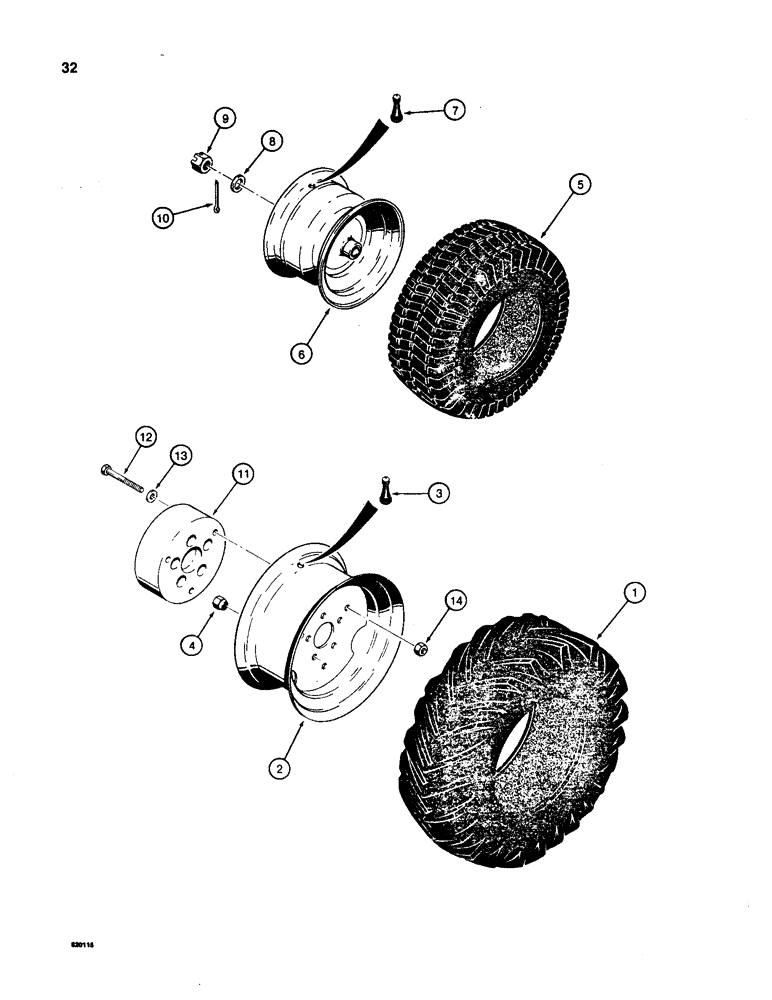

Запчасти Case TL200 (32) - WHEELS AND TIRES

1

NSS

NOT SOLD SEPARAT

TIRE - rear, 23 x 8.50 x 12, purchase locally

2шт.

Do not order tires from the J I Case Company. Order from local supply source.

1шт.

2

H554972

WHEEL

- rim, rear

2шт.

3

C10442

VALVE

STEM - rear wheel

2шт.

4

N4221

WHEEL NUT

- rear wheel retaining

10шт.

5

NSS

NOT SOLD SEPARAT

TIRE - front, 16 x 6.50 x 8, purchase locally

1шт.

Do not order tires from the J I Case Company. Order from local supply source.

1шт.

6

H204602

HUB

WHEEL - rim, front

1шт.

7

C10442

VALVE

STEM - front wheel

1шт.

8

H738815

WASHER

- special

1шт.

9

25-1912

SLOTTED NUT,3/4"-16, G5, Thk

CASTLE NUT - 3/4" - 16 NF, if used

1шт.

10

132-335

COTTER PIN,1/8" x 1 1/4"

1/8" x 1-1/4"

1шт.

11

H421743

WEIGHT - wheel, left hand rear, if used

1шт.

12

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

3шт.

13

195-533

WASHER,1/2", SAE

- flat, 1/2"

3шт.

14

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2" - 13 NC

3шт.
