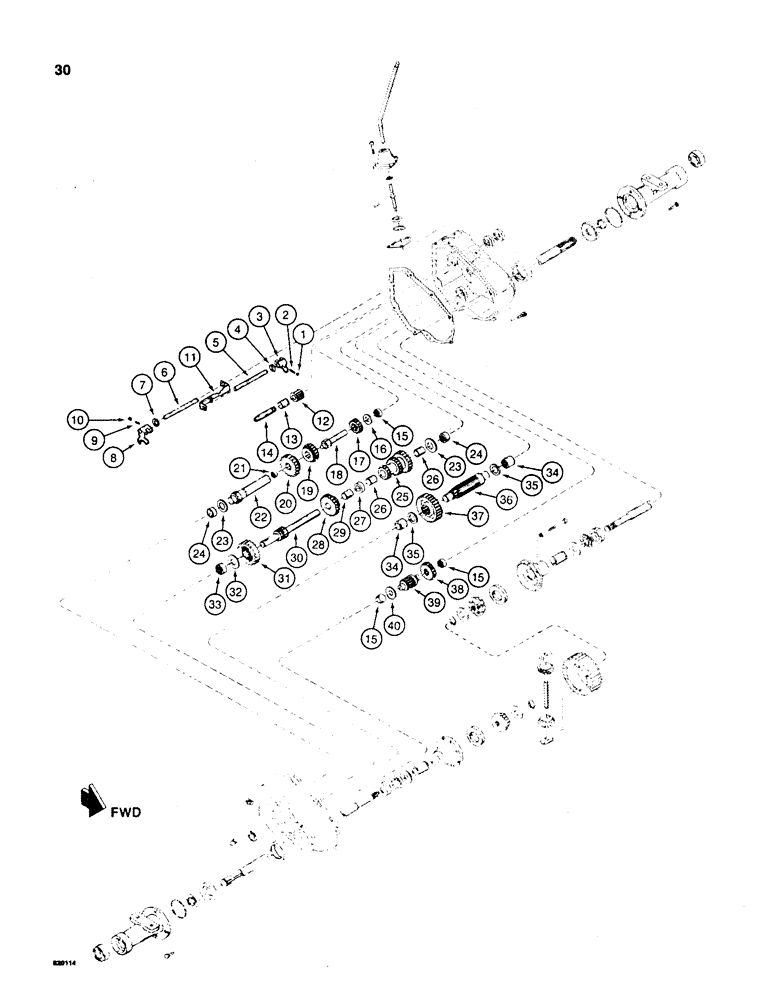

Запчасти Case TL200 (30) - TRANSAXLE

H601906

TRANSAXLE ASSEMBLY - continued from Figure 28, Includes: Refs. 1-40

1шт.

C11165

ROD

ASSEMBLY - shift, Includes: Refs. 1-5

1шт.

1

211-5

BALL,3/16" Dia

- steel, 7/32", grade 25

1шт.

2

C11166

SPRING

- ball

1шт.

3

C11167

FORK

SHIFT FORK - left-hand

1шт.

4

A11538

SNAP RING,#50, Ext

RING, Snap, , shift rod #50, Ext

1шт.

5

C11168

ROD

- shift, third and fourth

1шт.

C11169

ROD

ASSEMBLY - shift, no longer available, order the components refs. 6-10, Includes: Refs. 6-10

1шт.

6

C11170

ROD

- shift, first

1шт.

7

A11538

SNAP RING,#50, Ext

RING, Snap, , shift rod #50, Ext

1шт.

8

C11167

FORK

SHIFT FORK - right-hand

1шт.

9

C11166

SPRING

- ball

1шт.

10

211-5

BALL,3/16" Dia

- steel, 7/32", grade 25

1шт.

11

C11181

STOP

- shift forks

1шт.

12

C11211

WHEEL (STEERING)

IDLER GEAR - reverse

1шт.

13

C11210

SPACER

- idler gear

1шт.

14

C11209

SHAFT

- idler gear

1шт.

15

A27999

NEEDLE BEARING,Needle, 19.05mm ID x 25.41mm OD x 12.7mm W

- input and pinion shaft

3шт.

16

C10822

WASHER

THRUST WASHER - cluster gear

1шт.

17

C11191

GEAR WHEEL

SPUR GEAR - input shaft

1шт.

18

C15800

SHAFT

INPUT SHAFT - transaxle

1шт.

19

C11184

GEAR

- third and fourth

1шт.

20

C11185

GEAR

- first, second, and reverse, Includes: Refs. 21, 22

1шт.

C11177

SHAFT

PINION SHAFT AND BEARING ASSEMBLY

1шт.

21

A27287

NEEDLE BEARING,0.439" ID x 0.6245" OD x 0.5"

- inner

1шт.

22

NSS

NOT SOLD SEPARAT

PINION SHAFT - transaxle

1шт.

23

C11178

BEARING

THRUST WASHER - shaft

2шт.

24

C11200

BEARING

NEEDLE BEARING - shaft

2шт.

C11188

GEAR

CLUSTER GEAR ASSEMBLY - transaxle, Includes: Refs. 25, 26

1шт.

25

NSS

NOT SOLD SEPARAT

CLUSTER GEAR - transaxle

1шт.

26

C11180

BUSHING

- cluster gear

2шт.

27

C11189

SPACER

- gear

1шт.

C11179

GEAR

ASSEMBLY - transaxle, Includes: Refs. 28, 29

1шт.

28

NSS

NOT SOLD SEPARAT

GEAR - transaxle

1шт.

29

C11180

BUSHING

- gear

1шт.

30

H296087

SHAFT

- idler gear

1шт.

31

C11187

GEAR WHEEL

IDLER GEAR - transaxle

1шт.

32

C11223

WASHER

THRUST WASHER - idler gear

1шт.

33

A12652

NEEDLE BEARING,1" ID x 1.251" OD x 0.75"

- right-hand

1шт.

34

C11203

BEARING

NEEDLE BEARING - pinion

2шт.

35

C11201

WASHER

THRUST WASHER - pinion and gear

2шт.

36

C11194

PINION

- output

1шт.

37

C11193

GEAR

- input

1шт.

38

C11212

GEAR

SPUR GEAR - 22 teeth

1шт.

39

C11207

PINION

SHAFT AND PINION - transaxle

1шт.

40

C11205

WASHER

- flat

1шт.
