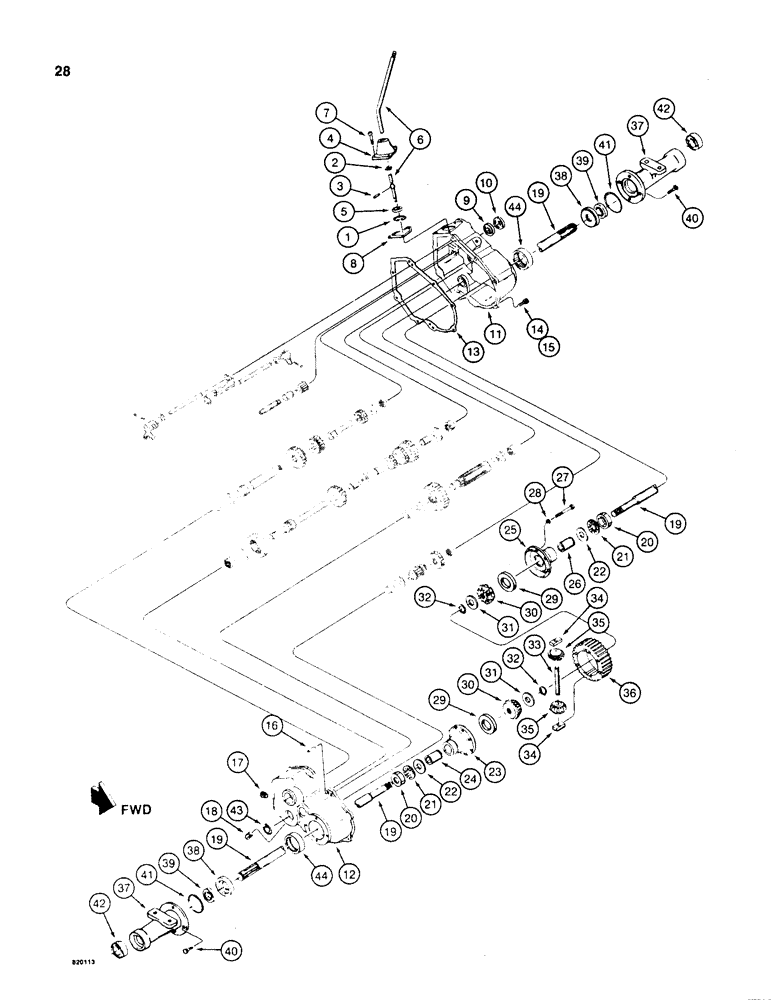

Запчасти Case TL200 (28) - TRANSAXLE

H601906

TRANSAXLE ASSEMBLY - trencher, Includes: Refs. 1-43

1шт.

H606723

HOUSING ASSY.

SHIFT LEVER AND HOUSING ASSEMBLY - transaxle, no longer available, order the components- refs. 1-6, Includes: Refs. 1-6

1шт.

1

A32181

SNAP RING,1.375", Int, #137

Ring, Snap, , case 1.375", Int, #137

1шт.

2

A35012

ARM

QUAD RING - shift lever

1шт.

3

C19324

AXLE PIN

PIN - shift lever

1шт.

4

C11162

HOUSING

- shift lever

1шт.

5

C11163

LEVER

RETAINER - shift lever

1шт.

6

H296046

LEVER

SHIFT LEVER - transaxle

1шт.

7

83-412

SET SCREW,Socket, 1/4" - 20 x 3/4", AST

BOLT - hex socket head, 1/4" - 20 NC x 3/4"

4шт.

8

C11183

GASKET

- shift lever housing

1шт.

9

C11204

BEARING

BALL BEARING - reverse idler shaft

1шт.

10

C11206

SEAL ASSY.

OIL SEAL - ball bearing

1шт.

11

H606749

CASE

- transaxle

1шт.

12

H606731

COVER ASSY

COVER - transaxle

1шт.

13

C11182

GASKET

- case and cover

1шт.

14

83-412

SET SCREW,Socket, 1/4" - 20 x 3/4", AST

BOLT - hex socket head, 1/4" - 20 NC x 3/4"

8шт.

15

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

16

F53650

PIN

DOWEL PIN - case and cover

2шт.

17

221-13

PLUG,Sq Hd, 3/8"-18

PIPE PLUG - rear, cover

1шт.

18

221-672

DRAIN PLUG,Sq Hd, 3/8" NPT

- magnetic

1шт.

19

H296053

CENTER AXLE

AXLE - right-hand and left-hand

2шт.

20

H756981

RACE

- thrust bearing

2шт.

21

F19633

NEEDLE BEARING,22.27mm ID x 36.24mm OD x 1.98mm W

THRUST BEARING - right-hand and left-hand

2шт.

22

C11178

BEARING

WASHER - thrust

2шт.

H606756

CARRIER

ASSEMBLY - differential, cover side, Includes: Refs. 23, 24

1шт.

23

NSS

NOT SOLD SEPARAT

CARRIER - differential

1шт.

24

C11216

BUSHING

- carrier

1шт.

H606780

CARRIER

ASSEMBLY - differential, case side, Includes: Refs. 25, 26

1шт.

25

NSS

NOT SOLD SEPARAT

CARRIER - differential

1шт.

26

C11216

BUSHING

- carrier

1шт.

27

413-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

- hex head, 1/4" - 20 NC x 2-1/2"

8шт.

28

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

29

H296756

WASHER

THRUST WASHER - bevel gear, outer

2шт.

30

H296095

GEAR WHEEL

BEVEL GEAR - differential

2шт.

31

C11178

BEARING

THRUST WASHER - bevel gear, inner

2шт.

32

C11222

RING,#66, Ext

Snap, , bevel gear #66, Ext

2шт.

33

C11173

AXLE PIN

SHAFT - pinion gears

1шт.

34

C11174

BLOCK

- drive, shaft ends

2шт.

35

H296079

PINION

GEAR - differential

2шт.

36

H296061

RING

GEAR - differential

1шт.

37

H352740

HOUSING

- axle

2шт.

C11192

SEAL

AND RETAINER ASSEMBLY - axle, Includes: Refs. 38, 39

2шт.

38

NSS

NOT SOLD SEPARAT

RETAINER - seal

1шт.

39

C11195

OIL SEAL

OIL SEAL - axle

1шт.

40

85-514

SET SCREW,Sq Hd, 5/16" - 18 x 7/8"

BOLT - hex head, 5/16" - 18 NC x 7/8"

8шт.

41

C11208

O-RING

- housing

2шт.

42

C11204

BEARING

BALL BEARING - outer

2шт.

43

C11195

OIL SEAL

OIL SEAL - idler shaft bearings

2шт.

44

R21491

NEEDLE BEARING,1.75" ID x 2.125" OD x 0.75"

- differential carrier, 1-3/4 in ID

2шт.
