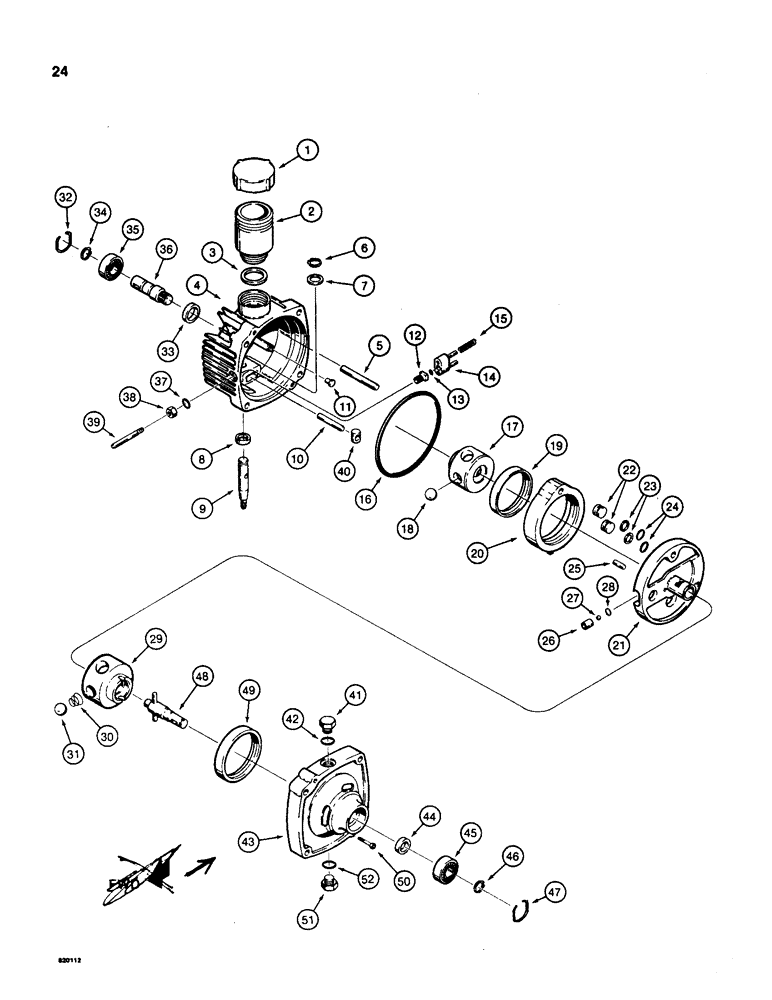

Запчасти Case TL200 (24) - HYDROSTATIC TRANSMISSION

H658724

TRANSMISSION

HYDROSTATIC TRANSMISSION - trencher, Includes: Refs. 1-52

1шт.

1

H644300

COVER - reservoir

1шт.

2

H419945

BODY - reservoir

1шт.

3

H419952

RING - seal

1шт.

H664318

KIT - transmission cover, service, see footnote below, Includes: Refs. 4-9

1шт.

H664318 Service Kit also includes Ref. 32 on figure 27.

1шт.

4

NSS

NOT SOLD SEPARAT

COVER - transmission

1шт.

5

H419598

DOWEL - pivot pin

1шт.

6

D32101

SNAP RING,#62, Ext

RING, Snap, #62, Ext

1шт.

7

H419960

WASHER - control shaft

1шт.

8

H758961

SEAL - oil

1шт.

9

H420067

SHAFT - control

1шт.

10

A23382

DOWEL PIN - 3/8" x 1-3/4"

1шт.

11

H419978

BUTTON - cover

1шт.

H664326

FITTING ASSEMBLY - guide, Includes: Refs. 12, 13

1шт.

12

NSS

NOT SOLD SEPARAT

FITTING - guide

1шт.

13

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Fitting

1шт.

14

H664334

BRACKET - pin

1шт.

15

H419986

SPRING - valve

1шт.

16

H419994

SEAL -, Serial Range: cover-body

1шт.

H664342

PUMP ASSEMBLY - rotor and balls, Includes: Refs. 17, 18

1шт.

17

NSS

NOT SOLD SEPARAT

ROTOR - pump

1шт.

18

NSS

NOT SOLD SEPARAT

BALL - pump

5шт.

H664383

RING ASSY.

CAM RING ASSEMBLY - hydrostatic transmission, Includes: Refs. 19, 20

1шт.

19

H420000

PUMP

RACE - pump

1шт.

20

H420026

RING

- cam

1шт.

H664359

CARRIER ASSEMBLY - hydrostatic transmission, Includes: Refs. 21-28

1шт.

21

NSS

NOT SOLD SEPARAT

CARRIER - hydrostatic transmission

1шт.

22

H420034

PISTON - carrier assembly

2шт.

23

S109111

BACK-UP RING

BACKUP RING - piston

2шт.

24

D48359

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

- piston

2шт.

25

138-2074

PIN,5/16" x 3/4", Coiled

1шт.

26

H420075

BODY - check valve

2шт.

27

211-103

BALL

- steel, 5/16", grade 200

2шт.

28

H758946

RETAINING RING - check valve

2шт.

REF

INSTRUCTION

HYDROSTATIC TRANSMISSION, continued

1шт.

H664367

MOTOR ASSEMBLY - rotor and balls, Includes: Refs. 29-31

1шт.

29

NSS

NOT SOLD SEPARAT

ROTOR - motor

1шт.

30

H420083

SPRING - ball

5шт.

31

NSS

NOT SOLD SEPARAT

BALL - motor

5шт.

H664391

KIT

INPUT SHAFT KIT - hydrostatic transmission, Includes: Refs. 32-36

1шт.

32

H419572

RING, SNAP

RETAINING RING - outer, see note

1шт.

33

H758938

OIL SEAL

- input shaft

1шт.

H664409

SHAFT ASSY.

INPUT SHAFT ASSEMBLY - hydrostatic transmission, Includes: Refs. 34-36

1шт.

34

H419580

RING, SNAP

SNAP RING - input shaft

1шт.

35

H758953

BALL BEARING

- input shaft

1шт.

36

H420042

SHAFT

INPUT SHAFT - hydrostatic transmission

1шт.

37

A8613

O-RING,0.426" ID x 0.566" OD

- dump valve shaft

1шт.

38

H419606

NUT - dump valve shaft

1шт.

39

H420059

SHAFT - dump valve

1шт.

40

H420422

RING - cam insert

1шт.

76349

PLUG,9/16" - 18 ORB

Assy - Top, Incl. Refs. 41, 42 Hex Hd, 9/16"-18 ORB

1шт.

41

NSS

NOT SOLD SEPARAT

PLUG - top

1шт.

42

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, plug

1шт.

H664417

BODY

ASSEMBLY - hydrostatic transmission, Includes: Refs. 43, 49

1шт.

43

H420091

BODY

- hydrostatic transmission

1шт.

44

H758938

OIL SEAL

- output shaft

1шт.

45

H758953

BALL BEARING

- output shaft

1шт.

46

H419580

RING, SNAP

SNAP RING - output shaft

1шт.

47

H419572

RING, SNAP

RETAINING RING - outer

1шт.

48

H664375

SHAFT

OUTPUT SHAFT - hydrostatic transmission

1шт.

49

H420109

RACE

- motor

1шт.

50

62-520

HEX SOC SCREW,5/16"-24 x 1 1/4"

BOLT - hex socket head, 5/16" - 18 NC x 1-1/4"

2шт.

76349

PLUG,9/16" - 18 ORB

Assy - Bottom, Incl. Refs. 51, 52 Hex Hd, 9/16"-18 ORB

1шт.

51

NSS

NOT SOLD SEPARAT

PLUG - bottom

1шт.

52

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, plug

1шт.
