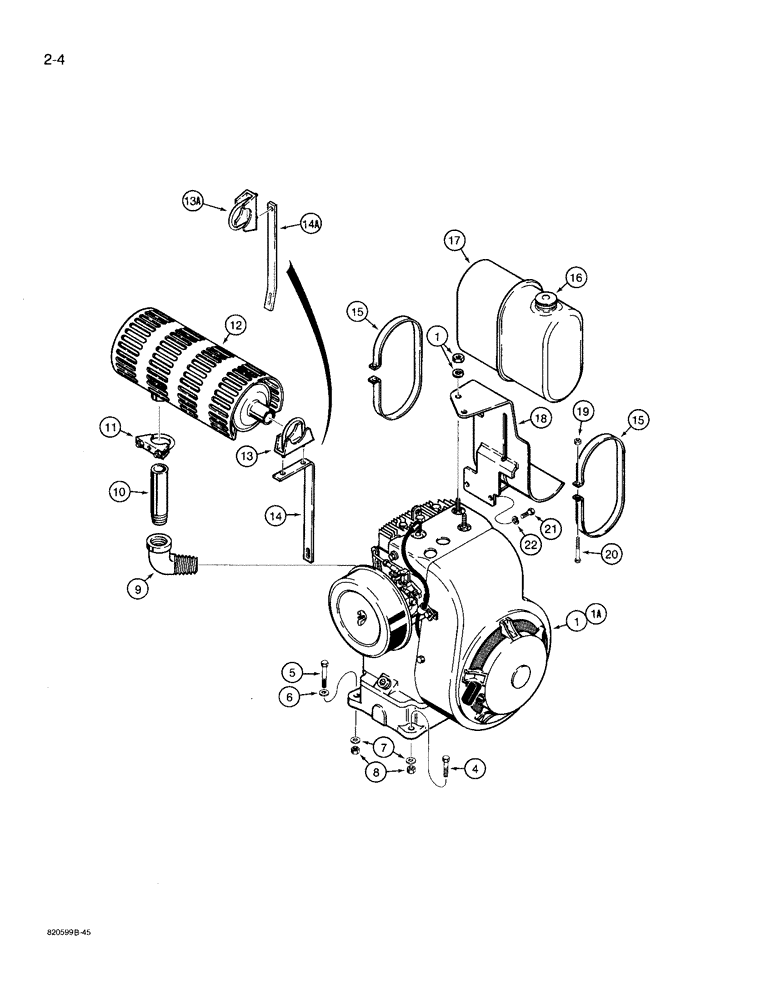

Запчасти Case TL100 (2-04) - KOHLER ENGINE AND EXHAUST SYSTEM (02) - ENGINE

1

REF

INSTRUCTION

ENGINE - Kohler, 10 hp, manual start, wrap around rope type, Model K241 - Spec. PA46747D, if used, not shown

1шт.

Know your model and spec number and see your local Kohler engine dealer for engine parts and service, including fuel lines.

1шт.

1

H645796

ENGINE - Kohler, 10 hp, manual start, recoil rope type, Model K241 - Spec. PA46819, if used

1шт.

Know your model and spec number and see your local Kohler engine dealer for engine parts and service, including fuel lines.

1шт.

1

H619478

ENGINE ASSEMBLY

ENGINE - Kohler, 10 hp, electric start, Model K241S - Spec. PA46817, if used, not shown

1шт.

Know your model and spec number and see your local Kohler engine dealer for engine parts and service, including fuel lines.

1шт.

1a

H673631

ENGINE ASSEMBLY

ENGINE - Kohler, 10 hp, manual start, recoil rope type, Model K241S - Spec. PS46868, if used, Includes: Ref. 2 and 3

1шт.

Know your model and spec number and see your local Kohler engine dealer for engine parts and service, including fuel lines.

1шт.

1a

H673632

ENGINE ASSEMBLY

ENGINE - Kohler, 10 hp, electric start, Model K241S - Spec. PS46869, if used, not shown, Includes: Ref. 2 and 3

1шт.

Know your model and spec number and see your local Kohler engine dealer for engine parts and service, including fuel lines.

1шт.

2

A70090

FILTER, ELEMENT

ELEMENT - air cleaner, Kohler engines, not shown

1шт.

3

C24301

HEATER PLUG

PLUG - spark, Kohler engines, not shown

1шт.

4

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

3шт.

5

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

6

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16"), For battery ground cable on models with electric start 3/8", SAE

1шт.

7

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

8

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

4шт.

9

221-1416

ELBOW,90 Degree, 1"-11 1/2, NPT

- street, 90 degree, 1 inch PT

1шт.

10

H291252

TUBE,1.315" ID x 1" DIA x 5" L

PIPE - 1 PT x 5 inch

1шт.

11

L13452

CLAMP,195-3/8" L

- muffler, includes hardware

1шт.

12

H291237

MUFFLER

- includes heat shield

1шт.

13

H262550

CLAMP

- muffler, includes hardware, no longer used, order Refs. 13A clamp and 14A bracket for service

1шт.

13a

L47766

CLAMP

- muffler, includes hardware, use with Ref. 14A bracket

1шт.

14

H316521

BRACKET

- muffler support, no longer used, order Refs. 13A clamp and 14A bracket for service

1шт.

14a

H433204

BRACKET

- muffler support, use with Ref. 13A clamp

1шт.

15

H322545

STRAP

- fuel tank, used for service on all fuel tanks

2шт.

16

V34923

CAP

- fuel tank, supplied with Kohler engine

1шт.

Kohler P/N 236655

1шт.

Know your model and spec number and see your local Kohler engine dealer for engine parts and service, including fuel lines.

1шт.

17

REF

INSTRUCTION

TANK - fuel, supplied with Kohler engine

1шт.

Kohler P/N 235164

1шт.

Know your model and spec number and see your local Kohler engine dealer for engine parts and service, including fuel lines.

1шт.

18

H618827

BRACKET

- fuel tank, fastens to engine, used on engines with Spec. number PA46747D, and on H645796 and H619478 engines (Ref. 1), with hardware Refs. 19 - 22 models, Serial Range: -JAF0048201

1шт.

18a

REF

INSTRUCTION

BRACKET - fuel tank, used on H673631 and H673632 engines (Ref. 1A), (models), not shown, Start Serial: JAF0048201

1шт.

Know your model and spec number and see your local Kohler engine dealer for engine parts and service, including fuel lines.

1шт.

19

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

20

113-132

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- hex, 1/4 NC x 1-3/4 inch

2шт.

21

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

22

492-11038

LOCK WASHER,3/8"

2шт.
