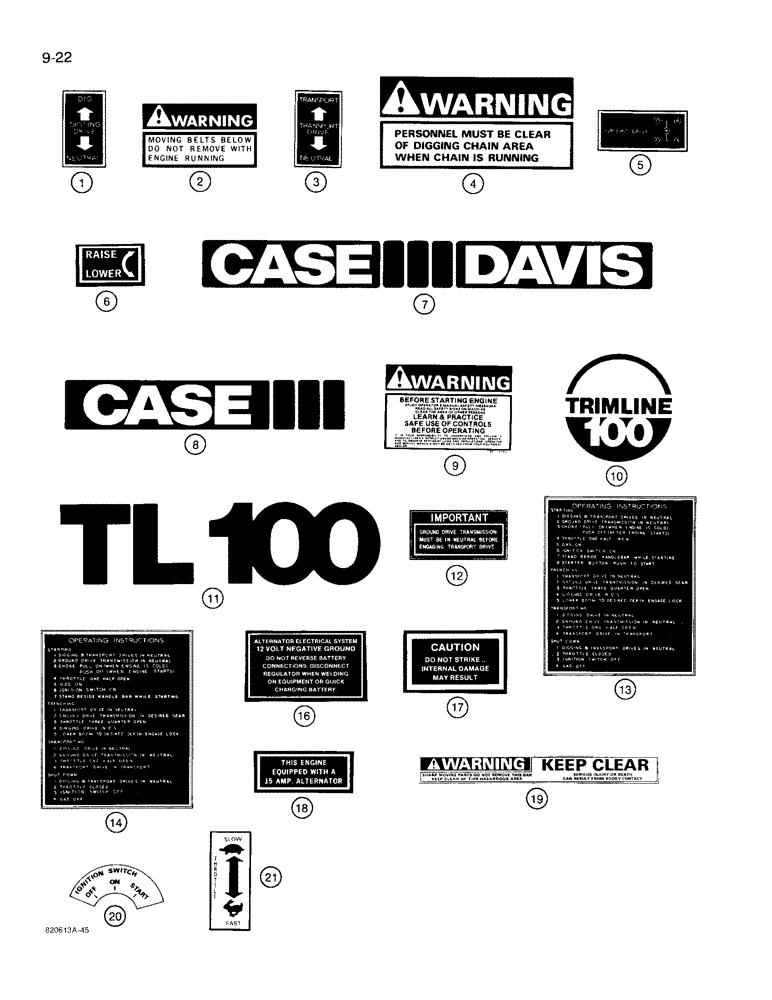

Запчасти Case TL100 (9-22) - DECALS (09) - CHASSIS/ATTACHMENTS

1

321-3410

DECAL

- clutch, digging drive

1шт.

2

321-2753

DECAL

- warning, moving belts below

1шт.

3

321-3411

DECAL

- transport drive

1шт.

4

321-3214

DECAL

- Warning, personnel must be clear of digging chain

1-2шт.

5

321-3371

DECAL

- ground drive, transmission shift pattern

1шт.

6

321-2756

DECAL

- boom crank, raise, lower

1шт.

7

321-5071

DECAL

- Case-Davis, no longer available, order H427625 decal, Ref. 8

1шт.

8

321-5935

DECAL

- Case, black and yellow, no longer available, order H427625 decal for service

1шт.

8

H427625

DECAL

- Case, brown and tan

1шт.

9

321-3705

DECAL

- Warning, before starting engine

1шт.

10

321-3929

DECAL

- Trimline 100, no longer used

1шт.

11

321-5900

DECAL

- TL100, black and yellow, if used

1шт.

11

H427534

DECAL

- TL100, brown and tan, if used

1шт.

12

321-4634

DECAL

- Important, ground drive transmission must be in neutral before engaging transport drive

1шт.

13

321-3854

DECAL

- operating instructions, electric start, if used

1шт.

14

321-3855

DECAL

- operating instructions, manual start, if used

1шт.

15

321-4614

TAG

- Do Not Operate, use when servicing machine, not shown

1шт.

16

321-1834

DECAL

- alternator electrical system, if used

1шт.

17

321-2930

DECAL

- Caution, do not strike, if used

1шт.

18

321-2931

DECAL

- this engine equipped with 15 amp alternator, if used

1шт.

19

321-6687

DECAL

- Warning, keep clear, sharp moving parts

2шт.

20

H433991

DECAL

- ignition switch pattern, used on either rope or electric start models, the "start" position must be trimmed off this decal for rope start models

1шт.

21

321-5847

DECAL

- throttle, slow-fast

1шт.
