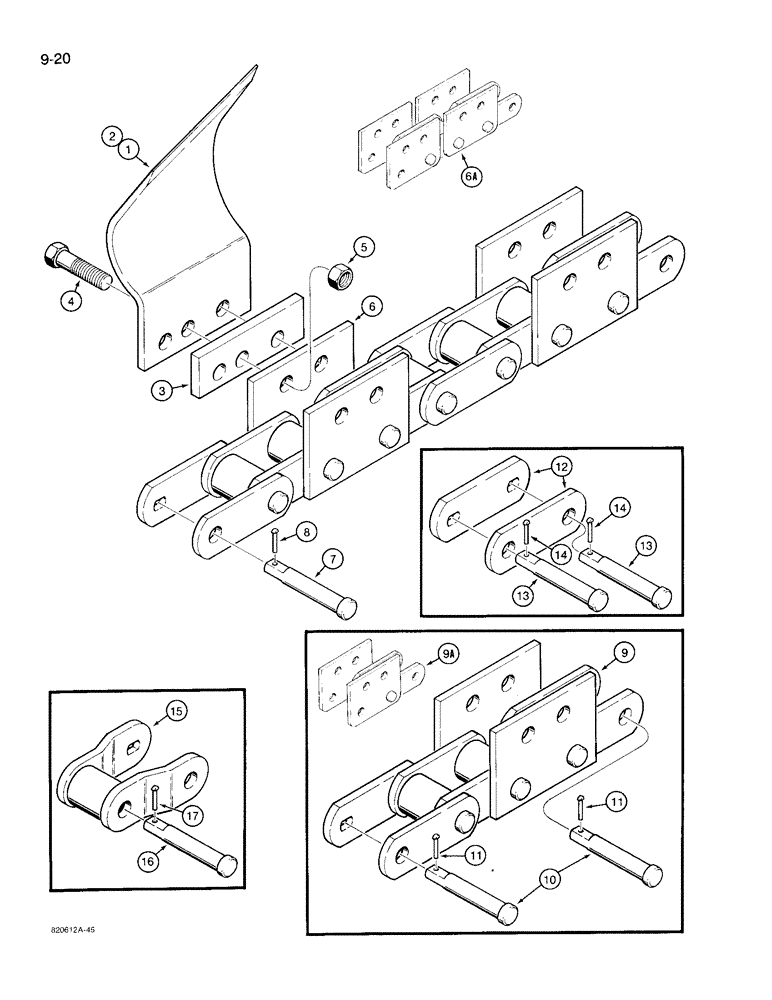

Запчасти Case TL100 (9-20) - DIGGING TEETH AND CHAIN (09) - CHASSIS/ATTACHMENTS

1

H208363

TOOTH

- digging, left-hand

6-13шт.

2

H208371

TOOTH

- digging, right-hand

7-13шт.

3

H208355

SPACER

- tooth

13-26шт.

4

114-252

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 8, Full Thd

- hex, 3/8 NF x 1-1/4 inch, grade 8

26-52шт.

5

131-1133

NUT,3/8"-24, GC

NUT - hex, self-locking, 3/8 inch NF

26-52шт.

6

H501791

CHAIN (CE)

CHAIN ASSEMBLY - digging, 52 pitches long, standard production, with tooth mounting every four pitches, order H501791 chain assembly for service, Includes: Ref. 7 and 8

1шт.

7

H30072

CONNECTOR, ELEC

PIN - connector

1шт.

Pin is D-shaped for a rex chain. If you are looking for the round pin for the ballantine chain, you can order 253215A1. Pins for ballantine chain 260 and 325 are: 257350A1, .565 x 2.718 and 257351A1, .750 x 3.656.

1шт.

8

H85274

SPLIT PIN/SAFETY PIN

PIN - retaining

1шт.

Interchangeable with cotter pin P/N 132-334, if used.

1шт.

6

H615369

CHAIN (AG)

CHAIN ASSEMBLY - digging, 56 pitches long, service only, with tooth mounting every four pitches, remove 4 pitches prior to installation on the TL100, Includes: Ref. 7 and 8

1шт.

7

H30072

CONNECTOR, ELEC

PIN - connector

1шт.

Pin is D-shaped for a rex chain. If you are looking for the round pin for the ballantine chain, you can order 253215A1. Pins for ballantine chain 260 and 325 are: 257350A1, .565 x 2.718 and 257351A1, .750 x 3.656.

1шт.

8

H85274

SPLIT PIN/SAFETY PIN

PIN - retaining

1шт.

Interchangeable with cotter pin P/N 132-334, if used.

1шт.

6a

H673229

CHAIN (CE)

CHAIN ASSEMBLY - digging, 52 pitches long, production and service option, with tooth mounting every two pitches, Includes: Ref. 7 and 8

1шт.

7

H30072

CONNECTOR, ELEC

PIN - connector

1шт.

Pin is D-shaped for a rex chain. If you are looking for the round pin for the ballantine chain, you can order 253215A1. Pins for ballantine chain 260 and 325 are: 257350A1, .565 x 2.718 and 257351A1, .750 x 3.656.

1шт.

8

H85274

SPLIT PIN/SAFETY PIN

PIN - retaining

1шт.

Interchangeable with cotter pin P/N 132-334, if used.

1шт.

9

H502054

CHAIN (CE)

SECTION ASSEMBLY - repair, digging chain, 4 pitches, for H615369 or H501791 chain, Includes: Ref. 10 and 11

1шт.

10

H30072

CONNECTOR, ELEC

PIN - connector

2шт.

11

H85274

SPLIT PIN/SAFETY PIN

PIN - retaining

2шт.

Interchangeable with cotter pin P/N 132-334, if used.

1шт.

9a

H673237

CHAIN (CE)

SECTION ASSEMBLY - repair, digging chain, 2 pitches, for H673229 chain, Includes: Ref. 10 and 11

1шт.

10

H30072

CONNECTOR, ELEC

PIN - connector

2шт.

11

H85274

SPLIT PIN/SAFETY PIN

PIN - retaining

2шт.

Interchangeable with cotter pin P/N 132-334, if used.

1шт.

12

H504068

DRAG LINK

LINK ASSEMBLY - connection, digging chain, Includes: Ref. 13 and 14

1шт.

13

H30072

CONNECTOR, ELEC

PIN - connector

2шт.

14

H85274

SPLIT PIN/SAFETY PIN

PIN - retaining

2шт.

Interchangeable with cotter pin P/N 132-334, if used.

1шт.

15

H59360

HALF-LINK

LINK ASSEMBLY - offset, digging chain, Includes: Ref. 16 and 17

1шт.

16

H30072

CONNECTOR, ELEC

PIN - connector

1шт.

17

H85274

SPLIT PIN/SAFETY PIN

PIN - retaining

1шт.

Interchangeable with cotter pin P/N 132-334, if used.

1шт.

132-334

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), , Interchangeable with H85274 retaining pin, if used 1/8" x 3/4"

1шт.
