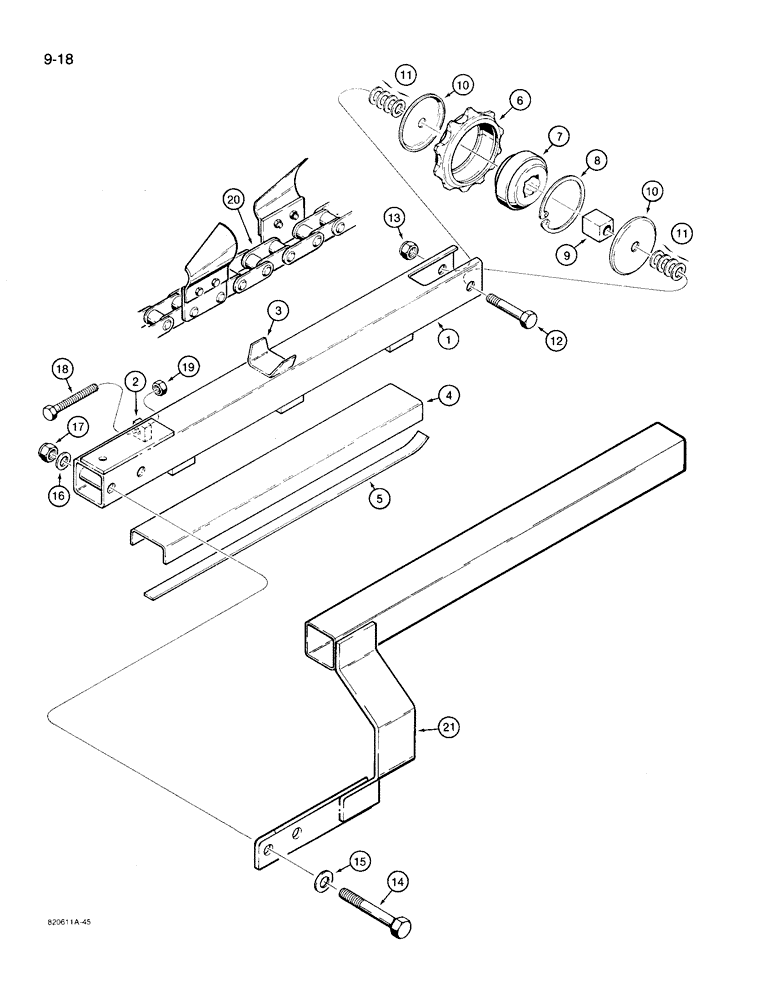

Запчасти Case TL100 (9-18) - BOOM (09) - CHASSIS/ATTACHMENTS

1

H612143

BOOM

ASSEMBLY - channel type, 24 inch, welded assembly, Includes: Ref. 2 - 5

1шт.

2

H26005

TIGHTENER

LUG - digging chain tighener, Serial Range: welds-boom

1шт.

3

H34041

GUIDE

- chain, Serial Range: welds-boom

1шт.

4

H311118

CHANNEL

- lower, Serial Range: welds-boom

1шт.

5

H311092

STRIP

- wear, Serial Range: welds-channel

1шт.

6

H33563

DRIVE SPROCKET

SPROCKET - end

1шт.

7

H747139

BALL BEARING

BEARING - ball, with seals

1шт.

8

H33837

RING

- snap, bearing retaining

1шт.

9

H232645

BUSHING

- square

1шт.

10

H350785

WASHER

- special

2шт.

11

195-541

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

8шт.

12

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5

1шт.

13

131-1130

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8 inch NC

1шт.

14

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

2шт.

15

195-541

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

2шт.

16

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - flat, 5/8 inch, hardened

2шт.

17

131-1130

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8 inch NC

2шт.

18

H334375

BOLT

- special, adjusting

1шт.

19

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

1шт.

20

REF

INSTRUCTION

CHAIN - digging, with teeth, see Figure 9-20

1шт.

21

H658732

BAR ASSY.

GUARD - digging chain

1шт.
