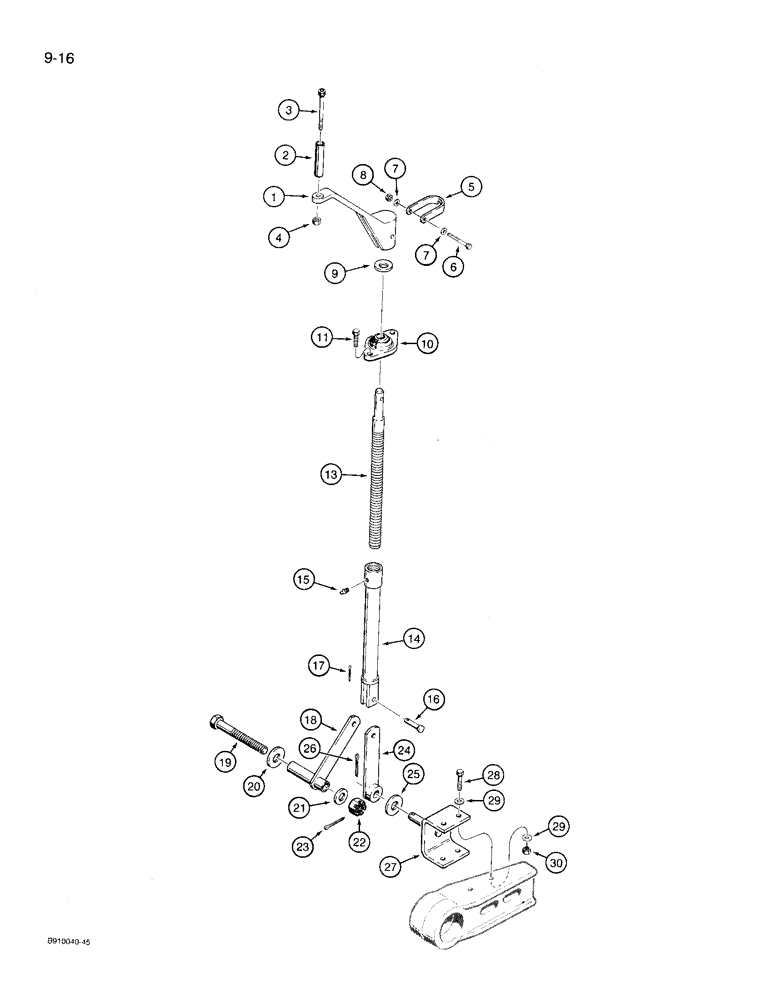

Запчасти Case TL100 (9-16) - BOOM LIFT PARTS, P.I.N. JAF0048201 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

H434943

CRANK

- hand, boom lift and lower

1шт.

2

H82768

HANDLE

- crank

1шт.

3

61-656

HEX SOC SCREW,3/8"-16 x 3 1/2"

BOLT - hex socket, 3/8 NC x 3-1/2 inch

1шт.

4

87016560

JAM NUT,Jam, 3/8"-16, G5

1шт.

5

H340547

FORK

BRACKET - stop, slot type, locks on tab, Serial Range: welded-frame

1шт.

6

113-15

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

- hex, 1/4 NC x 2-1/4 inch

1шт.

7

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

8

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

1шт.

9

H436518

WASHER

- flat, special

1шт.

10

H623686

BALL

FLANGE - hand crank

1шт.

11

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

13

H434944

SCREW,1" - 5 x 15.10"

- depth control, 1 inch thread

1шт.

14

H672861

TUBE,330 mm L

- threaded, depth control

1шт.

15

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

1шт.

16

141-56

CLEVIS PIN,1/2" x 1.360"

PIN - clevis, 3/8 x 1-1/2 inch

1шт.

17

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

18

H672860

LINK ASSY.

LINK - anchor

1шт.

19

H354829

BOLT

BOLT - hex, 3/4 NC x 5-1/2 inch, special

1шт.

20

495-21081

WASHER,3/4"

- flat, 13/16 x 2 x 5/32 inch

1шт.

21

195-545

WASHER,3/4", SAE

- flat, 13/16 x 1-15/32 x 1/8 inch

1шт.

22

425-1212

SLOTTED NUT,3/4"-10, G5

NUT - hex, slotted, 3/4 inch NC

1шт.

23

432-1020

COTTER PIN,5/32" x 1 1/4"

PIN, SPLIT (COTTER), 5/32" x 1 1/4"

1шт.

24

H672859

LINK ASSY.

LINK - boom lift

1шт.

25

495-21081

WASHER,3/4"

- flat, 13/16 x 2 x 5/32 inch

1шт.

26

432-1020

COTTER PIN,5/32" x 1 1/4"

PIN, SPLIT (COTTER), 5/32" x 1 1/4"

1шт.

27

H614701

ARM

- boom lift

1шт.

28

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

29

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

8шт.

30

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

4шт.
