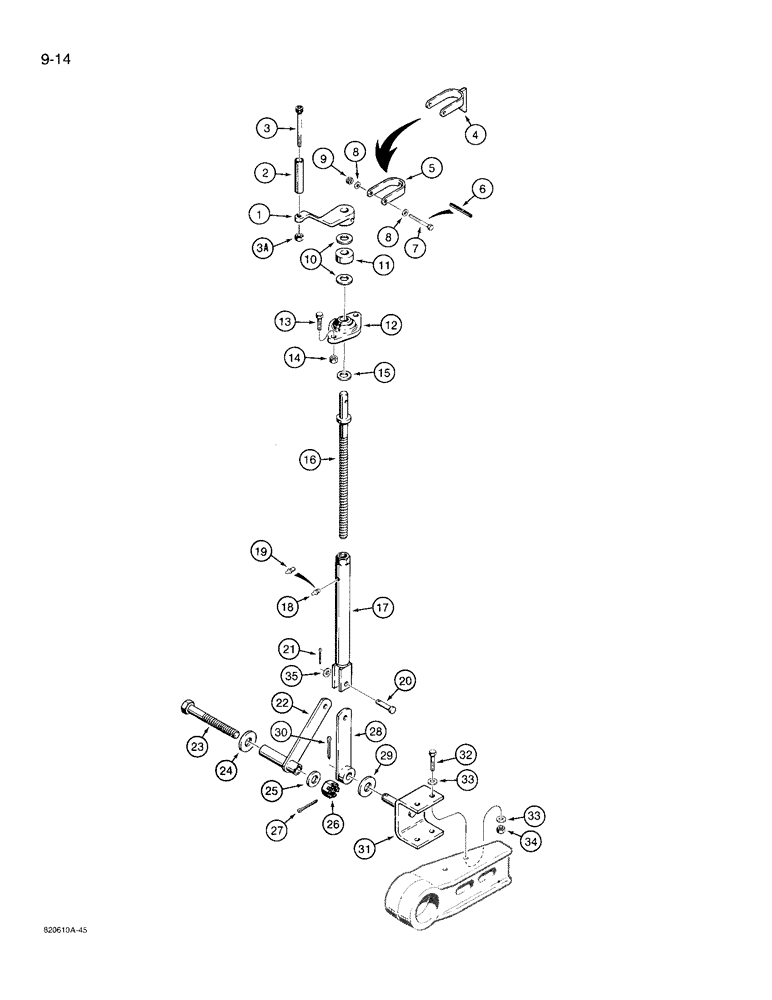

Запчасти Case TL100 (9-14) - BOOM LIFT PARTS, PRIOR TO P.I.N. JAF0048201 (09) - CHASSIS/ATTACHMENTS

H619445

CRANK

ASSEMBLY - hand, boom lift and lower, Includes: Ref. 1 - 3A

1шт.

1

NSS

NOT SOLD SEPARAT

CRANK - boom lift and lower

1шт.

2

H82768

HANDLE

- crank assembly

1шт.

3

61-656

HEX SOC SCREW,3/8"-16 x 3 1/2"

BOLT - hex socket, 3/8 NC x 3-1/2 inch

1шт.

3a

87016560

JAM NUT,Jam, 3/8"-16, G5

If used Jam, 3/8"-16, G5

1шт.

4

H604181

BRACKET

- stop, tab type, locks in slot on frame, if used, see Ref. 5

1шт.

5

H340547

FORK

BRACKET - stop, slot type, locks on tab welded to frame, if used, see Ref. 4

1шт.

6

138-143

LOCK PIN,1/4" x 2 1/4", Slotted

PIN, , No longer used (Replace with Refs. 7, 8 and 9) 1/4" x 2 1/4", Slotted

1шт.

7

113-15

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

- hex, 1/4 NC x 2-1/4 inch

1шт.

8

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

9

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

1шт.

10

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, special

2шт.

11

H120717

SPACER

- crank

1шт.

12

H623686

BALL

FLANGE - hand crank

1шт.

13

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

14

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16 inch NC

2шт.

15

H738815

WASHER

- flat, special, under ball joint

1шт.

16

H642918

SCREW

- depth control, 3/4 inch thread

1шт.

17

H618926

TUBE,10.44" L

- threaded

1шт.

18

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, If used 1/4"-28 NPT x .54" lg

1шт.

19

219-17

LUBE NIPPLE,3/16" NPTF

GREASE FITTING - straight, 3/16", drive, if used

1шт.

20

H114017

AXLE PIN

PIN - clevis, 3/8 x 1-1/2 inch

1шт.

21

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

22

H618918

LINK

- anchor

1шт.

23

H354829

BOLT

BOLT - hex, 3/4 NC x 5-1/2 inch, special

1шт.

24

495-21081

WASHER,3/4"

- flat, 13/16 x 2 x 5/32 inch

1шт.

25

195-545

WASHER,3/4", SAE

- flat, 13/16 x 1-15/32 x 1/8 inch

1шт.

26

425-1212

SLOTTED NUT,3/4"-10, G5

NUT - hex, slotted, 3/4 inch NC

1шт.

27

432-1020

COTTER PIN,5/32" x 1 1/4"

PIN, SPLIT (COTTER), 5/32" x 1 1/4"

1шт.

28

H618900

LINK

- boom lift

1шт.

29

495-21081

WASHER,3/4"

- flat, 13/16 x 2 x 5/32 inch

1шт.

30

432-1020

COTTER PIN,5/32" x 1 1/4"

PIN, SPLIT (COTTER), 5/32" x 1 1/4"

1шт.

31

H614701

ARM

- boom lift

1шт.

32

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

33

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16"), If used 3/8", SAE

4-8шт.

34

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

4шт.

35

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16"), If used 3/8", SAE

1шт.
