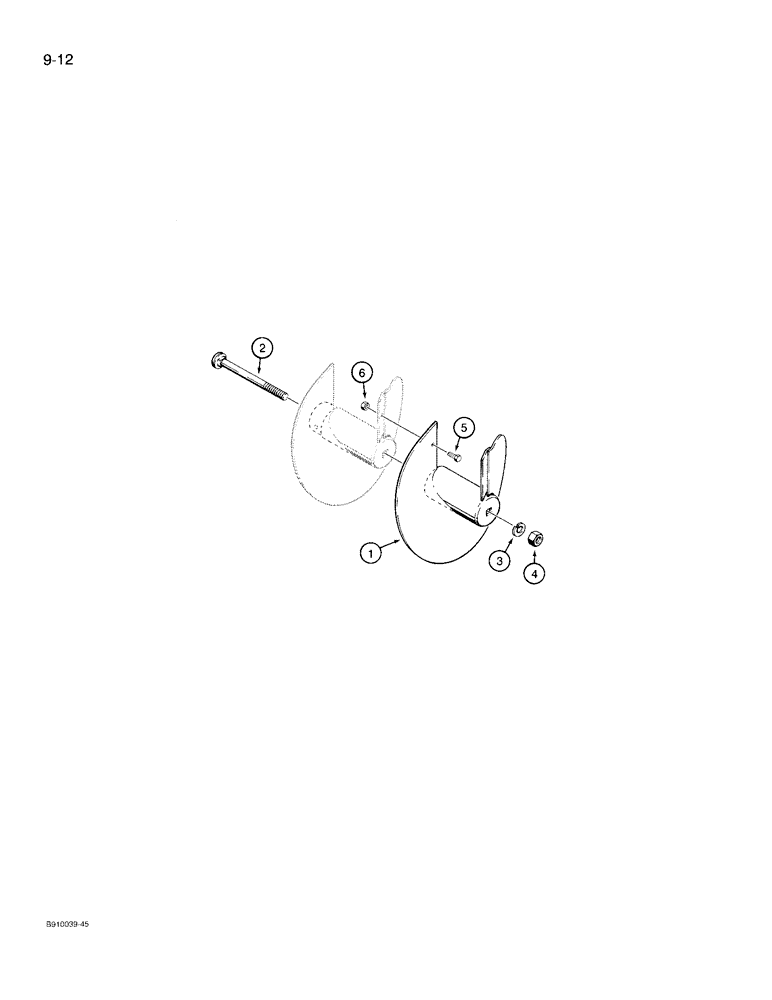

Запчасти Case TL100 (9-12) - AUGER EXTENSION PARTS (09) - CHASSIS/ATTACHMENTS

1

H500744

AUGER

EXTENSION - auger, if used

1шт.

2

111-620

CARRIAGE BOLT,Short NK, 5/8"-11 x 7", G2

BOLT - carriage, 5/8 NC x 7 inch

1шт.

3

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

4

425-1010

NUT,5/8"-11, G5

1шт.

5

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

6

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16 inch NC

1шт.
