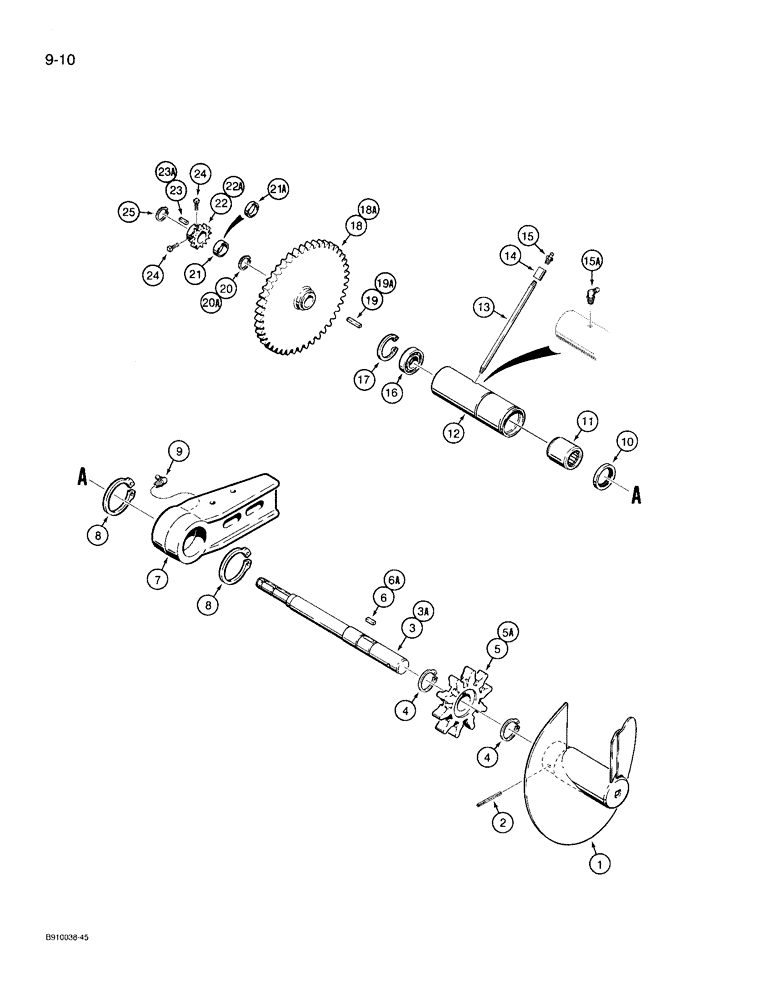

Запчасти Case TL100 (9-10) - AUGER, SHAFT, AND SPROCKETS (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
H500025
AUGER
- dirt
1шт.
2
138-180
LOCK PIN,3/8" x 2 1/2", Slotted
PIN, 3/8" x 2 1/2", Slotted
1шт.
3
H384107
SHAFT
- head, auger and digging chain drive, 1 inch (25 mm) O.D. at Ref. 18 sprocket and has slots for 1/4 inch wide keys, if used
1шт.
3a
H403261
SHAFT
- head, auger and digging chain drive, 1-1/8 inch (29 mm) O.D. at Ref. 18A sprocket and has slots for 5/16 inch wide keys, if used
1шт.
Part of shaft and sprocket kit H658120
1шт.
4
R13338
SNAP RING,#150, Ext
Ring, Snap, , sprocket #150, Ext
2шт.
5
H207688
DRIVE SPROCKET
SPROCKET - digging chain drive, has slot for 1/4 inch wide key, if used
1шт.
5a
H404004
DRIVE SPROCKET
SPROCKET - digging chain drive, has slot for 5/16 inch wide key, if used
1шт.
Part of shaft and sprocket kit H658120
1шт.
6
H380055
KEY
- square, 1/4 x 7/8 inch, used with Refs. 3 and 5
1шт.
6a
H404012
KEY
- square, 5/16 x 27/32 inch, used with Refs. 3A and 5A
1шт.
Part of shaft and sprocket kit H658120
1шт.
7
H309385
BOOM
PIVOT - boom
1шт.
8
H746651
SNAP RING,#262, Ext
Ring, Snap, , boom pivot #262, Ext
2шт.
9
219-55
LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF
NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg
1шт.
10
H758854
OIL SEAL
- bearing
1шт.
11
F7356
NEEDLE BEARING,Needle, 38.1mm ID x 47.63mm OD x 22.23mm W
BEARING - needle, inner
1шт.
12
H42390
TUBE,1.75" ID x 2.625" OD
- shaft support
1шт.
Refs. are all part of main frame assembly, see Figure 9-2 for main frame.
1шт.
13
221-700
PIPE,Nipple, 1/8" NPT x 8 3/4"
NIPPLE - straight, 1/8 PT x 8-3/4 inch long, if used
1шт.
Refs. are all part of main frame assembly, see Figure 9-2 for main frame.
1шт.
14
221-1335
COUPLING,Pipe, 1/8" NPT
if used Pipe, 1/8" NPT
1шт.
Refs. are all part of main frame assembly, see Figure 9-2 for main frame.
1шт.
15
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight, 1/8 PT x 21/32 inch, if used
1шт.
Refs. are all part of main frame assembly, see Figure 9-2 for main frame.
1шт.
15a
219-55
LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF
NIPPLE, LUBE, , Used on SN 1111606 - SN 1117694 only 90º, 1/8" NPT x .84" lg
1шт.
Refs. are all part of main frame assembly, see Figure 9-2 for main frame.
1шт.
16
H757807
BALL BEARING
BEARING - ball, outer
1шт.
17
49482
SNAP RING,2.125", Int, #212
Ring, Snap, , brg 2.125", Int, #212
1шт.
18
H43158
DRIVE SPROCKET
SPROCKET - for 1 inch (25 mm) diameter shaft, 1/4 inch wide keyway, if used
1шт.
18a
H396580
DRIVE SPROCKET
SPROCKET - for 1-1/8 inch (29 mm) diameter shaft, 5/16 inch wide keyway, if used
1шт.
Part of shaft and sprocket kit H658120
1шт.
19
H380030
KEY
- square, 1/4 x 1-3/8 inch long, used with Ref. 18 only
1шт.
19a
H403238
KEY
- retangular section, 5/16 x 1/4 x 1-1/4, used with Ref. 18A only
1шт.
Part of shaft and sprocket kit H658120
1шт.
20
B18208
SNAP RING,#100, Ext
Ref 18 only #100, Ext
1шт.
20a
F62235
SNAP RING,#112, Ext
Ring, Snap, , retains ref. 18A only #112, Ext
1шт.
Part of shaft and sprocket kit H658120
1шт.
21
H350736
SPACER
- sprocket, used with Refs 18 and 22 only
1шт.
21a
H403279
SPACER
- sprocket, used with Refs 18A and 22A only
1шт.
Part of shaft and sprocket kit H658120
1шт.
22
H308015
DRIVE SPROCKET
SPROCKET - outer, has slot for 1/4 inch wide key, if used
1шт.
22a
H403402
DRIVE SPROCKET
SPROCKET - outer, has slot for 5/16 inch wide key, if used
1шт.
Part of shaft and sprocket kit H658120
1шт.
23
H26492
KEY
- square, 1/4 x 3/4 inch, used with Ref. 22 only
1шт.
23a
H403220
KEY
- rectangular, 5/16 x 1/4 x 7/8 inch, used with Ref. 22A only
1шт.
Part of shaft and sprocket kit H658120
1шт.
24
SET SCREW,Sq Hd, 1/4"-20 x 1/2"
SCREW - set, square head, 1/4 NC x 1/2 inch, cup point
2шт.
25
B18208
SNAP RING,#100, Ext
outer sprocket #100, Ext
1шт.
H658120
KIT
shaft and sprocket, Includes: Refs. 3A, 5A, 6A, 18A, 19A, 20A, 21A, 22A and 23A, converts to heavy-duty shaft and sprocket with 5/16 inch wide key slot
1шт.
