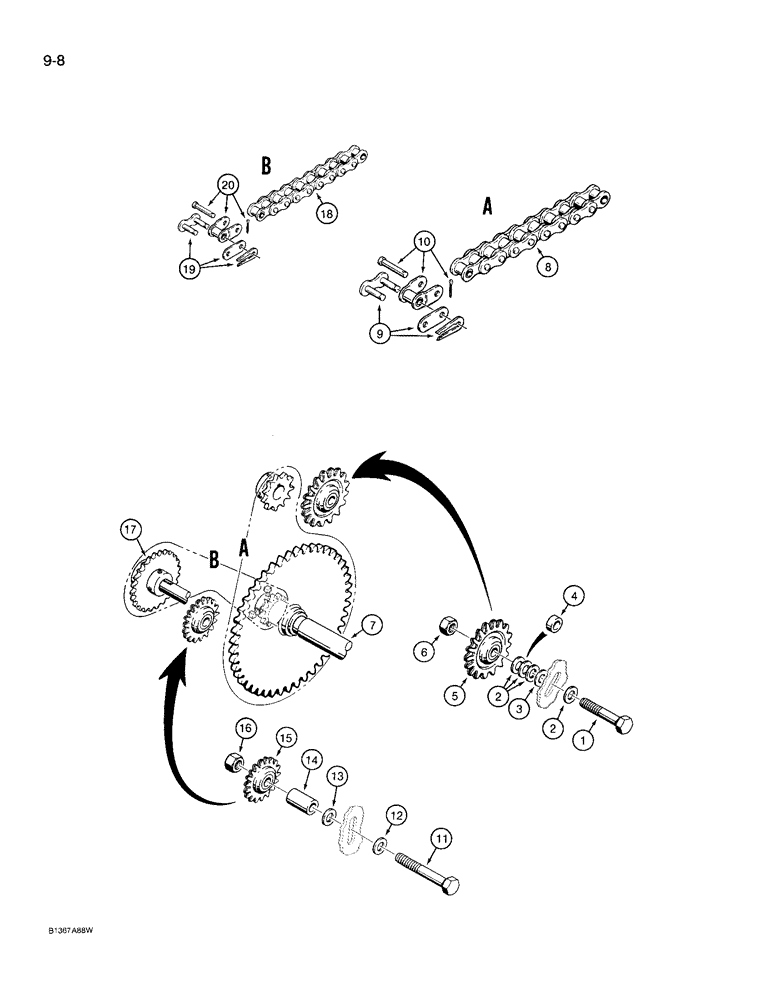

Запчасти Case TL100 (9-08) - IDLER SPROCKETS AND DRIVE CHAINS (09) - CHASSIS/ATTACHMENTS

1

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

2

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - flat, 5/8 x 9/64 inch thick, hardened

2-5шт.

3

195-541

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

1шт.

4

NSS

NOT SOLD SEPARAT

SPACER - no longer used, replace with combination of T53567 washers (Ref. 2) and and 195-541 washers (Ref. 3) as required

1шт.

5

H672375

DRIVE SPROCKET

SPROCKET - idler, digging drive chain

1шт.

6

131-1130

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8 inch NC

1шт.

7

REF

INSTRUCTION

SHAFT - auger and digging chain, shown with sprocket, see Figure 9-10

1шт.

8

H757377

CHAIN (AG)

CHAIN - roller, No. 50, digging drive, Includes: Ref. 9

1шт.

9

B12505

LINK

- connecting, complete, H757377 chain

1шт.

10

B17570

LINK

- offset, H757377 chain

1шт.

11

413-1068

BOLT,Hex, 5/8" - 11 x 4-1/4", Gr 5

- hex, 5/8 NC x 4-1/4 inch

1шт.

12

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - flat, 5/8 inch, hardened

1шт.

13

195-541

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

1шт.

14

H335372

SPACER

- idler sprocket

1шт.

15

H672374

DRIVE SPROCKET

SPROCKET - idler, ground drive chain

1шт.

16

131-1130

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8 inch NC

1шт.

17

REF

INSTRUCTION

JACKSHAFT - ground drive chains, shown with sprocket, see Figure 6-2 for ground drive parts

1шт.

18

H757500

CHAIN (AG)

CHAIN - roller, No. 40, ground drive, Includes: Ref. 19

1шт.

19

B12501

LINK

- connecting, H757500 chain

1шт.

20

B12502

OFFSET LINK

LINK - offset, H757500 chain

1шт.
