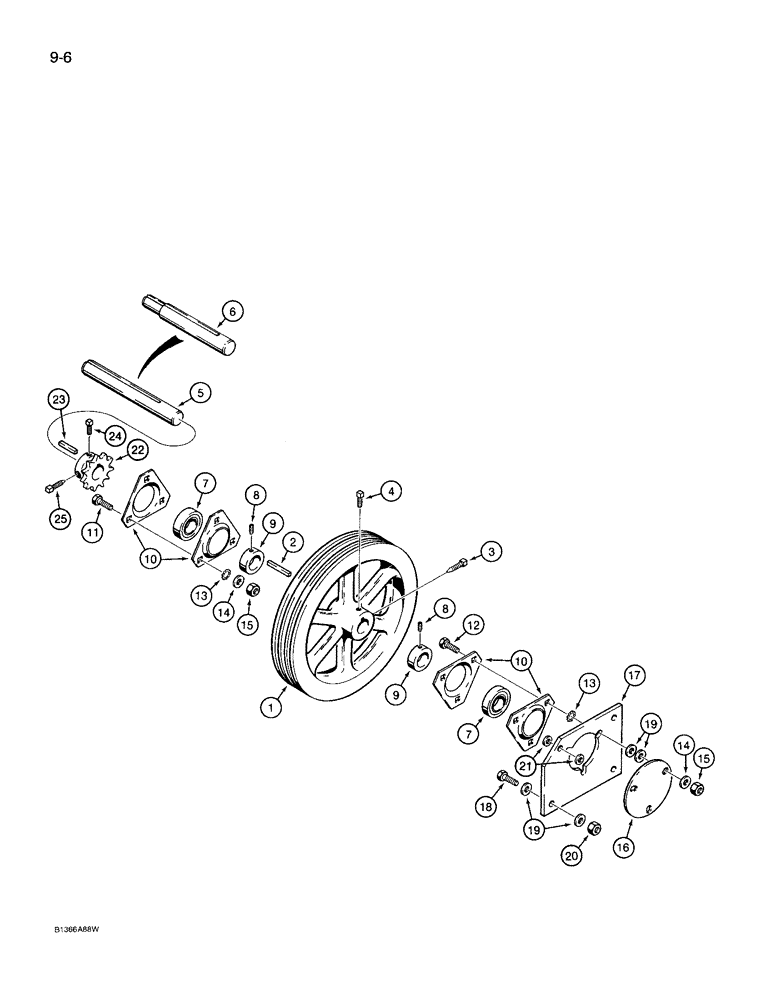

Запчасти Case TL100 (9-06) - DIGGING DRIVE AND BEARINGS (09) - CHASSIS/ATTACHMENTS

1

H183657

SHEAVE

- jackshaft, see Figure 2-8 for drive belt

1шт.

2

H33290

KEY

- square, 1/4 x 2-1/4 inch

1шт.

3

181-18

SET SCREW,Sq Hd, 1/4"-20 x 3/4"

SCREW - set, square head, 1/4 NC x 3/4 inch, cone point

1шт.

4

85-48

SET SCREW,Sq Hd, 1/4"-20 x 1/2"

SCREW - set, square head, 1/4 NC x 1/2 inch, cup point

1шт.

5

REF

INSTRUCTION

JACKSHAFT - digging drive chain, 1 inch (25 mm) continuous OD, order H433652 jackshaft (Ref. 6) and H433651 sprocket (Ref. 22) for service

1шт.

6

H433652

SHAFT

JACKSHAFT - digging drive chain, partial 1 inch (25 mm) OD with 7/8 inch (22 mm) OD at sprocket

1шт.

H435858

BEARING ASSY

BEARING ASSEMBLY - ball, with collar, jackshaft, Includes: Ref. 7 - 9

2шт.

7

NSS

NOT SOLD SEPARAT

BEARING - ball, jackshaft

1шт.

8

NSS

NOT SOLD SEPARAT

SCREW - set, collar

1шт.

9

NSS

NOT SOLD SEPARAT

COLLAR - lock

1шт.

10

T28259

FLANGE

- bearing

4шт.

11

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

3шт.

12

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

3шт.

13

193-95

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

6шт.

14

H426775

WASHER

- flat, 5/16 inch bolt size, hardened, plated

6шт.

15

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16 inch NC

6шт.

16

H331744

COVER

- bearing, round plate

1шт.

17

H351049

BRACKET

PLATE - bearing mounting, if used

1шт.

18

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

19

195-521

WASHER,5/16", SAE

- flat, 11/32 x 11/16 x 1/16 inch

12шт.

20

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16 inch NC

4шт.

21

H426775

WASHER

- flat, 5/16 inch bolt size, hardened, plated

2шт.

22

REF

INSTRUCTION

SPROCKET - chain drive, 1 inch (25 mm) ID, order H433652 jackshaft (Ref. 6) and H433651 sprocket (Ref. 22) for service

1шт.

22

H433651

DRIVE ASSY.

SPROCKET - chain drive, 7/8 inch (22 mm) ID

1шт.

23

H380055

KEY

- square, 1/4 x 7/8 inch

1шт.

24

85-48

SET SCREW,Sq Hd, 1/4"-20 x 1/2"

SCREW - set, square head, 1/4 NC x 1/2 inch, cup point

1шт.

25

181-18

SET SCREW,Sq Hd, 1/4"-20 x 3/4"

SCREW - set, square head, 1/4 NC x 3/4 inch, cone point

1шт.
